GA24-562 | Actuator | Non Spring Return | 24V | 562 In-Lbs | Bray

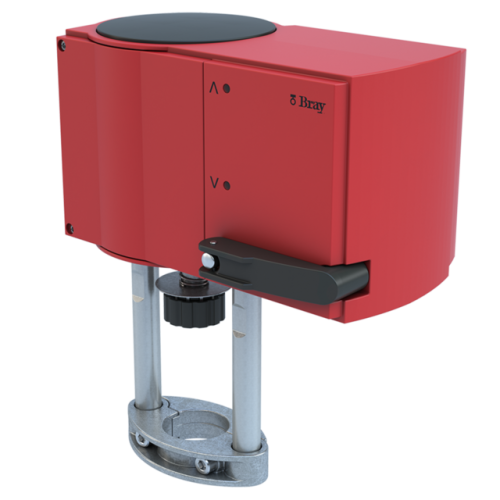

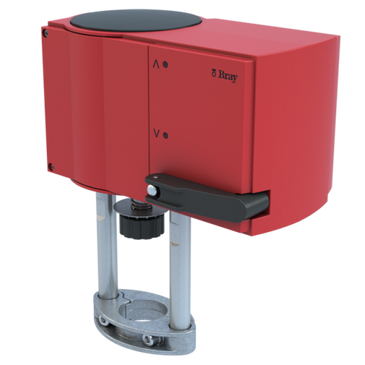

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GA24-562
Documents and manuals
Bray GA24-562 Documents
Overview
Details for GA24-562
Actuator | Non Spring Return | 24V | 562 In-Lbs
Description:
Bray GA24-562 Actuator Features:
- 562 In-Lbs.
- 24 VAC / VDC.
- Non-failsafe.
- On/Off, floating and modulating.
- On/Off, floating and modulating.
- IP66 enclosure.
- Manual override with external crank.
The Bray GA(S) series is a direct mount line of linear motor actuators to be used primarily on PIC and globe valves. The patented drive-valve coupling allows the drive to be connected to the valve automatically as soon as the power is applied to the actuator. An external crank handle enables the desired position to be set manually as well. Microprocessor technology enables the actuator to identify the functions required and to adapt itself automatically to the control valve properties.
These actuators operate on 24V AC or DC, and all input signals- 0-10V or 4-20mA modulating output, or On/Off (2-point) or Floating (3-point) control. The actuator automatically detects the control signal applied via a 2 LED display. These actuators operate both 2 and 3-way valves and are available in non-spring return (GA) and spring return (GAS) versions.
The GA(S) series is bi-directional, selectable via screw terminals.
- Actuator Power:24V
- Return Position:Non-Spring Return
Specifications
- Product
- GA24-562
- Actuator Control Signal
- Floating | Modulating | On/Off
- Actuator Action
- Non Spring Return
- Actuator Features
- Enclosed Terminal Strip | Time Out
- Actuator Power Supply
- 24 VAC
- Area Classification
- IP66
- Torque Imperial
- 562
- Actuator Stroke Time
- Dip Switch Adjustable- 51 Sec/inch, 2 Sec/mm; 102 Sec/inch, 4 Sec/mm; 153 Sec/inch, 6 Sec/mm
- Conduit Connection
- Knock Out - M20×1.5 (2×) and M16×1.5
- Weight Lbs
- 9.1
