Documents: 3LNE-25S31/D24-210-WS
3LNE-25S31/D24-210-WS | 2.5" 3-Way Lugged Butterfly Valve Resilient | ANSI Class 125/150 | DI body | NDI Disc | CV 185 | Damper & Valve actuator | 24 Vac/dc | 210 lb-in | on/off or floating | Non-Spring Return | Bray
2.5 inch 3-Way Lugged Butterfly Valve Resilient Seated | ANSI Class 125/150 | DI body | NDI Disc | CV 185 | | Damper & Valve actuator | 24 Vac/dc | 210 lb-in | on/off or floating | Non-Spring Return | Weather Shield for D-140 & D-210 & D-280 Actuator

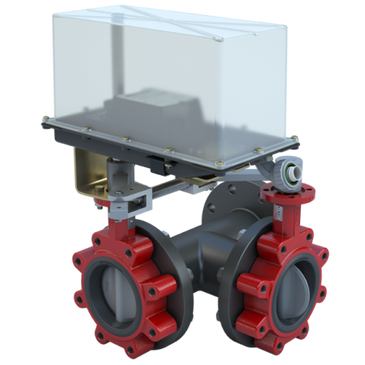

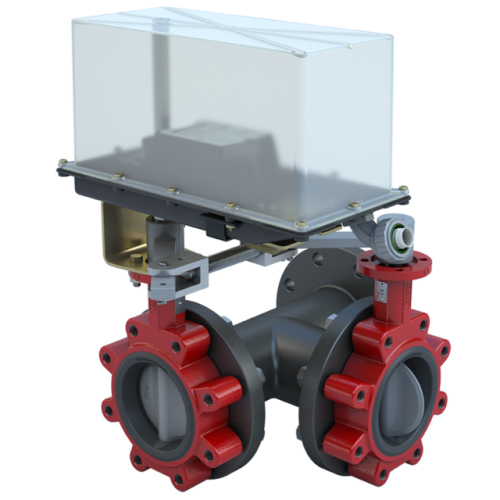

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3LNE-25S31/D24-210-WS
Overview Details for 3LNE-25S31/D24-210-WS
Specifications
- Product
- 3LNE-25S31/D24-210-WS
- Valve Size
- 2.5"
- 2-Way / 3-Way
- 3-Way
- Valve Product Type
- Butterfly Valve
- Valve Position
- Master N.C. Left/Slave N.O. Branch (1)
- Valve End Connection
- ANSI Class 150 Lugged
- Assembly Cv
- 185
- Actuator Control Signal
- On/Off;Floating
- Actuator Action
- Non Spring Return
- Fail Position
- Fail Last
- Actuator Power Supply
- 24 VAC/DC
- Actuator Conduit Connection
- 1/2" NPT
- Actuator Area Classification
- IP42;NEMA 2
- Close Off Pressure
- 175
- Weight
- 59.9
