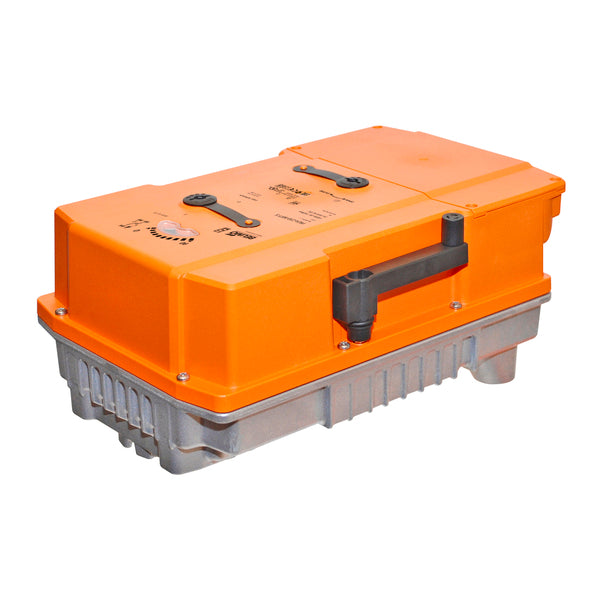

PRXUP-MFT-T | Valve Actuator | Non-Spring | 24-240V | MFT | Belimo

SKU: PRXUP-MFT-T Brand: Belimo Condition: New Sale price Compare at $4,797.00

Regular price $1,798.88
FREE
SHIPPING

Details

Belimo part#: PRXUP-MFT-T


FREE SHIPPING ON ALL BELIMO PRODUCTS! (some exceptions apply)

Valve Actuator | Non-Spring | 24-240V | MFT

PRXUP-MFT-T

Modulating, Non Fail-Safe, 24-240 V, NEMA 4X with BACnet

Application

PR Series valve actuators are designed with an integrated linkage and visual position indicators. For outdoor applications, the installed valve must be mounted with the actuator at or above horizontal. For indoor applications the actuator can be in any location including directly under the valve.

Operation

The PR series actuator provides 90° of rotation and a visual indicator shows the position of the valve. The PR Series actuator uses a low power consumption brushless DC motor and is electronically protected against overload. A universal power supply is furnished to connect supply voltage in the range of 24-240 VAC and 24-125 VDC. Included is a smart heater with thermostat to eliminate condensation. Two auxiliary switches are provided; one set at 10° open and the other is field adjustable. Running time is field adjustable from 30-120 seconds by using the Near Field Communication (NFC) app and a smart phone.

†Use 60°C/75°C copper wire size range 12-28 AWG, stranded or solid. Use flexible metal conduit. Push the listed conduit fitting device over the actuator’s cable to butt against the enclosure. Screw in conduit connector. Jacket the actuators input wiring with listed flexible conduit. Properly terminate the conduit in a suitable junction box. Rated impulse Voltage 4000V. Type of action 1. Control pollution degree 3.

Power Supply 24...240 VAC, -20% / +10%, 50/60 Hz,
24...125 VDC, -20% / +10%
Power consumption in operation 20 W
Power consumption in rest position 6 W
Transformer sizing 20 VA @ 24 VAC/DC (class 2 power source),
23 VA @ 120 VAC/DC, 52 VA @ 230 VAC
Electrical Connection Terminal blocks, (PE) Ground-Screw
Overload Protection electronic thoughout 0° to 90° rotation
Operating Range DC 2...10 V (default), 4...20 mA, variable (VDC, on/off, floating point)
Operating range Y variable Start point DC 0.5...30 V
End point DC 2.5...32 V
Input Impedance 100 kΩ for DC 2...10 V (0.1 mA), 500 Ω for 4...20 mA, 1500 Ω for On/Off
Position Feedback DC 2...10 V, Max. 0.5 mA, VDC variable
Angle of rotation 90°
Torque motor 1400 in-lb [160 Nm]
Direction of rotation motor reversible with app
Position indication top mounted domed indicator
Manual override 7 mm hex crank, supplied
Running Time (Motor) default 35 s, variable 30...120 s
Ambient humidity max. 95% r.H., non-condensing
Ambient temperature -22...122°F [-30...50°C]
Storage temperature -40...176°F [-40...80°C]
Degree of Protection IP66/67, NEMA 4X, UL Enclosure Type 4X
Housing material Die cast aluminium and plastic casing
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC
Noise level, motor 68 dB(A)
Maintenance maintenance-free
Quality Standard ISO 9001
Weight 13 lb [5.8 kg]
Auxiliary switch 2 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, one set at 10°, one adjustable 0...90°
Communication BACnet MS/TP
Passive Sensor Inputs 2 (PT1000) (NI1000) (NTC)
