NKQB24-SR | Damper Actuator | 54 in-lb | Electronic FS | 24V | Modulating | Belimo
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: NKQB24-SR

Web Price:

$565.65
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

NKQB24-SR | Damper Actuator | 54 in-lb | Electronic FS | 24V | Modulating | Belimo

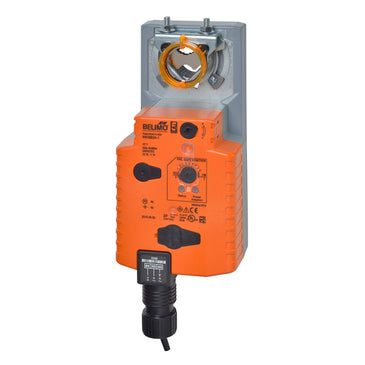

Damper Actuator, 54 in-lb [6 Nm], Electronic fail-safe, AC/DC 24 V, 2...10 V, modulating

Belimo | NKQB24-SR
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NKQB24-SR

Documents and manuals

Belimo NKQB24-SR Documents

Overview

Details for NKQB24-SR

Damper Actuator | 54 in-lb | Electronic FS | 24V | Modulating

Application

For fail-safe, proportional control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifi cations. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2 to 10 VDC or, with the addition of a 500 resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication. Not to be used for a master-slave application.

Operation

The NKQ..24-SR actuator provides 95° of rotation and a visual indicator shows the position of the actuator. When reaching the damper or actuator end position the actuator automatically stops. The gear can be manually disengaged by pressing the black button located on the actuator cover. The NKQ..24-SR actuators use a brushless DC motor, which is controlled by an Application Specifi c Integrated Circuit (ASIC). The ASIC monitors and controls the actuators rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in a holding mode. The actuator is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement. Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.

Fail-Safe Indication

LED status indicator lights sequence:

Yellow off / Green on: operation ok, no faults

Yellow off / Green blinking: fail-safe mechanism is active

Yellow on / Green off: fault is detected

Yellow off / Green off: not in operation / capacitors charging

Yellow on / Green on: adaption running


Specifications

Actuator Type
Electrical fail-safe
Angle of Rotation
95
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Direction of Rotation (Fail-Safe)
Reversible with switch
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
3 W
Power Consumption (Running)
11 W
Running Time (Fail-safe)
<4 s
Running Time (Motor)
4 s / 90B0
Safety Function
YES
Torque
54 in-lb [6 Nm]
Voltage AC/DC
AC/DC 24 V
