GKX24-3-T N4 | Damper Actuator | 360 in-lb | Electronic FS | 24V | On/Off/Floating Point | NEMA 4 | Belimo

Configurable Damper Actuator, 360 in-lb [40 Nm], Electronic fail-safe, AC 24 V, On/Off, Floating point, NEMA 4X, terminals

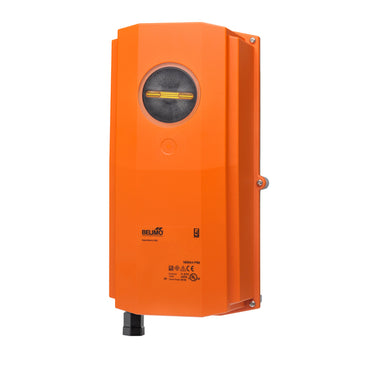

Belimo | GKX24-3-T N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GKX24-3-T N4
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo GKX24-3-T N4 Documents

Datasheet Installation Instructions More Info

Overview

Details for GKX24-3-T N4

Damper Actuator | 360 in-lb | Electronic FS | 24V | On/Off/Floating Point | NEMA 4

The thermostat senses the temperature in the actuator housing and switches the connected heating system on when the temperature falls below the one that has been set. This prevents the formation of condensation on assemblies and electronic components, even in the presence of frequent and severe temperature fluctuations. The heating elements is designed for continuous operation.

Specifications

Actuator Type
Electrical fail-safe
Angle of Rotation
95
Control Type
Floating/3-point
Degree of Protection
IP66 NEMA 4X UL Enclosure Type 4X
Direction of Rotation (Fail-Safe)
Reversible with switch
Electrical Connection
terminals
Manual Override
External push button
Power Consumption (Holding)
3 W
Power Consumption (Running)
11 W
Running Time (Fail-safe)
<35 s
Running Time (Motor)
150 s / 90B0
Running Time range (Motor)
90 or 150 s
Safety Function
YES
Torque
360 in-lb [40 Nm]
Voltage AC/DC
AC 24 V
