FSLF120 US | Fire & Smoke Actuator | 30 in-lb | Spg Rtn | 120V | On/Off | 1m Cable | Belimo

Fire & Smoke Actuator, 30 in-lb [3.5 Nm] from 32...350°F [0...177°C], Spring return, AC 120 V, On/Off

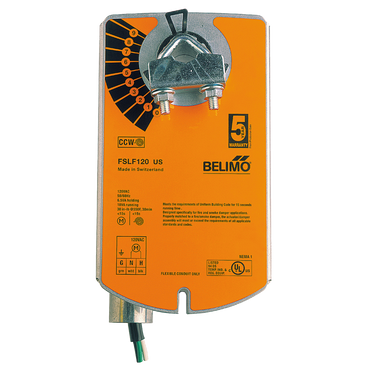

Belimo | FSLF120 US
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FSLF120 US

Documents and manuals

Belimo FSLF120 US Documents


Details for FSLF120 US

Fire & Smoke Actuator | 30 in-lb | Spg Rtn | 120V | On/Off | 1m Cable


The type FSLF spring-return actuator is intended for the operation of smoke and combination fire and smoke dampers in ventilation and air-conditioning systems. The actuator will meet requirements of UL555 and UL555S when tested as an assembly with the damper and will meet requirements of UBC for 15 second opening and closing. Square footage of damper operated will depend on make and model and the temperature required.

IMPORTANT 24VDC NOTE: The FSLF24 & -S models will not operate below 24VDC. A filtered and regulated power supply must be used.


Mounting of the actuator to the damper axle shaft or jackshaft is via a cold-weld clamp. Teeth in the clamp and V-bolt dig into the metal of both solid and hollow shafts maintaining a perfect connection. The specially designed clamp will not crush hollow shafts. The bottom end of the actuator is held by an anti-rotation strap or by a stud provided by the damper manufacturer.

The actuator is mounted in its fail safe position with the damper blade(s) closed. Upon applying power, the actuator drives the damper to the open position. The internal spring is tensioned at the same time. If the power supply is interrupted, the spring moves the damper back to its fail-safe position.


Actuator Type
Spring return
Angle of Rotation
Control Type
Degree of Protection
IP30 NEMA 1 UL Enclosure Type 1
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
Running Time (Fail-safe)
<15 s
Running Time (Motor)
15 s / 90B0
Safety Function
30 in-lb [3.5 Nm] from 32...350B0F [0...177B0C]
Voltage AC/DC
AC 120 V
