Industrial Modbus TCP (two Ethernet port) to four Serial (232,422,485) RTU/ASCII Gateway with extended operating temperature

Brand: AntairaSKU: STM-604C-T

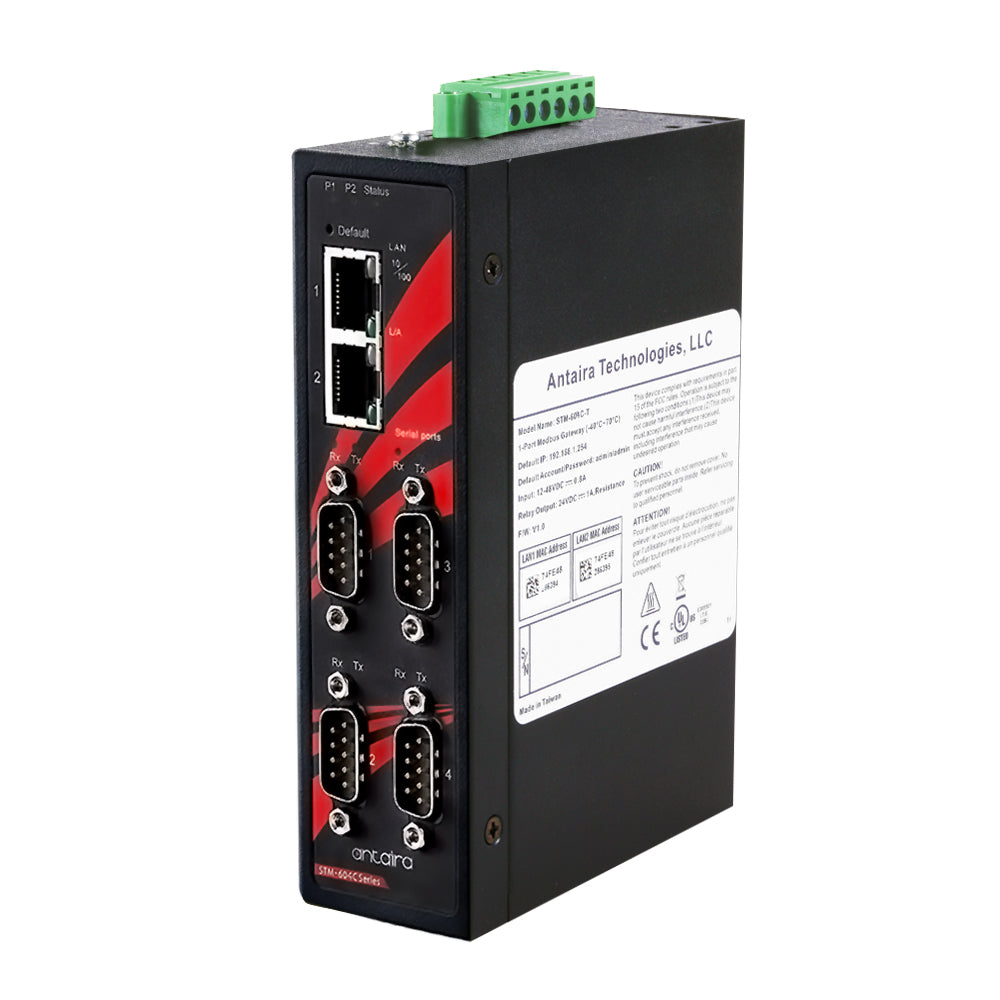

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to STM-604C-T

Jump to: Overview & Specifications Reviews

Overview Details for STM-604C-T

Industrial Modbus TCP (two Ethernet port) to four Serial (232 | 422 | 485) RTU/ASCII Gateway with extended operating temperature

The STE-604C-T is a Modbus gateway that is a bi-directional device for connecting new and existing Modbus/RTU or ASCII serial devices to newer Modbus/TCP devices. The STE-604C-T features two independent Ethernet ports with separate MAC addresses providing the ability for redundancy and reliability through multiple data paths. Master or slave mode can be selected on the serial port, allowing an Ethernet master to control serial slaves or allow serial masters to control Ethernet slaves. The STE-604C-T meets tough industrial standards to provide a cost-effective way of integrating Modbus TCP and Modbus ASCII/RTU devices to communicate with each other. This model has an extended operating temperature range -40° to 70°C.

Features

2*10/100 Mbps Ethernet Ports for LAN Redundancy
Integrates Modbus TCP and Modbus RTU/ASCII Networks
Supports Up to 921.6 kbps and Any Baud Rate Setting
Supports Up to 16 Connections per Serial Port Under Modbus Master Mode and 32
Sessions Under Modbus Slave Mode
Software-selectable RS-232/422/485 Communication
Automatic RS-485 Data Flow Control
Redundant Power Input: 12~48VDC
Power Polarity Reverse Protection
Overload Current Protection
DIN-Rail or Wall Mountable
Wide Temperature Model
5-Year Warranty

Included

DIN-Rail and Wall Mounting Brackets with Screws
Quick Installation Guide
STM-604C-T

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Baud Rate: 50 bps ~ 921.6 kbps, any baud rate setting
Configuration: Windows Utility, Telnet Console, Web Browser
Data Bits: 5, 6, 7, 8
Dimensions: 55 x 140 x 95 mm (2.17" x 5.51" x 3.74")
EMC: CE, FCC Part 15 Subpart B (Class A)
Ethernet Port: 2 with independent IP and MAC addresses
Ethernet Port: 2*10/100T(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: XON/XOFF, RTS/CTS
Green: RoHS Compliant
Hazardous Location: UL/cUL (Class 1, Division 2, Groups A, B, C and D)
Housing: Metal with solid mounting hardware
Input Voltage: 12 to 48VDC, Redundant Inputs
LED Indicators: Link / Act
LED Indicators: System: Power, System Status;LAN: Speed, Link/Active;Serial: Tx, Rx
Mounting: DIN-Rail Mounting, Wall Mounting
Operating Temperature: -40° ~ 70°C
Operation Mode: Modbus RTU Master/Slave mode;Modbus ASCII Master/Slave mode
OS Support: 32-bit/64-bit Windows XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2008 R2/2012/2012 R2
Overload Current Protection: Present
Parity: None, Odd, Even, Space, Mark
Port Type: RS-232/422/485, software selectable
Power Connection: Terminal block
Power Consumption: 3.2 W
Processing Type: Store and Forward
Protection: 15 KV ESD for all signals
Protocols: CSMA/CD
Protocols: ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP
Reboot Trigger: Built-in WDT (watchdog timer)
Reverse Polarity Protection: Present
Serial Ports: 4 - DB9 male
Serial Signals: RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND;RS-422: TxD+, TxD-, RxD+, RxD-, GND;RS-485: Data+, Data-, GND
Standards: IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet
Stop Bits: 1, 2
Storage Temperature: -40° ~ 85°C
Utility Software: Antaira Device Configuration Utility
Warranty: 5 Years
Weight: 1.22 lbs (0.555 kg)
