HDR-15-24 | 15 Watt Series / 24 VDC / 0.63 Amp Industrial Single Output DIN Rail Power Supply | Antaira

15 Watt Series / 24 VDC / 0.63 Amp Industrial Single Output DIN Rail Power Supply

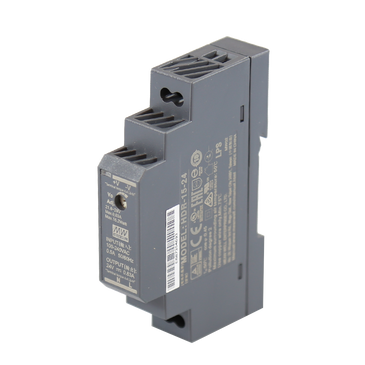

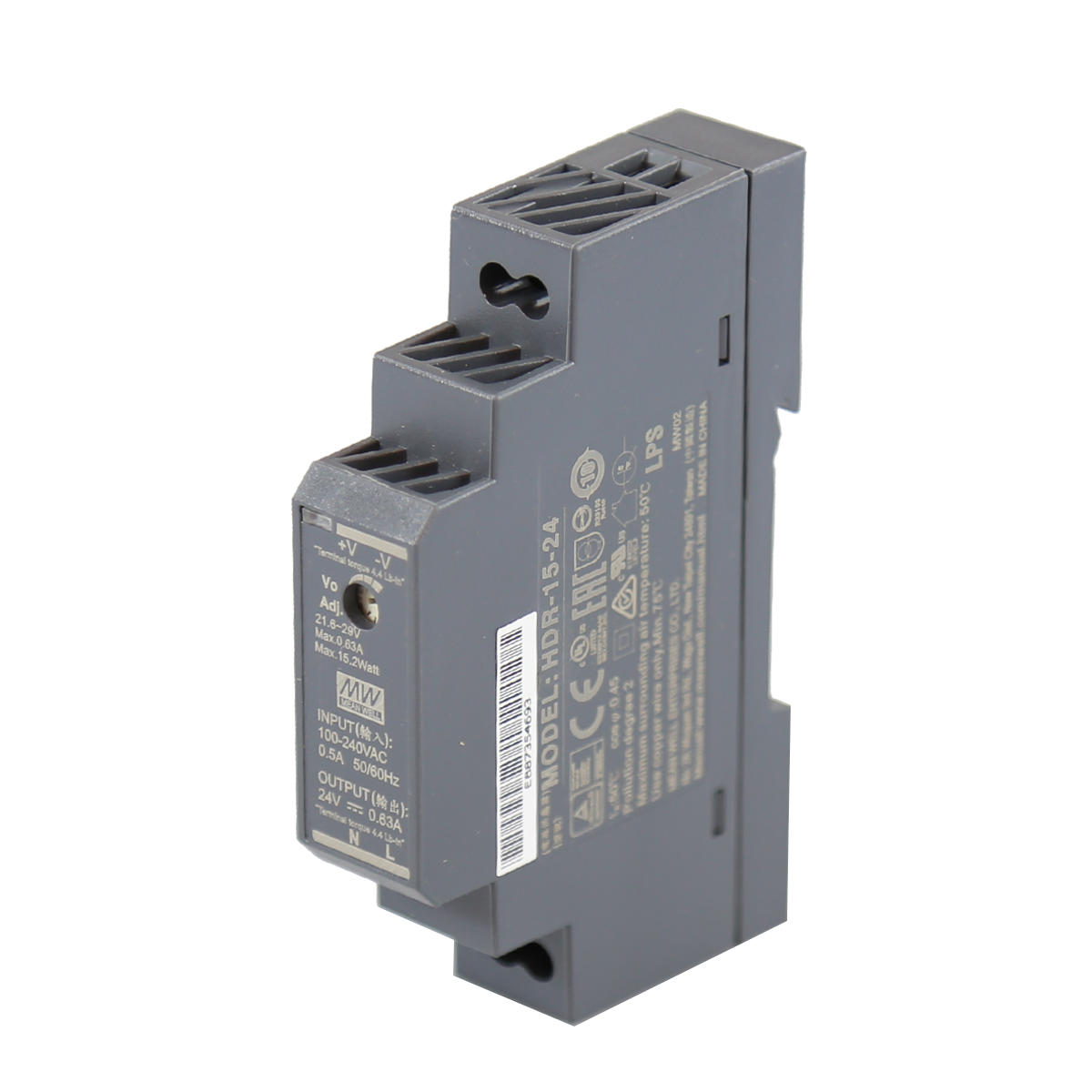

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HDR-15-24

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Antaira HDR-15-24 Documents

Product Datasheet More Info

Overview

Details for HDR-15-24

15 Watt Series / 24 VDC / 0.63 Amp Industrial Single Output DIN Rail Power Supply

The HDR-15 DIN rail power supply series provides a 15 Watt solution. It can be installed on DIN rail TS-35/7.5 or 15. Standard protections include short circuit, overload, over voltage, and over temp protection. LED indicators are provided for power on.

Features

Ultra slim design with 17.5mm (1SU) width
Universal input 85~264VAC (277VAC operational)
No load power consumption <0.3W
Isolation class II
Pass LPS (limited power source)
DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
DIN-Rail mountable
Over voltage category III
LED indicator for power on
3-year warranty

Included

HDR-15-24

Specifications

AC Current: 0.5A/115VAC;0.25A/230VAC
Current Range: 0 ~ 0.63A
DC Voltage: 24V
EMC Emission: EN55032 (CISPR32), CNS13438;EN61000-3-2;EN61000-3-3
EMC Immunity: EN61000-4-2;EN61000-4-3;EN61000-4-4;EN61000-4-5;EN61000-4-6;EN61000-4-8;EN61000-4-11
Hold Up Time: 30ms/230VAC;12ms/115VAC at full load
Inrush Current: COLD START 25A/115VAC;45A/230VAC
Operating Humidity: 20 ~ 90% RH non-condensing
Operating Temperature: -30°C to 70°C
Over Voltage Protection: 30 ~ 36V
Overload Protection: 110 ~ 145% rated output power
Rated Current: 0.63A
Rated Power: 15.2W
Safety Standards: UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV EN60950-1
Setup, Rise Time: 2000ms, 80ms/230VAC;2000ms, 80ms/115VAC at full load
Storage Humidity: 10 ~ 95% RH non-condensing
Storage Temperature: -40°C to 85°C
Voltage Range: 85 ~ 264VAC (277VAC operational);120 ~ 370VDC (390VDC operational)
Warranty: 3-year warranty
Withstand Voltage: I/P-O/P:4KVAC
