1-Port RS-232/422/485 To Ethernet Device Server

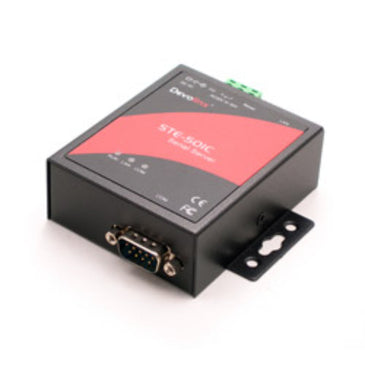

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to STE-501C
Documents and manuals
Antaira STE-501C Documents
Overview
Details for STE-501C
1-Port RS-232/422/485 To Ethernet Device Server
The STE-501C is a single port gateway between Ethernet (TCP/IP) and Serial signal communications. It allows almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, the STE-501C offers full-duplex, bi-directional data transmission transparent between serial port and Ethernet network. Capable of using either RS232, RS422 or RS485 serial communication standards the STE-501C is ideal for upgrading industrial serial devices onto a Ethernet network.Features
- Rugged Metal Case with DIN-Rail / Wall-Mount
- 15 KV ESD Protection for Serial Signals
- 10/100Mbps Fast Ethernet Full Duplex Auto Negotiation
- Supports Multiple Link Mode with TCP Server/Client, UDP, and Virtual COM Mode
- Monitor, Manage, and Control Industrial Field Devices Remotely
- Configurable via Built-in Web Server, Serial Console, or Telnet
- Windows Based Utility for IP Configuration
- Upgradeable Firmware from Remote-PC via Ethernet
Included
- CD Manual/Software
- Quick Start Guide
- STE-501C
Specifications
- Approvals
- FCC, CE
- CPU
- 16-bit Embedded CPU
- Data Bits
- 7 or 8 Data Bits
- Data Rate
- 1200 ~ 230400 bps (230 Kbps)
- Dimensions
- 65 x 80 x 28 mm (2.56 x 3.15 x 1.10 inches)
- EEPROM
- 512 Bytes
- Flash Memory
- 512 KBytes
- Flow Control
- Xon/Xoff, RTC/CTS
- Led Displays
- LAN, RUN, and COM
- Management
- Web, Telnet, Serial Console, and Windows Based Utility
- Network Interface
- 10/100Mbps Fast Ethernet
- Operating Humidity
- 20% to 90% (Non-Condensing)
- Operating Temperature
- 0° C to 60° C (32° F to 140° F)
- Parity
- None, Even, Odd, Mark, Space
- Power
- 9 ~ 30VDC
- Power Consumption
- 3 Watts
- Protocols
- TCP/IP, UDP, HTTP, SNMP, ARP, Telnet, ICMP, BOOTP, DHCP
- SDRAM
- 512 KBytes
- Serial Connector
- DB9 Male
- Serial Interface
- RS-232/422/485
- Software
- Windows OS Based Configuration Utility, Virtual COM Software
- Stop Bits
- 1 or 2
- Storage Temperature
- -20° C to 85° C (-4° F to 185° F)
- Warranty
- 5-year Warranty
