STE-6104C-T-V2 | 4-Port Industrial Serial RS232/422/485 to Ethernet Device Server | with Dual LAN; EOT: -40°C to 85°C; Version 2 Hardware | Antaira

4-Port Industrial Serial RS232/422/485 to Ethernet Device Server, with Dual LAN; EOT: -40°C to 85°C; Version 2 Hardware

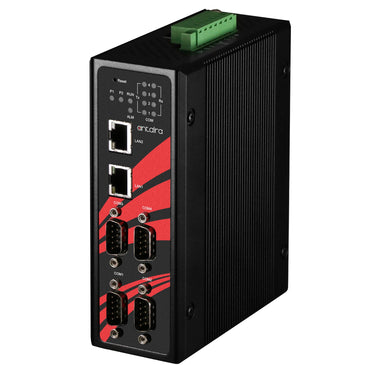

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to STE-6104C-T-V2

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira STE-6104C-T-V2 Documents

Product Datasheet Product Manual Quick Installation Guide Utility VirtualCom Software More Info

Overview

Details for STE-6104C-T-V2

4-Port Industrial Serial RS232/422/485 to Ethernet Device Server | with Dual LAN; EOT: -40°C to 85°C; Version 2 Hardware

Antaira Technologies’ STE-6104C-T-V2 is a 4-port industrial gateway between Ethernet (TCP/IP) and serial communications. It allows almost any serial device RS232/422/485 to be connected to a new or existing Ethernet network. The STE-6104C-T-V2 supports server management options such as web based, Telnet, Serial console and Windows Utility. This industrial serial device has an extended operation temperature from -40°C to 85°C and can be mounted with DIN-Rail (included) or wall mount (sold separately). With its high-speed data rates of up to 921kbps, the STE-6104C-T-V2 is an ideal solution for expanding or upgrading serial RS232, RS422, or RS485 devices onto an Ethernet network.

Features

Dual 10/100Mbps Fast Ethernet for Redundancy
4-Port RS232/422/485, Baud Rate up to 921 Kbps
15KV ESD Protection for Serial Signals
Rigid IP30 Metal Housing
RAW TCP Server/TCP Client/UDP/Virtual COM/Tunneling Modes
Built-in Web Server/Serial Console/Telnet/Windows-based Utility
Monitor, Manage, and Control Industrial Field Devices Remotely
DIN-Rail and Wall Mount Support
Extended Operating Temperature: -40°C to 85°C
5-Year Warranty

Included

Product CD
Quick Installation Guide
STE-6104C-T-V2

Specifications

Certifications: FCC, CE, UL 61010-1, 61010-2-201
Configuration: Management Utility, Web UI, Telnet
Dimensions: 55 x 145 x 113 mm (W x H x D)
EMC: FCC Part 15, Subpart B, Class A;EN55032, 55024, 61000-3-2, 61000-3-3, 61000-6-2, 61000-6-4
EMS: EN 61000-4-2 (ESD) Level 4;EN 61000-4-3 (RS) Level 3;EN 61000-4-4 (EFT) Level 3;EN 61000-4-5 (Surge) Level 3;EN 61000-4-6 (CS) Level 3;EN 61000-4-8 (PFMF) Level 3;EN 61000-4-11 (DIP)
Ethernet Connector: RJ45
Ethernet Port: 2 Ports
Free Fall: IEC60068-2-32
Housing: IP30 Rated
LAN Mode: Dual Subnets or RSTP Redundancy
LED Indicators: P1, P2, RUN, ALM, COM, LAN
Mounting: DIN-Rail mounting (included), Wall mounting (not included)
Operating Humidity: 5% to 95% (Non-condensing)
Operating Temperature: -40°C to 85°C
Power Connection: 7-pin removal terminal block
Power Consumption: Max. 8W
Power Input: 12 ~ 48VDC Redundant Input
Protocols: IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1, v2c, v3, HTTP, HTTPS, Telnet, SMTP/TLS, RFC2217, 802.1D-2004 RSTP, Security through PPTP, OpenVPN (client/server), IPsec (host-to-host/host-to-side), up to 37.9Mbps throughput
Relay Output: 1A @ 30VDC
Serial Communication: Data Rate: 300bps ~ 921.6kbps;Parity: None, Even, Odd, Mark, or Space;Data Bits: 7, 8;Stop Bits: 1, 2;Flow Control: None, Xon/Xoff, RTS/CTS
Serial Connector: DB9 Male
Serial Interface: RS232/422/485 Software Selectable
Serial Ports: 4 Ports
Shock: IEC60068-2-27
Standards: IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet
Storage Temperature: -40°C to 85°C
TCP Client: Single destination or Virtual COM Mode
TCP Server: Up to 4 connections or Virtual COM / Reverse Telnet Modes
UDP: Up to 4 Ranges of IP
USB Port: 1*USB Type A connector (USB 2.0)
Vibration: IEC60068-2-64
Virtual COM: Windows & Linux Port Redirection Software
Warranty: 5 Years
Weight: Unit: 2.20 lbs.;Shipping: 2.50 lbs.
