MSC-202A1 | 2-Port RS-232 PCI Express Card with Oxford Single Chip | Support Power Over Pin-9 | Antaira

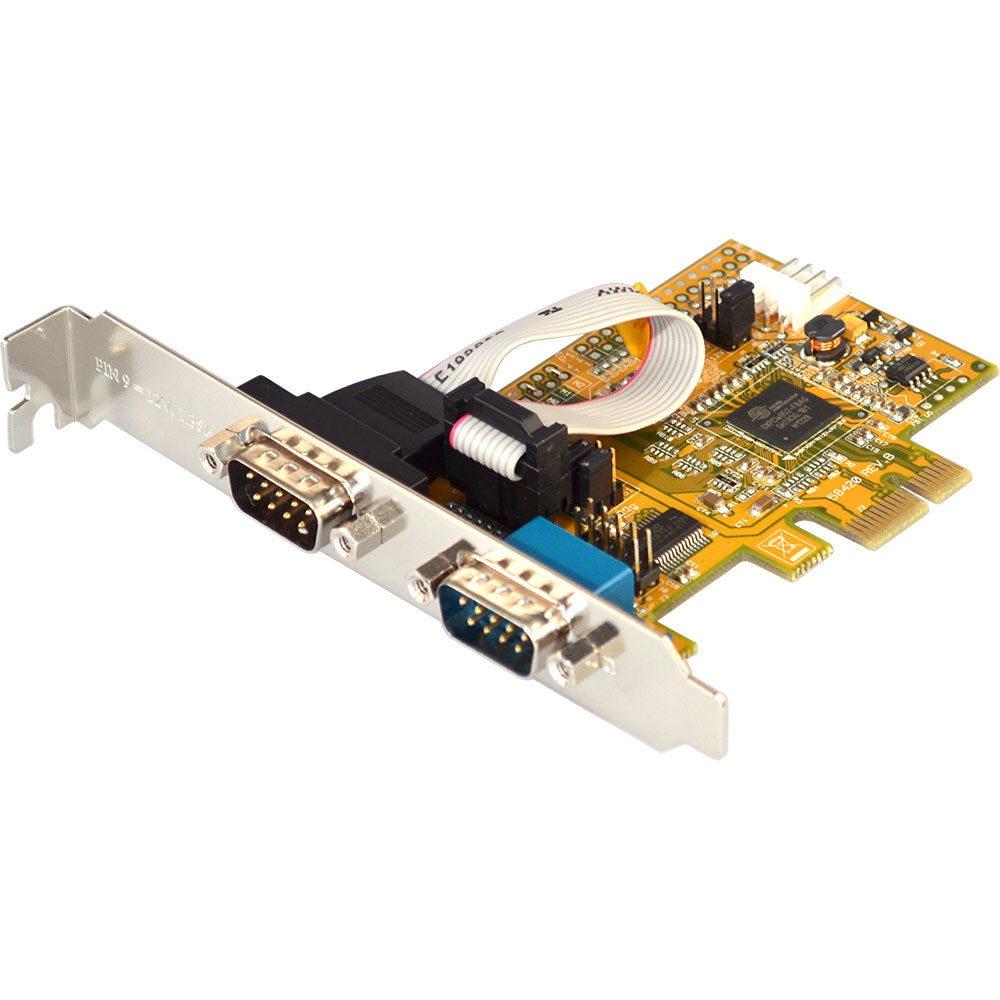

2-Port RS-232 PCI Express Card with Oxford Single Chip, Support Power Over Pin-9
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MSC-202A1
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira MSC-202A1 Documents
Overview
Details for MSC-202A1
2-Port RS-232 PCI Express Card with Oxford Single Chip | Support Power Over Pin-9
Antaira Technologies MSC-202A1 PCI Express I/O adapter provides 2 high performance 16C950-type UART compatible RS232 serial card expansion ports. Featuring a 1-chip solution for the PCI Express board to help increase throughput and reduce the CPU loading. The single chip is also able to support power over pin-9. The MSC-202A1 can provide added serial ports for a client, or server application to provide instant COM port expansion via the PCI Express Bus (PCIE). PCI Express provides a scalable, high-speed, serial I/O bus that maintains backward compatibility with PCI applications and drivers. The MSC-202A1 two ports RS-232 architecture defines a high-performance, point-to-point, scalable, serial bus at speed of 250Mbytes/sec to 4GBytes/sec (and 8Gbytes/sec in the future). The card is fully PCI Express Plug-and-Play compatible and no IRQ and I/O address conflict problems. The MSC-202A1 provides the scalability to quickly adapt to new PCI Express technologies. It allows you to add multiple serial port connectivity as needed through a single PCI-E serial card.Features
- 1-Chip Solution for Increased Throughput & Reduced CPU Loading, as Opposed to Current 2-Chip Solution
- Full x1 PCI Express Throughput, 250Mbytes/sec
- Works in 5V and 3.3V Tolerance Options
- Fully Compliant with PCI Express Base Specifications, Revision 1.1
- PCI Express Advanced Error Reporting Capability Including ECRC Support
- 2 Fully 16C950 High performance UART channels
- UARTs Fully Compatible with 16C550-type Devices
- Baud Rate up to 921.6Kbps
- 128-byte deep FIFO per transmitter and receiver
- Detection of Bad Data in the Receiver FIFO
- 9-bit Data Framing, as well as 5,6,7 and 8 bits
- Provides 5V or 12V Power over Serial Connectors
Included
- CD Drivers/Utilities
- MSC-202A1
- Quick Start Guide
Specifications
- Baud Rate
- Up to 921.6Kbps
- Data Bits
- 5, 6, 7, 8, 9-bit Data Framing
- Data Signal
- Automated out-of-band flow control using CTS#RTS# and/or DSR#DTR#
- Dimensions
- 4.72 x 2.60ö (12.00 x 6.60cm)
- FIFO
- 128-byte High Performance FIFO size
- Flow Control
- Automated in band flow control using programmable Xon/Xoff in both directions
- Host Controller
- Fully 16C550 and16C950 UART compatible
- Operating Humidity
- 10% to 90% relative humidity (non-condensing)
- Operating Temperature
- 0 to 55°C (32 to 131°F)
- OS Support
- Windows 95/98/Me, NT, 2000, XP, 2003, Vista, Windows 7, and Linux
- Power Over Serial
- Provides 5V or 12V over DB9 Connectors
- Serial Ports
- 2 x DB9-Male Connectors
- Storage Humidity
- 5% to 95% relative humidity (non-condensing)
- Storage Temperature
- -40 to 75°C (-40 to 167°F)
- System
- Fully Compliant with x1 PCI Express Base Specifications 1.1
