LNX-800A-T-CC | 8-Port Slim Industrial Ethernet Switch | w/8*10/100Tx; EOT: -40°C ~ 75°C | with Conformal Coating | Antaira
8-Port Slim Industrial Ethernet Switch, w/8*10/100Tx; EOT: -40°C ~ 75°C, with Conformal Coating

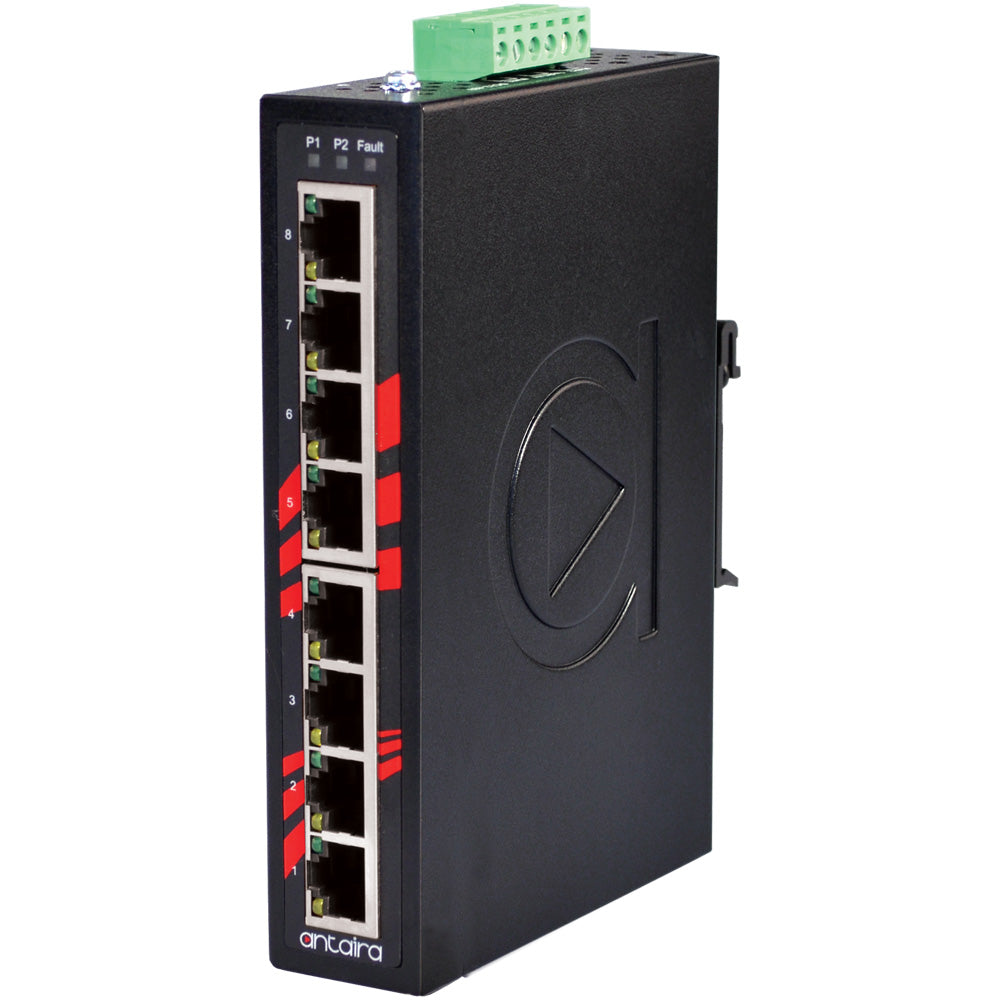

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-800A-T-CC
Documents and manuals
Antaira LNX-800A-T-CC Documents
Overview
Details for LNX-800A-T-CC
8-Port Slim Industrial Ethernet Switch | w/8*10/100Tx; EOT: -40°C ~ 75°C | with Conformal Coating
Antaira Technologies’ LNX-800A-T-CC industrial unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is designed with eight 10/100Tx Fast Ethernet ports that have auto detection support for MDI or MDI-X. The LNX-800A-T-CC industrial switch provide high EFT and ESD protection and the built-in relay warning function alerts maintainers when power failures or port breaks occur.Conformal coating is a specialty film which conforms to the contours of the printed circuit board to protect the board from adverse environmental conditions. Antaira’s conformal coating process meets or exceed the standards for protection against gases, dust, and water.The LNX-800A-T-CC industrial switch has an extended operating temperature range of -40° to 75°C. It is a perfectly designed product to fulfill special needs for industrial automation, outdoor applications, and harsh weather environments.Features
- Conformal Coating
- Extended Operating Temperature -40°~75°C (-40°~167°F)
- Store and Forward Switching Architecture
- Flow Control on Full-Duplex
- Back Pressure on Half-Duplex
- Supports Auto MDI/MDI-X Function
- Wide-Ranging Redundant Power Design
- UL Class I, Division 2 Certified
- DIN-Rail and Wall Mount Design
- Slim IP30 Case Design
Included
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
- 1 - Quick Installation Guide
- 1 - Set of wall mounting brackets and screws
- LNX-800A-T-CC
Specifications
- Back Plane
- 1.0Gbps
- Buffer
- 512Kbits
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201
- Corrosion Prevention
- IEC 60068-2-11, IEC 60068-2-52, IEC 60068-2-60;IPC-CC-830B, MIL-I-46058C, IEC 61086-2 (Class 2), UL 94, UL 746E;ISO 9223 (Class C5-Very High, Class GX-Severe);ANSI/ISA 71.04 (Class GX-Severe)
- Dimensions
- IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches)
- EMI
- FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4
- Ethernet Port
- 8 x 10/100TX RJ-45
- Fault Output
- 1 Relay Output
- Free Fall
- IEC 60068-2-32
- Humidity
- 5% ~ 95% non-condensing
- IEEE
- IEEE 802.3;IEEE 802.3u;IEEE 802.3x
- LED
- Port: Link/Activity, Full Duplex/Collision;Unit: Power1, Power2, Fault
- Mac Address Table
- 1K MAC Address Table
- Method
- Store and Forward
- Operating Temperature
- -40° ~ 75° C (-40° ~ 167° F)
- Power Consumption
- 3.84 Watts
- Power Input
- 12 ~ 48 VDC
- Power Redundancy
- Yes
- Protocols
- CSMA/CD
- Shock
- IEC 60068-2-27
- Storage Temperature
- -40° ~ 85° C
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
- Vibration
- IEC 60068-2-6
- Warranty
- 5 Years
