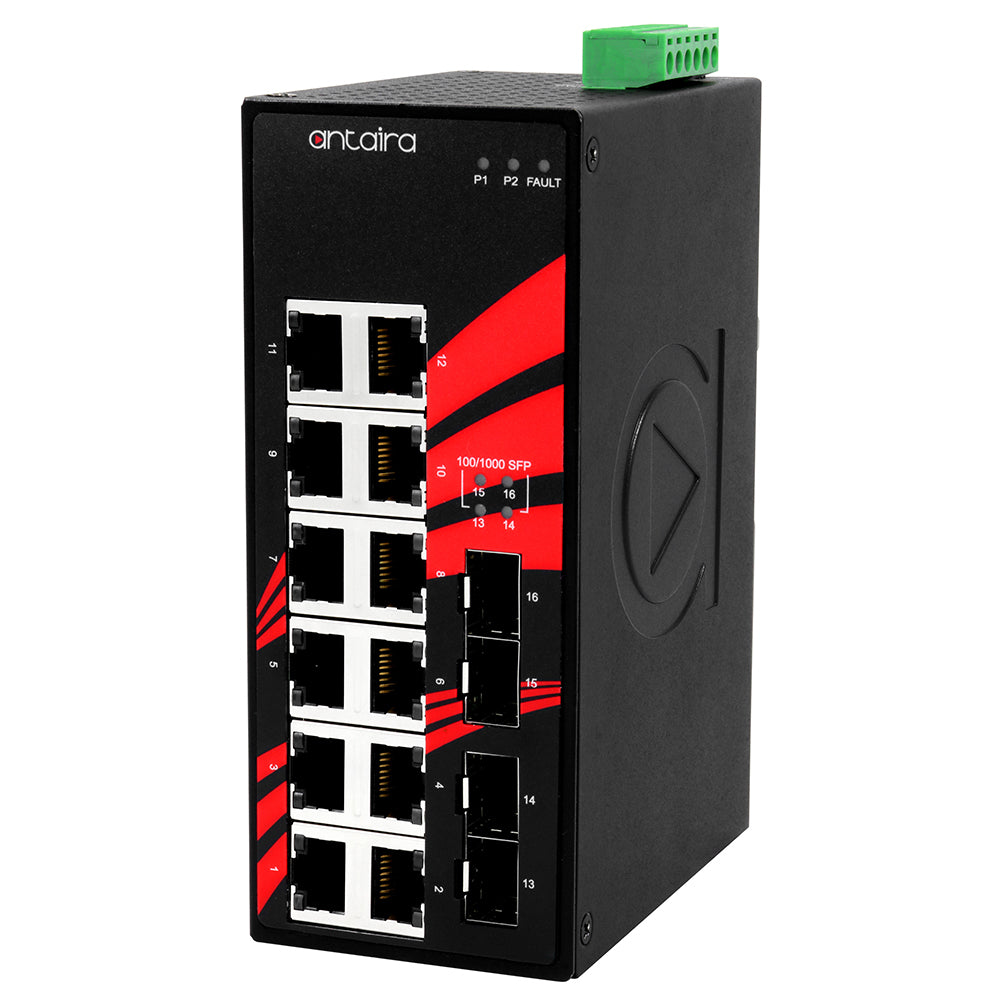

LNX-1604G-SFP | 16-Port Industrial Gigabit Unmanaged Ethernet Switch | w/12*10/100/1000Tx + 4*100/1000 SFP Slots | Antaira

16-Port Industrial Gigabit Unmanaged Ethernet Switch | w/12*10/100/1000Tx + 4*100/1000 SFP Slots

Antaira Technologies’ LNX-1604G-SFP industrial gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable. Each unit is designed with twelve gigabit Ethernet ports and four dual rate (100/1000) SFP slots for fiber connections, making it ideal for applications that demand high bandwidth and long distance communication; such as, power/utility, water wastewater treatment plants, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.This product series has a hardened design providing high EFT and ESD protection to prevent any unregulated voltage. It also has a dual power input support of 12~48VDC. There are two wide operating temperaturemodels to support either a -10 to 70 ̊C or - 40 to 75 ̊C environment.

Features

• Supports 12*10/100/1000Tx + 4*100/1000 SFP ports
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 8K MAC Address Table
• Jumbo Frame Support: 12.2K
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• Redundant Power Input Design: 12~48VDC
• Built-in 1 Relay Output for Power Failure Warning
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Operating Temperature Range: -10° to 70° C
• 5-Year Warranty

Included

• 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
• 1 - LNX-1604G-SFP
• 1- Quick Installation Guide
• 2 - Wall mounting brackets and screws
