LNX-1600-T | 16-Port Industrial Unmanaged Ethernet Switch | w/16*10/100Tx; EOT: -40°C ~ 75°C | Antaira

16-Port Industrial Unmanaged Ethernet Switch, w/16*10/100Tx; EOT: -40°C ~ 75°C

Brand: AntairaSKU: LNX-1600-T

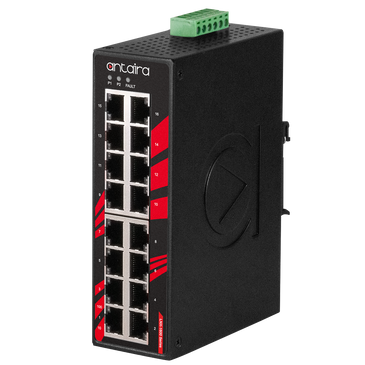

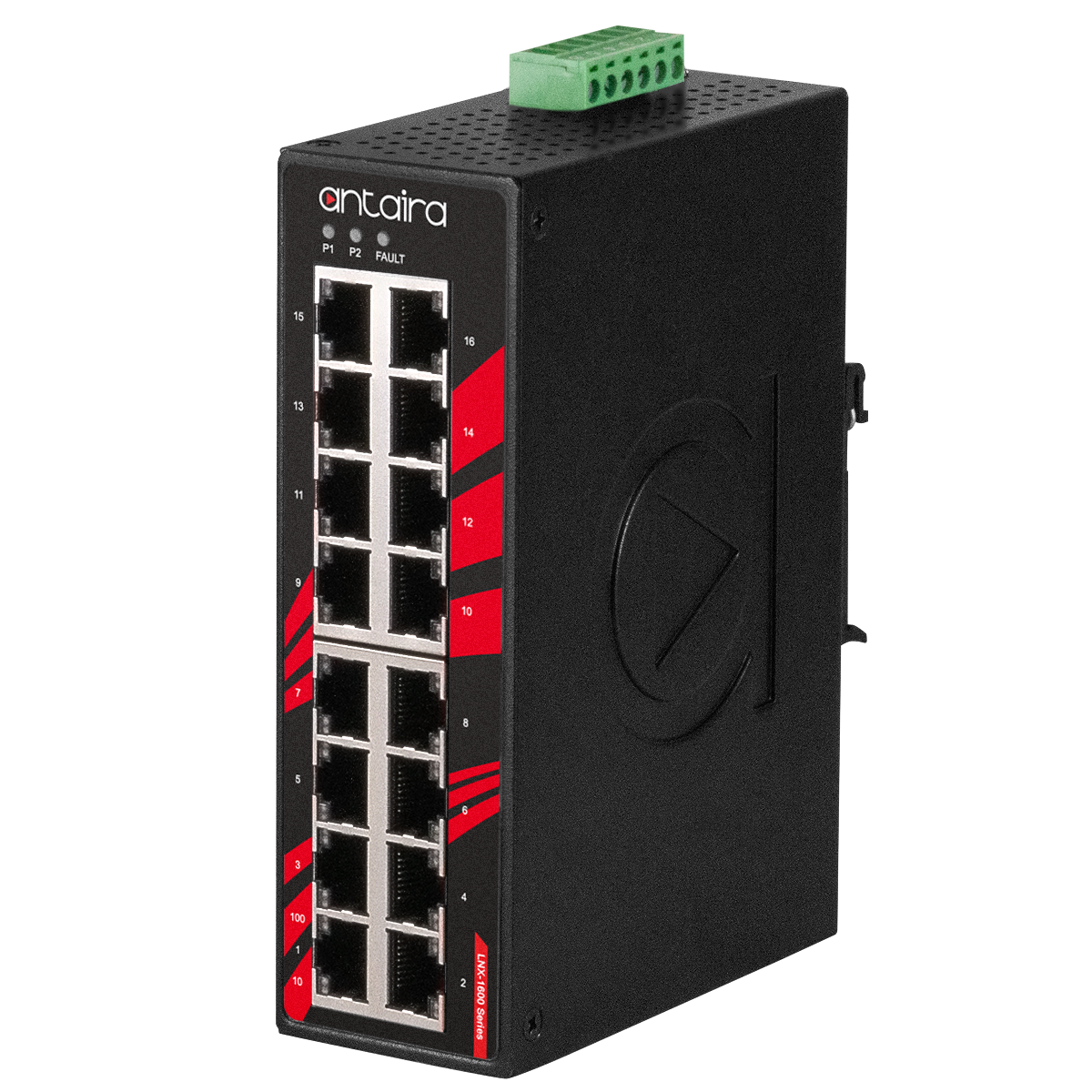

Antaira | LNX-1600-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-1600-T

Overview Details for LNX-1600-T

16-Port Industrial Unmanaged Ethernet Switch | w/16*10/100Tx; EOT: -40°C ~ 75°C

Antaira Technologies’ LNX-1600-T is an industrial unmanaged Ethernet switch designed with 16*10/100 fast Ethernet ports. It is IP30 rated and DIN-Rail mountable making it ideal for applications that demand large port counts in a confined area; such as, power/utility, water wastewater treatment plants, oil/gas/mining, process control automation, security access control systems, intelligent transportation systems, or anywhere an industrial Ethernet switch that need to be enclosed in a confined area.The LNX-1600-T has a hardened design providing high EFT and ESD protection to prevent any unregulated voltage. This industrial switch also has a dual power input support of 12~48VDC. This industrial switch has the extended operating temperature model -40˚C to 75˚C.

Features

  • Supports 16*10/100Tx Fast Ethernet
  • Store-and-Forward Switching Architecture
  • Redundant Power Input Design: 12~48VDC
  • IP30 Rugged Metal Case Design
  • DIN-Rail and Wall Mount Support
  • Operating Temperature Range - EOT: -40° to 75°C
  • 5-Year Warranty

Included

  • DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
  • LNX-1600-T
  • Quick Installation Guide
  • RJ45 dust cover set
  • Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity
5 to 95%, (non-condensing)
Certifications
FCC, CE, UL 61010-1, 61010-2-201
Dimensions
46 x 142 x 99 mm (W x H x D)
EMI
FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
EMS
CE EN55035/EN61000-6-2 Class A;IEC61000-4-2,3,4,5,6,8
Ethernet Port
16*10/100 Base-T(x);Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control
IEEE 802.3x back pressure flow control
Free Fall
IEC60068-2-32
Green
RoHS Compliant
Housing
Metal, IP30 protection
Input Voltage
12~48VDC Redundant Input
Jumbo Frame
1664 bytes
LED Indicators
System: Power 1, Power 2, Fault;Ethernet ports: On-Link/Flash-data transmitting
MAC Table Size
16K
Mounting
DIN-Rail mounting, Wall mounting
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
Operating Temperature
-40°C ~ 75°C
Overload Current Protection
Present
Packet Buffer
4Mbits
Power Connection
1 removable 6-contact terminal block
Power Reverse Polarity Protection
Present
Processing Type
Store and Forward
Protocols
CSMA/CD
Relay Contact
24VDC, 1A resistive
Shock
IEC60068-2-27
Standards
IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet
Storage Temperature
-40°C ~ 85°C
Switching Architecture
Back-Plane (Switching Fabric): 3.2Gbps
System Power Consumption
3.4W
Transfer Rate
14,880pps for Ethernet port;148,800pps for Fast Ethernet port
Vibration
IEC60068-2-6
Warranty
5 Years
Weight
Unit: 1.38 Ibs.;Shipping: 1.79 Ibs.
