LNX-0500-M12-67-T | 5-Port Industrial Unmanaged Ethernet Switch | w/5* 10/100Tx M12 connectors; EOT (-40°C ~ 80°C) IP67 | Antaira
5-Port Industrial Unmanaged Ethernet Switch, w/5* 10/100Tx M12 connectors; EOT (-40°C ~ 80°C) IP67

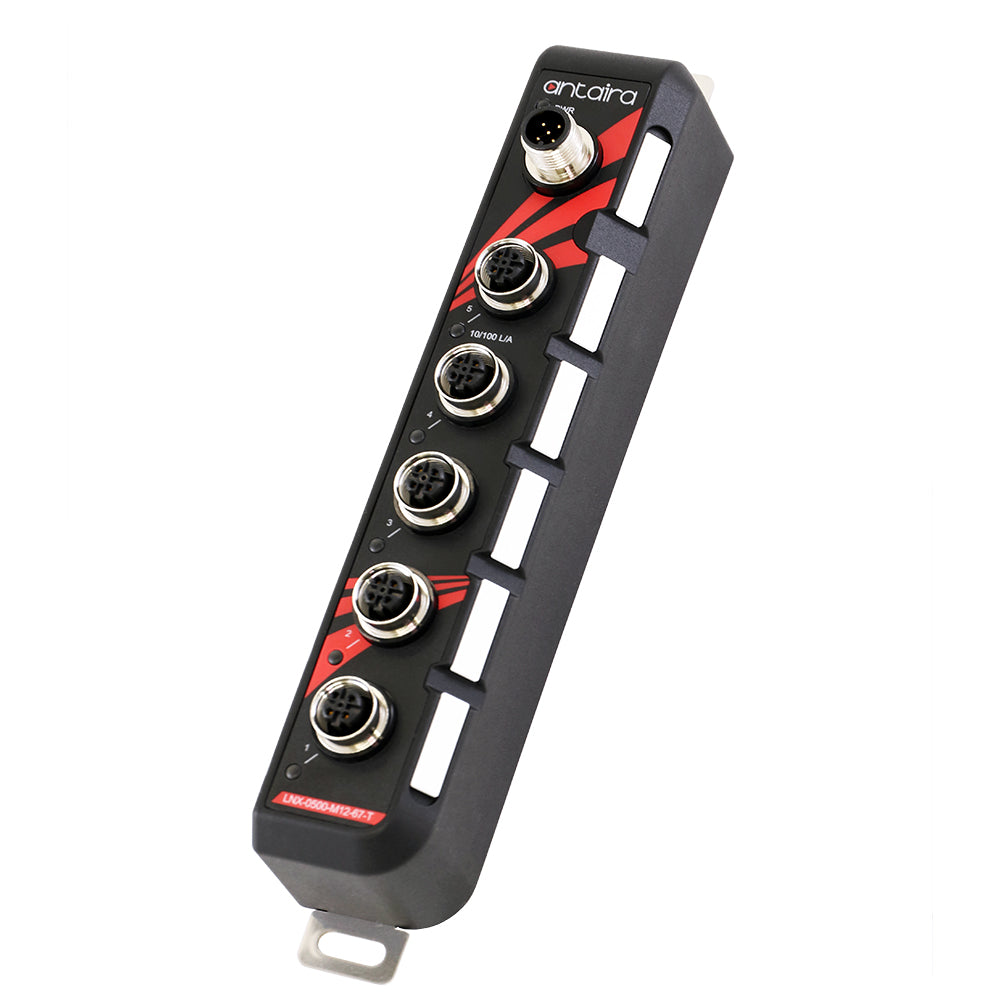

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-0500-M12-67-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNX-0500-M12-67-T Documents
Overview
Details for LNX-0500-M12-67-T
5-Port Industrial Unmanaged Ethernet Switch | w/5* 10/100Tx M12 connectors; EOT (-40°C ~ 80°C) IP67
Antaira Technologies’ LNX-0500-M12-67-T is a 5-port 10/100Tx M12 IP67 industrial switch that meets the high-reliability requirements demanded by industrial applications. The LNX-0500-M12-67-T features a wide operating temperature of -10° to 70°C in the standard model and -40° to 75°C in the extended temperature model which allows this device to be used in various industrial environments. Its M12 connectors ensure a tight, robust connection and guarantees reliable operation in applications that are subject to high vibration and shock in environments containing dust, liquid, or laden with gas.Features
- 5*10/100Tx Fast Ethernet industrial switch
- M12 (D-coded Female) Connector with IP67 Rated Protection
- IP67 Rugged Plastic Case Design
- RJ45 Port Support Auto MDI / MDI-X Function
- Auto Negotiation Speed, Half / Full Duplex
- Store-and-Forward Switching Architecture
- Redundant Power Input: 12~48VDC
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- 5-Year Warranty
Included
- 1 - DIN-Rail kit with screws
- 1 - LNX-0500-M12-67-T
- 1 - Quick Installation Guide
- 6 - M12 protective caps
- 6 - Port labels
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201
- Dimensions
- 37.13 x 215.73 x 32.8 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
- EMS
- CE EN 55024 Class A;EN 61000-6-2 Class A;IEC61000-4-2 (ESD);IEC61000-4-3 (RS);IEC61000-4-4 (EFT);IEC61000-4-5 (Surge);IEC61000-4-6 (CS);IEC61000-4-8 (Magnetic Field)
- Ethernet Port
- 5*10/100T(X) M12, 4-pin D-coded, Female, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Plastic, IP67 protection
- LED Indicators
- Power;Ethernet Ports: Link/Act
- MAC Table Size
- 1K
- Memory Buffer
- 448kbits
- Mounting
- DIN-Rail, Wall Mounting
- Operating Temperature
- -40°C to 75°C
- Overload Current Protection
- Present
- Power Connection
- 1*M12, 5-pin A-coded, Male
- Power Consumption
- 500mWatts
- Power Input
- 12 to 48VDC, Redundant Inputs
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Reverse Polarity Protection
- Present
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3 100Base-TX Fast Ethernet
- Storage Temperature
- -40°C to 85°C
- Switching Architecture
- Back-Plane: Non-Blocking Switching Fabric
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
- Warranty
- 5 Years
- Weight
- Unit: 0.749 lbs.;Shipping: 1.322 lbs.
