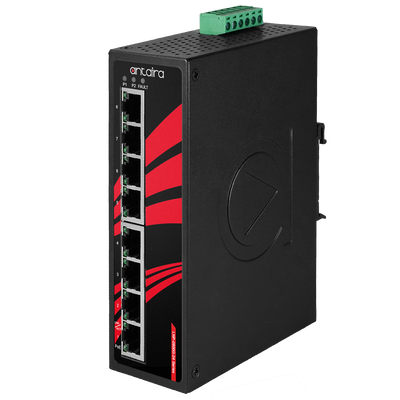

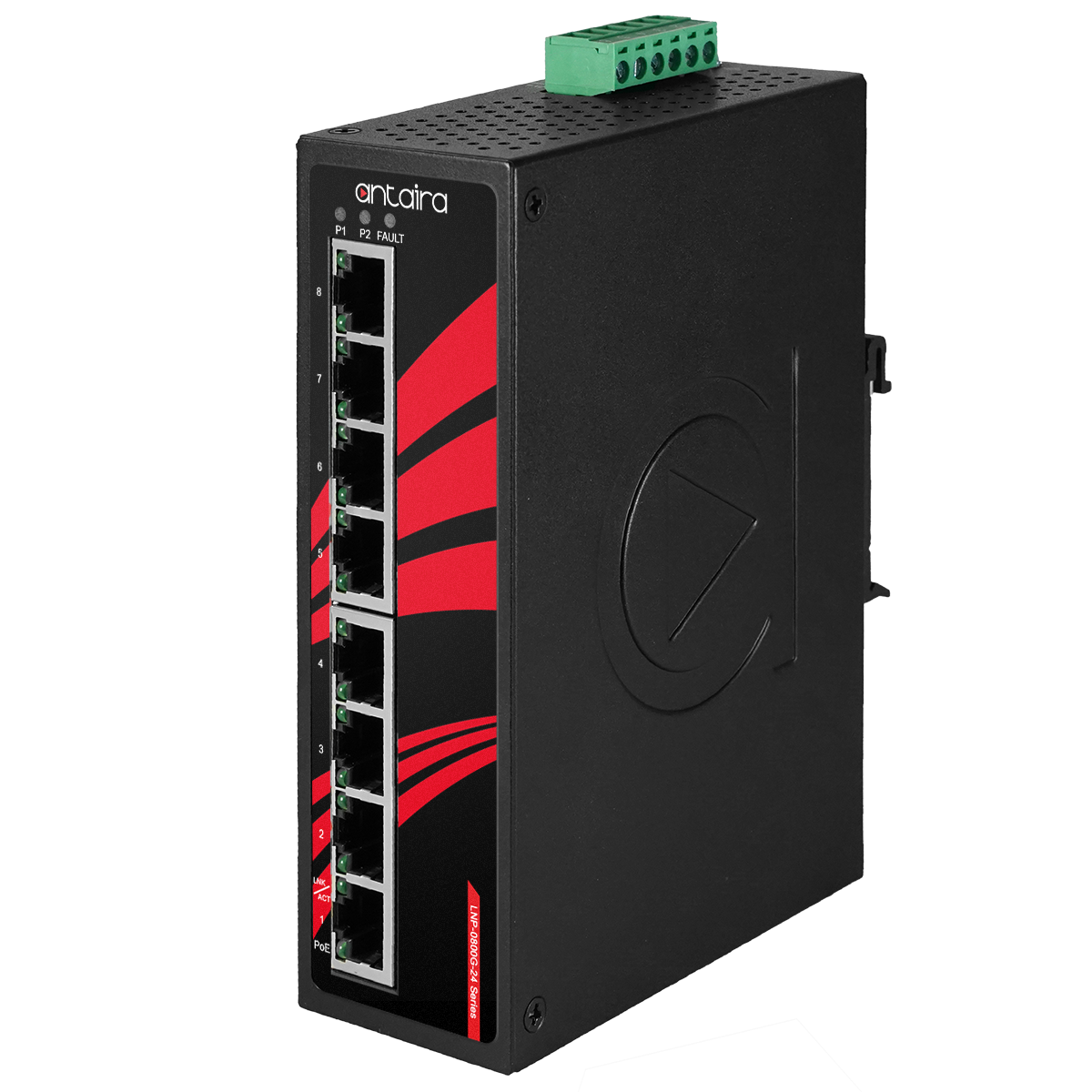

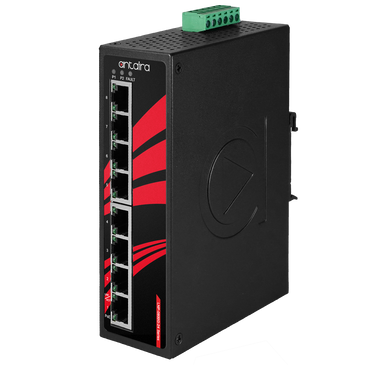

LNP-0800G-24 | 8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/8*10/100/1000Tx (30W/Port) | 9~55VDC Power Input | Antaira

8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/8*10/100/1000Tx (30W/Port) | 9~55VDC Power Input

The LNP-0800G-24 is an industrial gigabit unmanaged PoE+ Ethernet switch with P.S.E. function and a relay output of 24VDC at 1A. The LNP-0800G-24 supports Power over Ethernet, a system that transmits electrical power along with data to remote devices over standard twisted-pair cable in an Ethernet network. The LNP-0800G-24 supports wide-range 9~55VDC power inputs and generates up to 30W P.S.E. power output per port. The LNP-0800G-24 switch has 8 X 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The LNP-0800G-24 switch is one of the most reliable choices for PoE Ethernet applications.

Features

• Provides 8x10/100/1000Base-T(X) PoE (P.S.E.) Ports
• Supports P.S.E. Based on IEEE 802.3at Standard up to 30 Watts per Port
• 9.6Kbytes Jumbo Frame Support
• Supports Dual Wide Range 9 ~ 55VDC Power Inputs for Power Redundancy
• Supports Auto-Negotiation and Auto-MDI/MDI-X
• Supports Store-and-Forward Transmission
• Supports Flow Control
• Rigid IP-30 Housing Design
• DIN-Rail and Wall Mounting Enabled
• 5-Year Warranty

Included

• DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• Dust cover set
• LNP-0800G-24
• Quick Installation Guide
• Wall mounting bracket set with screws
