LMX-1600G-M12-67 | 16-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch | with 16*10/100/1000Tx M12 Connectors (X-Coded) | Antaira

16-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connectors (X-Coded)

Brand: AntairaSKU: LMX-1600G-M12-67

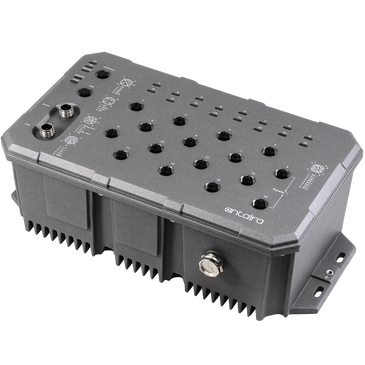

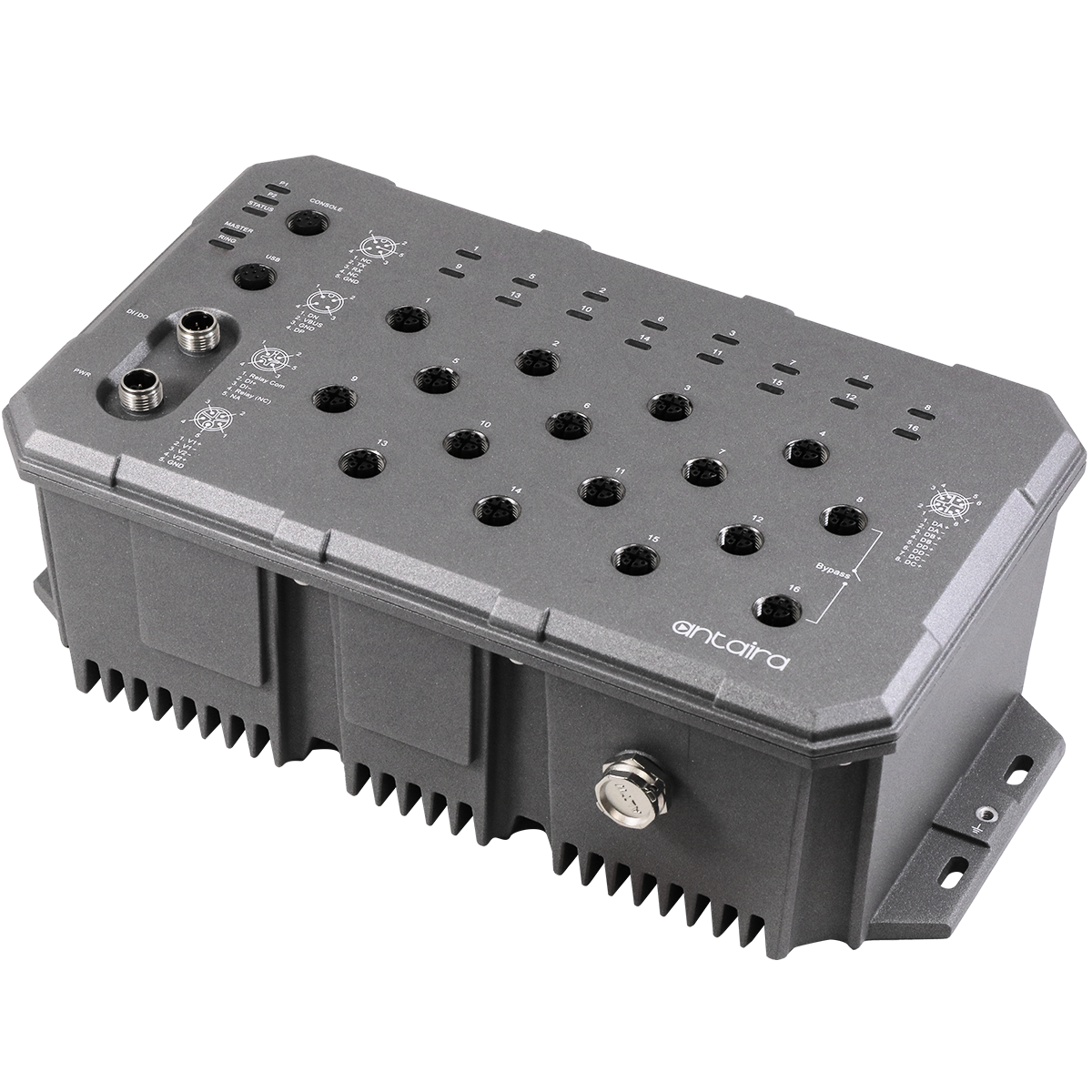

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMX-1600G-M12-67

Overview & Specifications Reviews Parts & Accessories

Overview Details for LMX-1600G-M12-67

16-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch | with 16*10/100/1000Tx M12 Connectors (X-Coded)

Antaira Technologies’ LMX-1600G-M12-67 is a 16-port managed gigabit Ethernet switch, which provides 16*10/100/1000 Base-T(X). LMX-1600G-M12-67 is full manageable light layer 3 Ethernet switch series and supports power inputs redundancy. LMX-1600G-M12-67 offers standardized network redundancy ITU-T G.8032 ERPS v2 (Ethernet Ring Protection Switch) protocol, providing <50ms recovery time to the network.LMX-1600G-M12-67 provides comprehensive network security and management capability by supporting Multi-user account, IGMP, GVRP, VLAN, QoS, SNMP, RADIUS, TACACS+, Aggregation (Static, LACP), SSH, SSL, IP source guard to create a highly-secured network environment. For power saving purpose, assuring PD priority and enhancing security level of the network.LMX-1600G-M12-67 is an M12 IP67 industrial gigabit Ethernet switch that meets the high-reliability requirements demanded by industrial applications. Its M12 connectors ensure a tight and robust connection and it guarantees reliable operation on applications that are subject to high vibration and shock in dust, liquid or gas laden environments. Being able to operate under the standard temperature range from -10°C to 65°C, the LMX-1600G-M12-67 can be installed in almost any harsh environment.

Features

16-Port 10/100/1000Base-T(X) Ethernet
Multi-user account for security
Bypass design for Daisy Chain Redundancy
Configuration: http, https, CLI Command, Telnet, SNMP, SSH
Network redundancy support: G.8032 ERPS v2 / STP / RSTP / MSTP
Supports Static routes for routing function
Supports RADIUS, TACACS+ authentication protocol
Supports QoS, LACP bandwidth control
Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
Redundant power inputs design
Operating Temperature Range – STD: -10°C to 65°C
5-Year Warranty

Included

Dust Cover Set
LMX-1600G-M12-67
Quick Installation Guide

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Bypass Protection: Ethernet Port 8 and Port 16
Certifications: FCC, CE
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Configuration backup: 1*USB 2.0 with M12 4-pin A-coded female connector for configuration backup/restore
Digital Input: 1* Digital Input (DI) with M12 5-Pin A-coded male connector: State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
Dimensions: 166.2 x 295 x 101.3 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2:;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 16*10/100/1000 Base-T(X), 8-pin M12 X-Coded female connectors, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP67 protection
IGMP Group: 1024
Input Voltage: 24~55VDC Redundant Input
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
L3 Switching: DHCP option82, static routes
LED Indicators: System: Power 1, Power 2, Master, Ring, Status;Ethernet ports: Speed/Link/Active
MAC Table Size: 32K
Memory Buffer: 4Mbits
Mounting: Wall mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-T: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature: -10°C to 65°C
Overload Current Protection: Present
Power Connection: Dual DC power inputs through M12 5-pin K-coded male connector
Power Saving: ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues: 8
Processing Type: Store and forward
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present
RS232 Serial Console: 1*RS232 with M12 5-pin A-coded female connector
Shock: IEC60068-2-27
Storage Temperature: -40°C to 85°C
Switching Architecture: Back-Plane (Switching Fabric): 32Gbps
System / Diagnostics: Dual Image Protection, PING, PING6
System Power Consumption: 28W
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration: IEC60068-2-6
VLAN Groups: 4095
Warranty: 5 Years
Weight: Unit: 8.89 lbs.;Shipping: 10.49 lbs.
