LMX-0602-M-T-V2 | 6-Port Industrial Light Layer 3 Managed Ethernet Switch | with 410/100Tx and 2100Fx Multi-Mode 2Km | 12~48VDC Power Input; EOT: -40°C to 75°C; Version 2 Hardware | Antaira

6-Port Industrial Light Layer 3 Managed Ethernet Switch, with 4*10/100Tx and 2*100Fx Multi-Mode 2Km, 12~48VDC Power Input; EOT: -40°C to 75°C; Version 2 Hardware

Brand: AntairaSKU: LMX-0602-M-T-V2

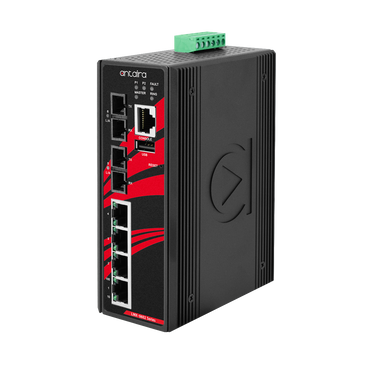

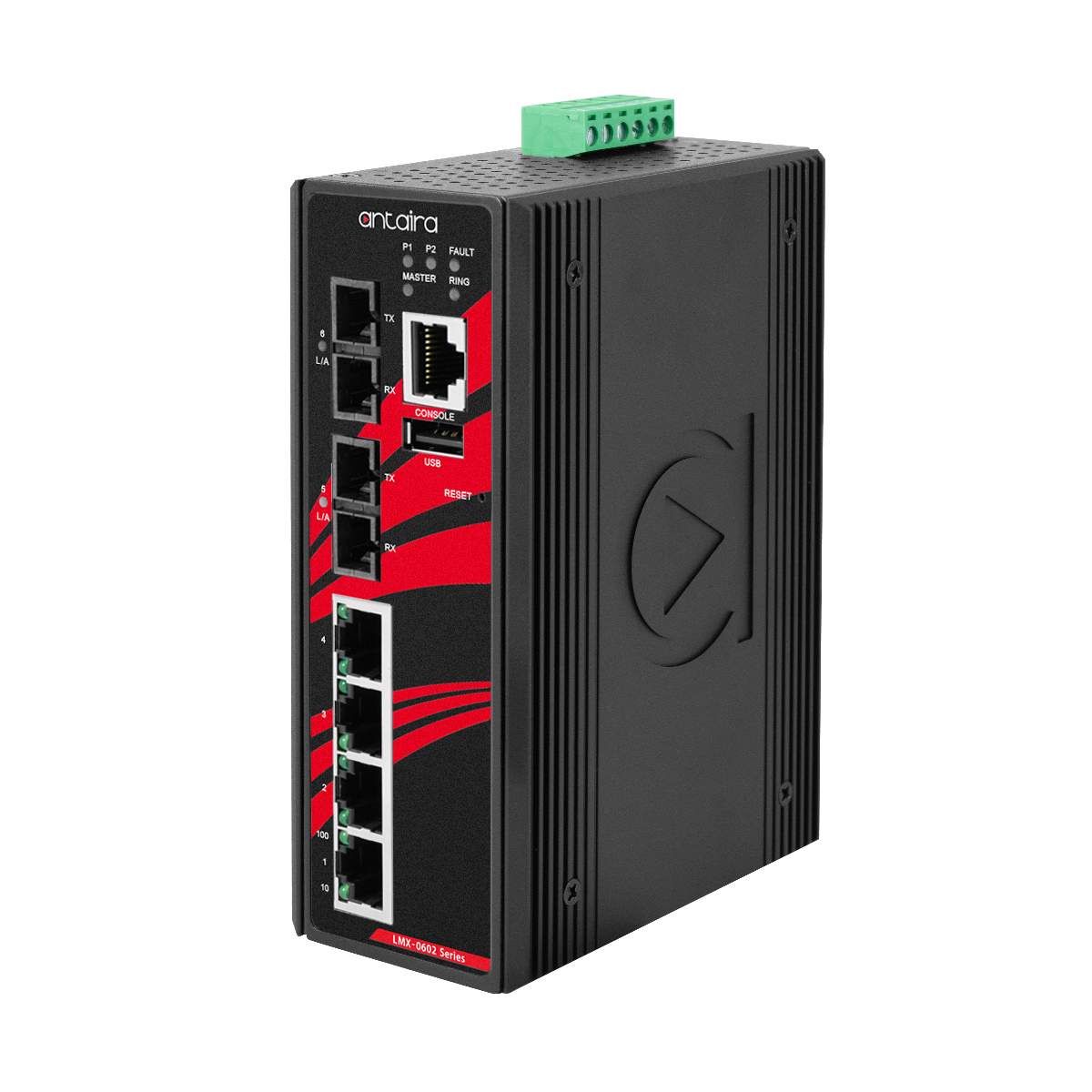

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMX-0602-M-T-V2

Overview & Specifications Reviews Parts & Accessories

Overview Details for LMX-0602-M-T-V2

6-Port Industrial Light Layer 3 Managed Ethernet Switch | with 4*10/100Tx and 2*100Fx Multi-Mode 2Km | 12~48VDC Power Input; EOT: -40°C to 75°C; Version 2 Hardware

Antaira’s LMX-0602-M-T is a 6-port industrial managed Ethernet switch that is embedded with 4*10/100Tx fast Ethernet ports and 2*100Fx SC fiber connectors with multi-mode 2Km support. It is a light layer 3 manageable Ethernet switch pre-loaded with user friendly web management console design. It supports Ring Network Redundancy function with market open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol <50ms network recovery time. The advanced network Filtering and Security functions, IGMP, VLAN, QoS, SNMP, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control network.The LMX-0602-M-T is a high performance industrial managed Ethernet switch with a compact size, IP30 rating, DIN-rail or wall mounting design, and extended operating temperature range from -40°C to 75°C. It provides high EFT and ESD protection for any industrial networking applications within Power/Utility, Water Wastewater, Oil/Gas/Mining, Factory Automation, ITS-Transportation, Security Surveillance and any other outdoor or harsh environment.Version 2 hardware is compatible with the latest light layer 3 firmware which permits static routes between VLANs.

Features

4*10/100Tx RJ45 Ports and 2*100Fx SC Fiber Ports with Multi-Mode 2Km
Supports Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
Supports IPv4/IPv6, and DHCP Option 66/67/82
Supports Modbus/TCP Protocol for Device Management and Monitoring
Configuration: Web Console, Telnet, CLI Command
Supports IGMP v1/v2/v3, up to 1024 Groups
QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
Redundant Power Input Design: 12~48VDC
IP30 Protection
DIN-Rail or Wall Mountable
Extended Operating Temperature: -40°C to 75°C
5-Year Warranty

Included

1 - DC cable - 18 AWG & DC jack 5.5 x 2.1mm
1 - LMX-0602-M-T-V2
1 - Quick Installation Guide
1 - RJ45 dust cover set
1 - RJ45 to DB9 Serial Console cable
1 - Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Certifications: FCC, CE, UL 61010-1, 61010-2-201
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions: 54 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A,;CE EN55022/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2 Class A;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 4*10/100Base-TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port: 2*100Base-FX SC Multimode
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 protection
IGMP Group: 1024
Input Voltage: 12~48VDC Redundant Input
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching: DHCP option82, static routes
LED Indicators: System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active;Fixed Fiber: Link/Active
MAC Table Size: 8K
Memory Buffer: 4Mbits
Mounting: DIN-Rail mounting, Wall mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature: -40°C to 75°C
Overload Current Protection: Present
Power Connection: 1 removable 6-contact terminal block
Power Saving: ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues: 8
Processing Type: Store and Forward
Protocols: IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact: 24 VDC, 1A resistive
Reverse Polarity Protection: Present
RS232 Serial Console: 1*RS232 in RJ45
Shock: IEC60068-2-27
Storage Temperature: -40°C ~ 85°C
Switching Architecture: Back-Plane (Switching Fabric): 1.2Gbps
System / Diagnostics: Dual Image Protection, PING, PING6
System Power Consumption: 7.5W
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
Vibration: IEC60068-2-6
VLAN Groups: 4095
Warranty: 5 Years
Weight: Unit: 1.9 lbs;Shipping: 2.7 lbs
