LMP-1600G-M12-67-24 | 16-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switch | with 16*10/100/1000Tx M12 Connectors (X-Coded) (30W/Port) | 24~55VDC Power Input | Antaira

16-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connectors (X-Coded) (30W/Port), 24~55VDC Power Input

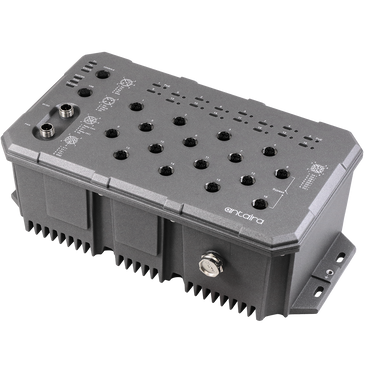

Antaira | LMP-1600G-M12-67-24

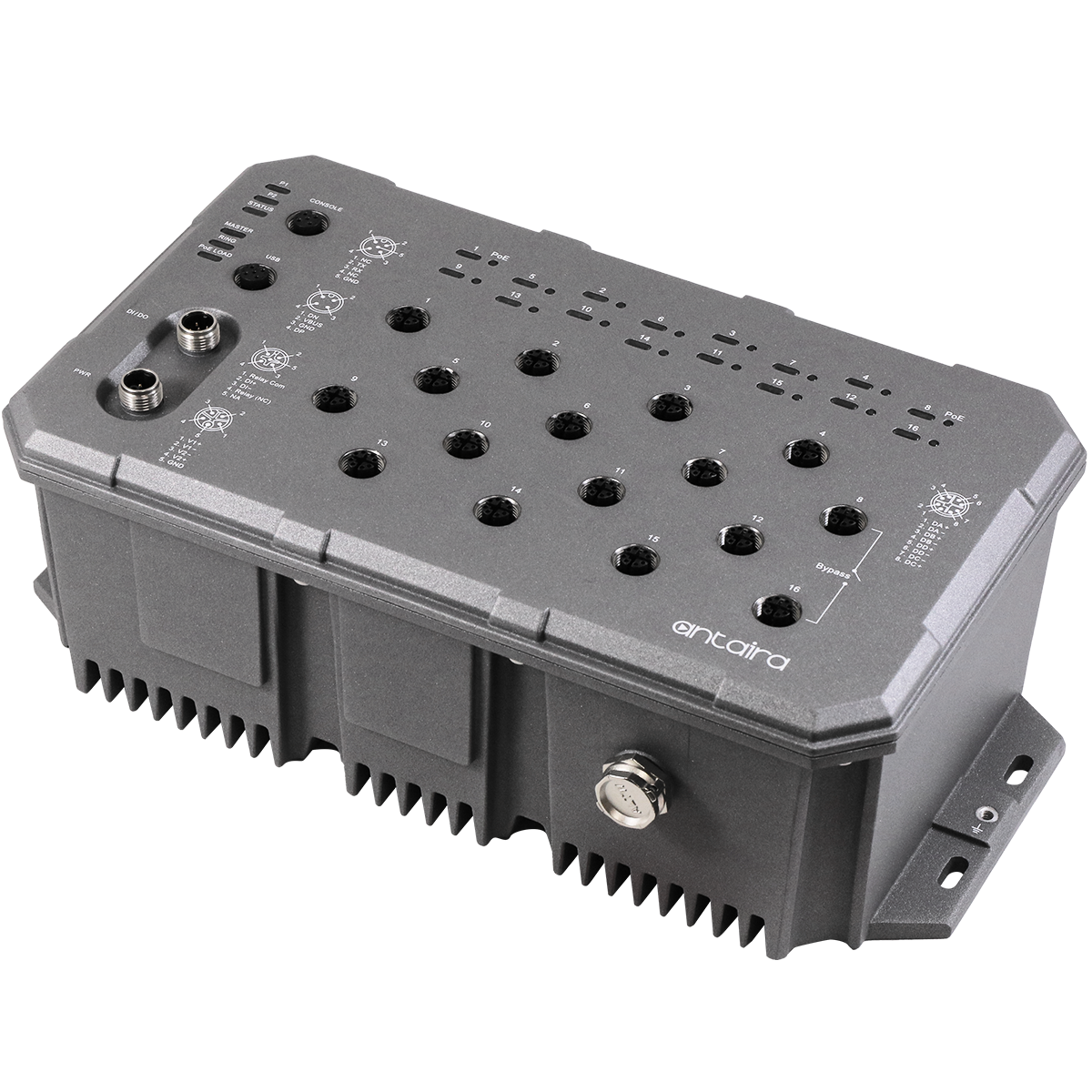

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-1600G-M12-67-24

Documents and manuals

Antaira LMP-1600G-M12-67-24 Documents

Overview

Details for LMP-1600G-M12-67-24

16-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switch | with 16*10/100/1000Tx M12 Connectors (X-Coded) (30W/Port) | 24~55VDC Power Input

Antaira Technologies’ LMP-1600G-M12-67-24 is a 16-port managed gigabit Ethernet switch, which provides 16*10/100/1000 Base-T(X) with IEEE 802.3 af/at PoE compliant. LMP-1600G-M12-67-24 is full manageable light layer 3 Ethernet switch series and supports power inputs redundancy. LMP-1600G-M12-67-24 offers standardized network redundancy ITU-T G.8032 ERPS v2 (Ethernet Ring Protection Switch) protocol, providing <50ms recovery time to the network.LMP-1600G-M12-67-24 provides comprehensive network security and management capability by supporting Multi-user account, IGMP, GVRP, VLAN, QoS, SNMP, RADIUS, TACACS+, Aggregation (Static, LACP), SSH, SSL, IP source guard to create a highly-secured network environment. For power saving purpose, assuring PD priority and enhancing security level of the network, LMP-1600G-M12-67-24 also supports PoE scheduling and PoE output limit function to set up PoE output duration and watt at will.LMP-1600G-M12-67-24 is an M12 IP67 PoE+ industrial gigabit Ethernet switch that meets the high-reliability requirements demanded by industrial applications. Its M12 connectors ensure a tight and robust connection and it guarantees reliable operation on applications that are subject to high vibration and shock in dust, liquid or gas laden environments. Being able to operate under the standard temperature range from -10°C to 65°C, the LMP-1600G-M12-67-24 can be installed in almost any harsh environment.

Features

  • 16-Port 10/100/1000Base-T(X) Ethernet with IEEE 802.3af/at compliant (30W/Port)
  • Multi-user account for security
  • Bypass design for Daisy Chain Redundancy
  • Configuration: http, https, CLI Command, Telnet, SNMP, SSH
  • Network redundancy support: G.8032 ERPS v2 / STP / RSTP / MSTP
  • Supports Static routes for routing function
  • Supports RADIUS, TACACS+ authentication protocol
  • Supports QoS, LACP bandwidth control
  • Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
  • PoE ping alarm function for PoE ports power recycle
  • Redundant power inputs design
  • Operating Temperature Range – STD: -10°C to 65°C
  • 5-Year Warranty

Included

  • Dust Cover Set
  • LMP-1600G-M12-67-24
  • Quick Installation Guide

Specifications

Ambient Relative Humidity
5% to 95%, (non-condensing)
Bypass Protection
Ethernet Port 8 and Port 16
Certifications
FCC, CE
Configuration
Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Configuration backup
1*USB 2.0 with M12 4-pin A-coded female connector for configuration backup/restore
Digital Input
1* Digital Input (DI) with M12 5-Pin A-coded male connector: State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
Dimensions
166.2 x 295 x 101.3 mm (W x H x D)
EMI
FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
EMS
CE EN55035/EN61000-6-2:;IEC61000-4-2,3,4,5,6,8
Ethernet Port
16*10/100/1000 Base-T(X), 8-pin M12 X-Coded female connectors, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control
IEEE 802.3x flow control, back pressure flow control
Free Fall
IEC60068-2-32
Green
RoHS Compliant
Housing
Metal, IP67 protection
IGMP Group
1024
Input Voltage
24~55VDC Redundant Input
Jumbo Frame
9.6Kbytes
L2 Switching
Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
L3 Switching
DHCP option82, static routes
LED Indicators
System: Power 1, Power 2, Master, Ring, Status, PoE Load;PoE: On-connected to PD devices;Ethernet ports: Speed/Link/Active
MAC Table Size
32K
Memory Buffer
4Mbits
Mounting
Wall mounting
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-T: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy
STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature
-10°C to 65°C
Overload Current Protection
Present
Poe Pin Assignment
V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
PoE Power Budget
240W
Power Connection
Dual DC power inputs through M12 5-pin K-coded male connector
Power Saving
ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues
8
Processing Type
Store and forward
QoS
802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact
24VDC, 1A resistive
Reverse Polarity Protection
Present
RS232 Serial Console
1*RS232 with M12 5-pin A-coded female connector
Shock
IEC60068-2-27
Storage Temperature
-40°C to 85°C
Switching Architecture
Back-Plane (Switching Fabric): 32Gbps
System / Diagnostics
Dual Image Protection, PING, PING6
System Power Consumption
28W
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration
IEC60068-2-6
VLAN Groups
4095
Warranty
5 Years
Weight
Unit: 9.06 lbs.;Shipping: 10.66 lbs.
