A/DIFF-ENT | Enthalpy Sensor | ACI
Enthalpy, Differential Enthalpy Changeover Control, Indoor vs Outdoor, 24 VAC Form 1C Relay Contact, Altitude 0K to 2K ft
Documents and manuals
ACI A/DIFF-ENT Documents
Overview
Details for A/DIFF-ENT

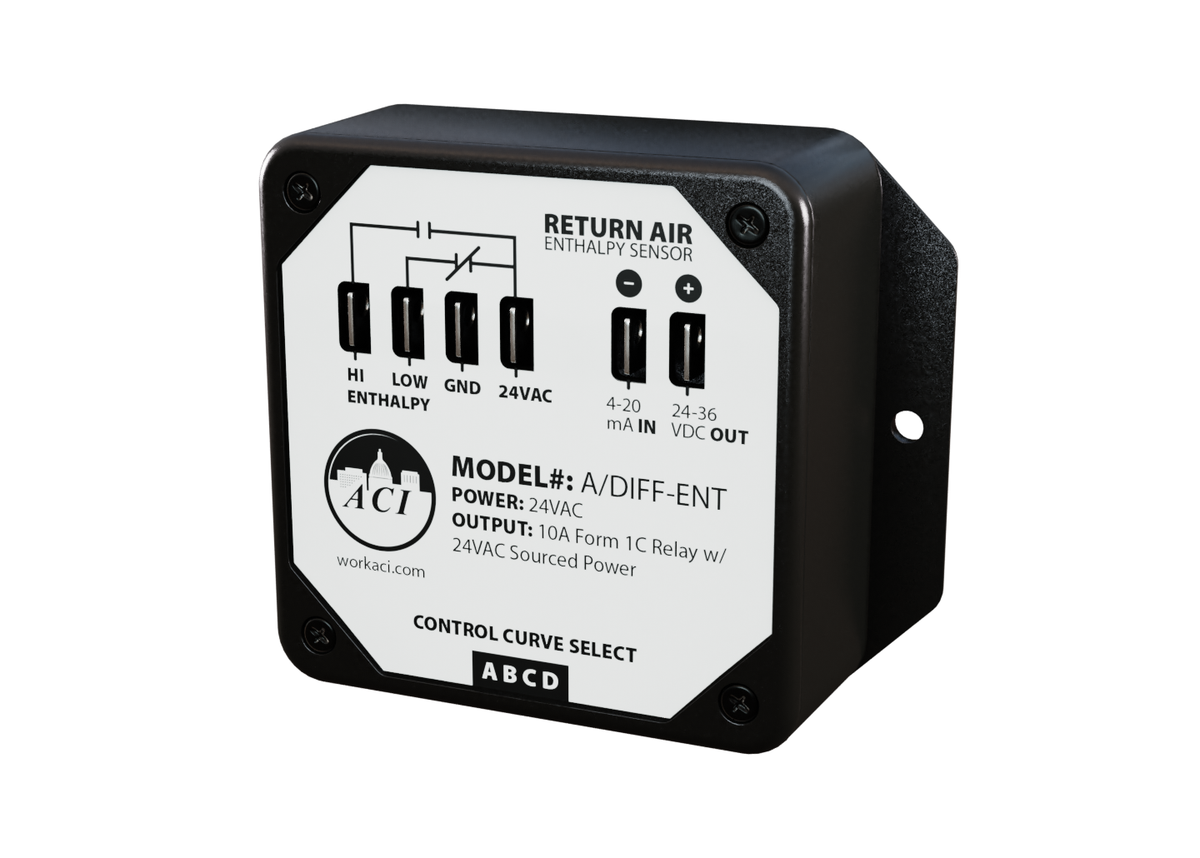

A/DIFF-ENT | Enthalpy Sensor
The A/DIFF-ENT is an enthalpy controller which measures and converts temperature and humidity into a sources relay output. The supply voltage to the A/DIFF-ENT is common to both the N/O or N/C contacts of the 10A Form 1C Relay. Typically used in conjunction with the A/DIFF-ENT, the A/ENT converts a capacitive type humidity sensor into a linear 2-wire, 4 to 20 mA output. Its signal is proportional to a scale of 0 to 50 BTU's and is geared towards OEMs of economizers and other devices that require an enthalpy input, or economizer control. Each unit in this series features a conformally coated circuit board and jumper selectable elevation setting. The A/DIFF-ENT is covered by ACI's Five (5) Year Limited Warranty.
Specifications
Item Number | A/DIFF-ENT |
Brand | ACI |
Sensor | Enthalpy |
