HOMT225225 | MINI CKT BRKR 120/240V 225+225 | Square D by Schneider Electric

Brand: Square DSKU: HOMT225225

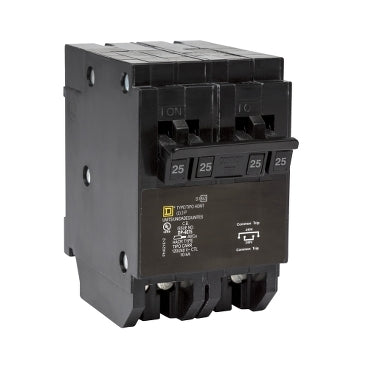

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HOMT225225

Jump to: Overview & Specifications Reviews

Overview Details for HOMT225225

MINI CKT BRKR 120/240V 225+225

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker and a two pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two pole breaker is rated 25A at 120/240 VAC and other two pole breaker is rated 25A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 2 pole breakers of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Specifications

Product: Miniature circuit-breaker
Range: Homeline
Current Rating: 25 A;25 A
Certifications: UL Listed
Voltage Rating: 120/240 V AC
Mounting Type: Plug-in
Number of Poles: 2P
Short Circuit Current Rating: 10 kA
Number of Spaces: 2.0
Circuit Breaker Type: Quad tandem
Ratings: HACR rated
Electrical Connection: Box lugs
Wire Size: AWG 14...AWG 8 aluminium/copper)1
tightening torque: 35.40 lbf.in (4.0 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14);35.40 lbf.in (4.0 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
Height: 3.13 in (79.50 mm)
Width: 1.97 in (50.04 mm)
Depth: 3.23 in (82.04 mm)
Ambient air temperature for operation: 104 °F (40 °C)
Category: 00046-HOM/T 15-30A 1P; 15-60A 2P
Discount Schedule: DE3D
GTIN: 785901970286
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.15 in (8 cm)
Package 1 Width: 1.97 in (5 cm)
Package 1 Length: 3.23 in (8.2 cm)
Package 1 Weight: 16.00 oz (453.592 g)
