HOM230GFI | MINIATURE CIRCUIT BREAKER, 2P, 120/240V, 30A | Square D by Schneider Electric

Brand: Square DSKU: HOM230GFI

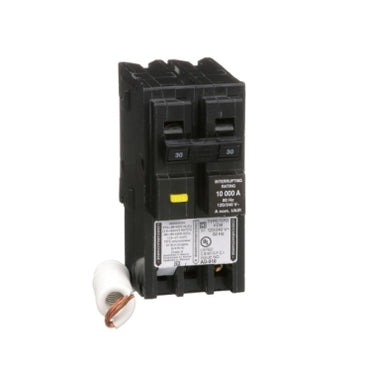

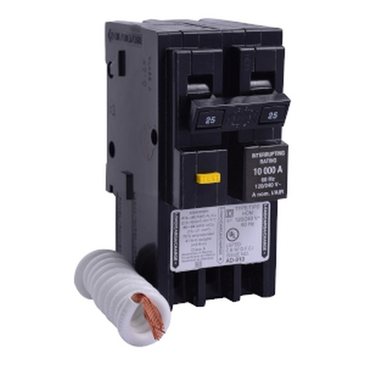

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HOM230GFI

Jump to: Overview & Specifications Reviews

Overview Details for HOM230GFI

MINIATURE CIRCUIT BREAKER, 2P, 120/240V, 30A

MINIATURE CIRCUIT BREAKER

Current Rating : 30 A
Voltage Rating : 120/240 V AC
Number of Poles : 2P
Short Circuit Current Rating : 10 kA
Circuit Breaker Type : Ground fault protecting class A 6 mA

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Product: Miniature circuit-breaker
Range: Homeline
Current Rating: 30 A
Certifications: UL Listed
Voltage Rating: 120/240 V AC
Mounting Type: Plug-in
Number of Poles: 2P
Short Circuit Current Rating: 10 kA
Number of Spaces: 2
Circuit Breaker Type: Ground fault protecting class A 6 mA
Ratings: HACR rated
Electrical Connection: Screw clamp terminals
Wire Size: AWG 12...AWG 4 aluminium)1;AWG 14...AWG 6 copper)1
tightening torque: 40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14);40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
Height: 3.13 in (79.50 mm)
Width: 2 in (50.80 mm)
Depth: 2.98 in (75.69 mm)
Ambient air temperature for operation: 104 °F (40 °C)
Category: 00147-HOM 2 POLE GFI CB;40A MAX
Discount Schedule: DE3D
GTIN: 785901303237
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.40 in (8.636 cm)
Package 1 Width: 2.40 in (6.096 cm)
Package 1 Length: 5.40 in (13.716 cm)
Package 1 Weight: 18.73 oz (531.0 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 33
Package 2 Height: 5.40 in (13.716 cm)
Package 2 Width: 13.90 in (35.306 cm)
Package 2 Length: 20.90 in (53.086 cm)
Package 2 Weight: 39.15 lb(US) (17.758 kg)
Warranty: Lifetime
