3RH22711AK60 | CONTROL RELAY 7NO+1NC AC 120V SCREW | Siemens Electrical

Contactor relay, 7no+1NC, AC110v 50HZ/120v 60HZ, size s00, screw terminal, permanent aux. switch, for suva applications

Brand: Siemens ElectricalSKU: 3RH22711AK60

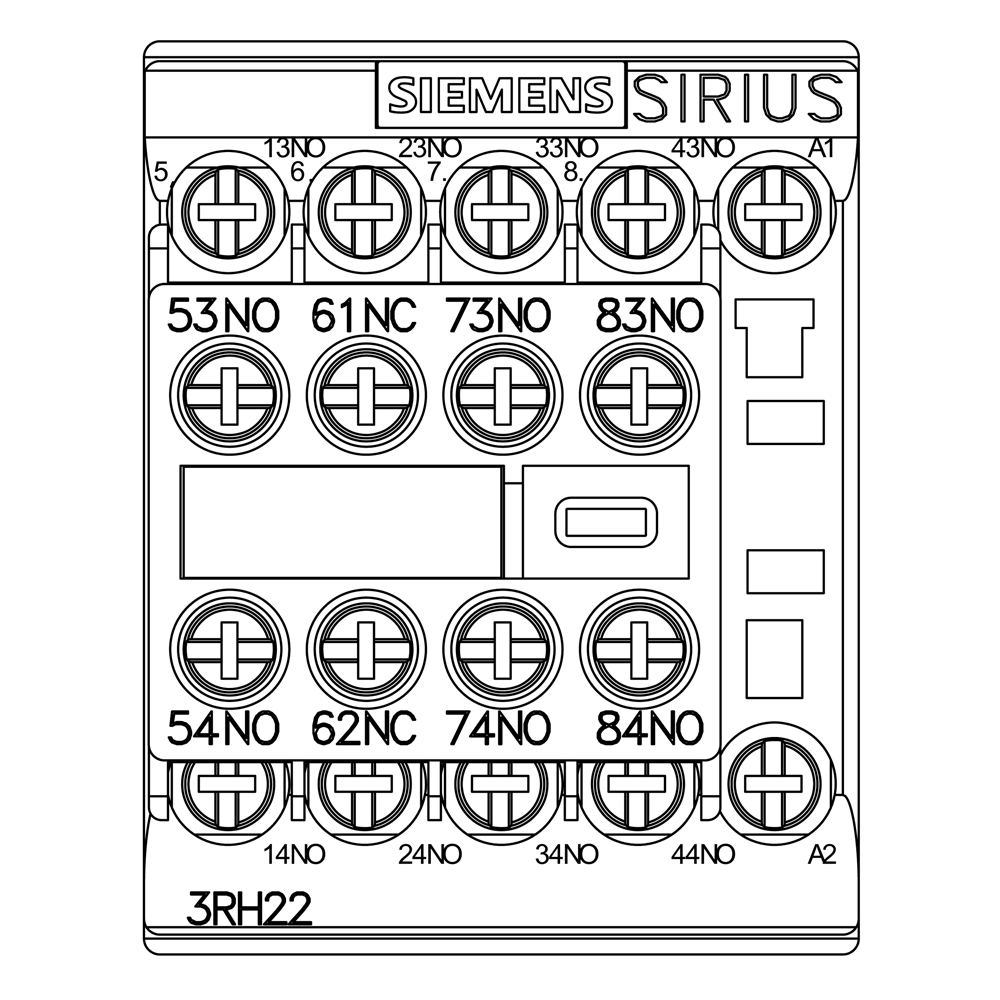

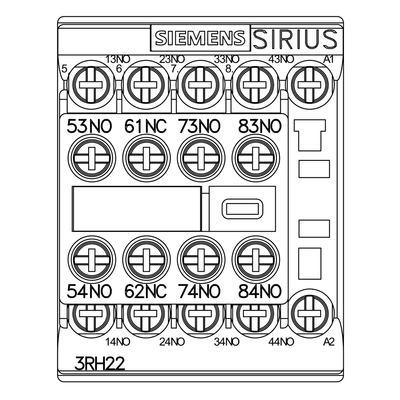

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RH22711AK60

Item Number	3RH22711AK60
Brand	Siemens Electrical
Coil Power Rating	-99999 W / -99999 W
Coil Voltage	AC
Connection	screw-type terminals
Contact Configuration	1
Contact Rating	A600 / Q600
Height	2.450 IN
Length	4.950 IN
Mounting	screw and snap-on mounting onto 35 mm standard mounting rail
Operating Cycles	10
Operating Temperature	-25 °C ... 60 °C
Power Factor	0.8
Size	0.045 m / 0.0575 m / 0.117 m
Special Features	TRUE
Sub Brand	SIRIUS
Type	Auxiliary contactor
Weight	0.620 LB
Width	1.950 IN
