H930 | Current Switch/Relay Combo | Split Core | Fxd | SPST | Veris

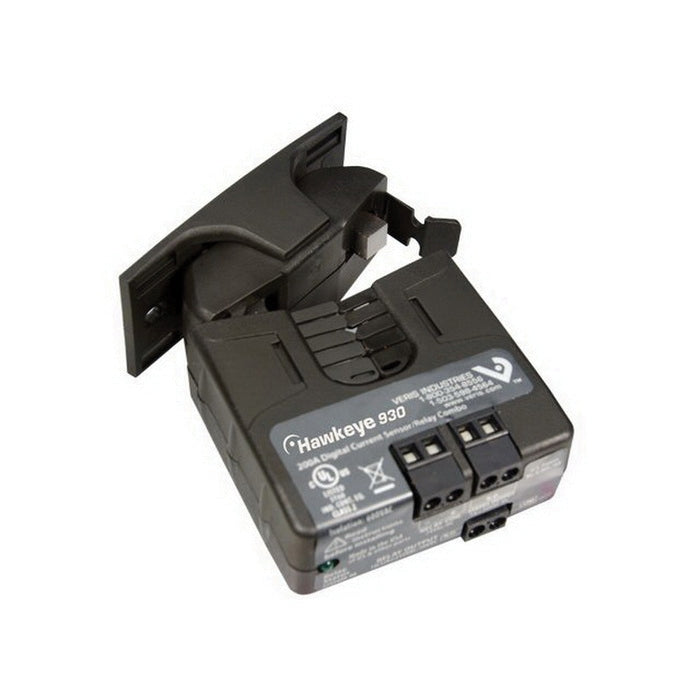

Hawkeye 1.5 to 200 A Fixed Trip Point Current Switch with 24 VAC/VDC SPST Relay, Split-Core

Brand: VerisSKU: H930

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H930

Jump to: Overview & Specifications Reviews

Overview Details for H930

The Hawkeye relay combination series combines an on/off status sensor and command relay in one package, saving the labor, wire runs and space required to mount a separate relay. The switch and relay (not electrically connected) are in the same housing, saving space and cost. It is ideal for monitoring and controlling motors where belt loss is not a concern.

On/off status and command relay in a single labor and space saving device
Detect belt loss - cost-effectively monitor start/stop, unit vents, fan coils, exhaust fans, and other loads where belt loss is not a concern
Easy setup - no calibration required easy setup and operation
No tubing necessary - easier to install than differential pressure switches
Induced from monitored conductor sensor power

Specifications

Item Number	H930
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Range	1.5 - 200 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H930
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.O. 1 A @ 250 VAC
Outputs	Switch output \| Relay
Product Certification	UL \| CE
Product Type	Sensor
Range	HX30 Series
Relay Coil Voltage	24 VAC/DC
Relay Contact Ratings	Resistive: 10 A @ 250 VAC \| Resistive: 10 A @ 30 VDC \| Inductive: 5 A @ 250 VAC \| Inductive: 5 A @ 30 VDC
Relay Poles/Throw	SPST
Sensor	Current Switch (Hawkeye)
Setpoint	Fixed
Warranty	5 years
