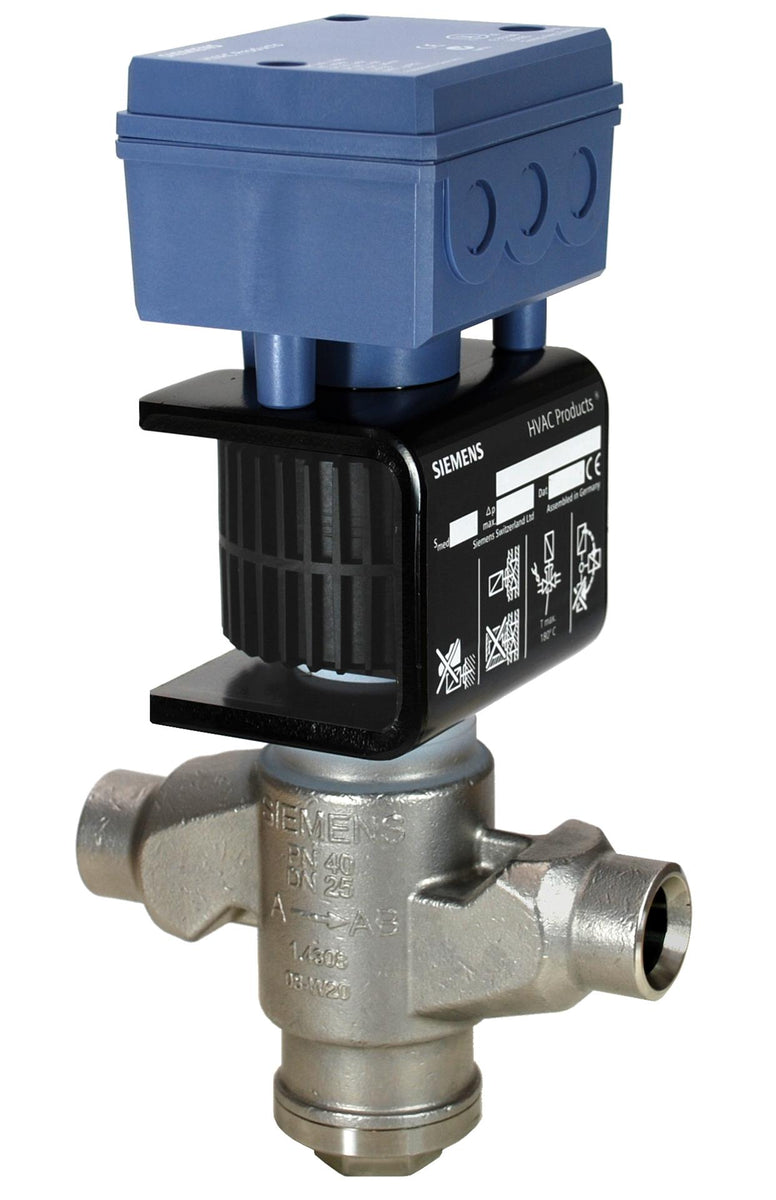

MVS661.25-0.4N | 2-port refrig valve, PN 63, DN25, 0.4kvs, 24VAC/DC, 0/2...10 VDC / 0/4...20 mA | Siemens
Hermetically sealed 2-port valves for modulating control of refrigerant circuits including chillers and heat pumps.
- Expansion gas, flash gas and suction throttle applications with one type of valve
- PN 63, stainless steel with welding connections
- Integrated power electronic with precise position feedback signal
- For ammonia R717 and all standard refrigerants, noncorrosive gases/liquids and CO2 (R744). It is not suited for use with inflammable refrigerants.
Overview Details for MVS661.25-0.4N
2-port refrig valve, PN 63, DN25, 0.4kvs, 24VAC/DC, 0/2...10 VDC / 0/4...20 mA
- Expansion gas, flash gas and suction throttle applications with one type of valve
- PN 63, stainless steel with welding connections
Specifications
- Ambient temperature, operation
- -25…55 °C
- Degree of protection
- IP65
- kvs
- 0.4 m³/h
- kvs reduced
- 0.25 m³/h
- Leakage rate
- 0.002 % of kvs
- Material, inside set
- CrNi steel
- Material, valve body
- Steel / CrNi steel
- Medium temperature
- -40…120 °C; -40…248 ºF
- Mounting position
- Upright to horizontal
- Nominal pressure
- PN 63
- Operating voltage
- 24 VAC, 20…30 VDC
- Permissible operating pressure
- 6300 kPa
- Position feedback
- DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Positioning signal
- DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
- Positioning time
- 1 s
- Power consumption
- 22 VA
- Spring return function
- Closed
- Valve characteristic
- Linear
- Δpmax
- 2500 kPa
- Operating range
- DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Stroke resolution ΔH/H100
- 1:1000
- Material, valve body
- Steel / CrNi steel
- Dimensions (W x H x D)
- 6.3 x 11.22 x 4.02 in
- DN
- 25
