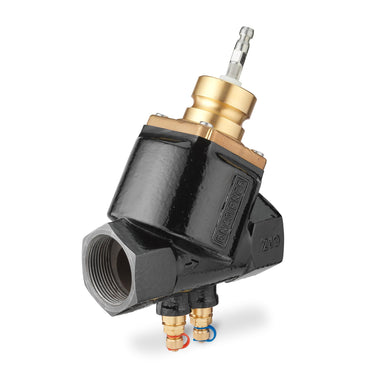

599-04315-25 | PICV, 1-1/2 inch, Normally Open, 25 GPM max. flow preset | Siemens

Pressure Independent Control Valve, 1-1/2 inch, Normally Open, preset to 25 GPM maximum flow (field adjustable)

Brand: SiemensSKU: 599-04315-25

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 599-04315-25

PICV, 1-1/2 inch, Normally Open, 25 GPM max. flow preset

Pressure Independent Control Valve, 1-1/2 inch, Normally Open, preset to 25 GPM maximum flow (field adjustable)

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Ductile Iron
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 40 gpm
DN: 40
Min GPM: 10 gpm
Preset GPM: 25 gpm
Leakage rate: ANSI Class IV (0.01%)
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 15 mm
Dimensions (W x H x D): 3.7 x 8.54 x 5.47 in
