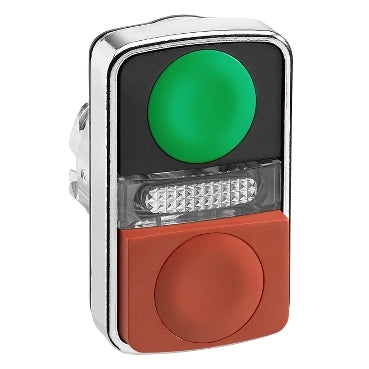

Harmony XB4, Illuminated double-headed push button head,metal, Ø22, 1 green fLush + 1 pilot light + 1 red projecting, unmarked

This Harmony XB4, illuminated double head has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its pilot light and illuminated head with clear colors, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

Specifications

Range of Product
Harmony XB4
Product or Component Type
Head for illuminated double-headed push-button
Product Compatibility
Integral LED
Device short name
ZB4
Bezel material
Chromium plated metal
Head type
Standard
Mounting diameter
0.87 in (22 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
type of operator
spring return
Operator profile
1 flush - 1 projecting push-buttons - 1 central pilot light
Operators description
Green unmarked - red unmarked
CAD overall width
1.18 in (30 mm)
CAD overall height
1.97 in (50 mm)
CAD overall depth
1.18 in (30 mm)
Net Weight
0.12 lb(US) (0.056 kg)
resistance to high pressure washer
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Colour of marking
White marking when green, red or black caps, Black marking when white caps
operator profile
Green flush, unmarked, Red projecting, unmarked
Mechanical durability
1000000 cycles
electrical composition code
M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED
Device presentation
Basic sub-assemblies
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
electrical shock protection class
Class I IEC 61140
IP degree of protection
IP66 IEC 60529, IP69K, IP69 IEC 60529
NEMA degree of protection
NEMA 13, NEMA 4X
IK degree of protection
IK06 IEC 50102
standards
EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-5-1, UL 508, EN/IEC 60947-5-5, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1
Product Certifications
DNV, BV, CSA, GL, UL Listed, LROS (Lloyds register of shipping)
vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category
22468-PUSHBUTTONS,22MM(METAL) NEW
Discount Schedule
CS2
GTIN
3389119043762
Returnability
Yes
Country of origin
FR
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.30 in (3.3 cm)
Package 1 Width
2.09 in (5.3 cm)
Package 1 Length
2.17 in (5.5 cm)
Package 1 Weight
2.01 oz (57 g)
Unit Type of Package 2
BB1
Number of Units in Package 2
5
Package 2 Height
2.17 in (5.5 cm)
Package 2 Width
1.30 in (3.3 cm)
Package 2 Length
10.43 in (26.5 cm)
Package 2 Weight
10.16 oz (288 g)
Unit Type of Package 3
S02
Number of Units in Package 3
100
Package 3 Height
5.91 in (15 cm)
Package 3 Width
11.81 in (30 cm)
Package 3 Length
15.75 in (40 cm)
Package 3 Weight
13.35 lb(US) (6.056 kg)
Warranty
18 months
