VCCF5 | TeSys Vario Emergency stop switch disconnector, 125 A, Back of enclosure | Square D by Schneider Electric

Square D | VCCF5
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VCCF5

Documents and manuals

Square D VCCF5 Documents

Overview

Details for VCCF5

TeSys Vario Emergency stop switch disconnector, 125 A, Back of enclosure

TeSys Vario Emergency stop switch disconnector
  • rated operational voltage : 690 V AC 50/60 Hz
  • Conventional free air thermal current : 125 A
  • rated operational current : 68.5 A AC-23 Ue: 400 V
  • Poles description : 3P
  • contacts type and composition : 3 NO

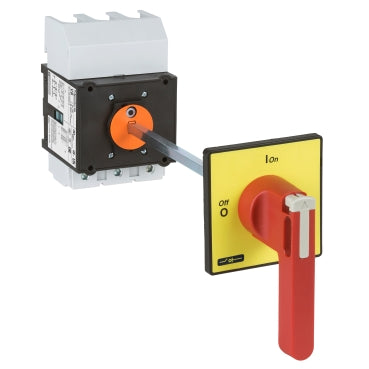

VCCF5 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 125A 690V, it is used for main and emergency stop switching in motor applications up to 37kW@400V AC-23. Composed of a V5 switch body, extension shaft, red padlockable handle, and a yellow 90x90mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Possible distance between back of enclosure and door 330-350mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications

Range
TeSys
Product Name
TeSys VARIO
Device Short Name
VCCF
Product Type
Emergency stop switch disconnector
Device Composition
Handle;Switch;Shaft extension
Mounting Support
Handle door;Switch symmetrical rail;Switch plate
Mounting Method
By 4 screws handle;By clips switch;By screws switch
Performance Level
High performance
Number of Poles
3P
Contact Type and Composition
3 NO
[Ue] IEC Rated Operational Voltage
690 V AC 50/60 Hz
IEC Rated Operational Power in W
22 kW 230...240 V AC-3);30 kW 400...415 V AC-3);30 kW 690 V AC-3);37 kW 500 V AC-3);37 kW 690 V AC-23A);45 kW 500 V AC-23A);22 kW 230...240 V AC-23A);37 kW 400...415 V AC-23A)
[Ie] Rated Operational Current
68.5 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current
125 A
[Ithe] Conventional Enclosed Thermal Current
100 A
Making Capacity ( I Rms)
1250 A 400 V AC-21A;1250 A 400 V AC-22A;1250 A 400 V AC-23A
Breaking Capacity
1000 A 400 V AC-21A);1000 A 400 V AC-22A);1000 A 400 V AC-23A)
Rated Conditional Short Circuit Current
10 kA 400 V 125 A aM;10 kA 400 V 125 A gG
[Icm] Rated Short Circuit Making Capacity
2.8 kA 400 V at Ipeak
[Icw] Rated Short Time Withstand Current
1500 A 400 V 1 s
[Uimp] Rated Impulse Withstand Voltage
8 kV
Suitability for Isolation
Yes
Network Type
DC;AC
Intermittent Duty Class
30
Control Type
Rotary handle
Rotary Handle Mounting Style
Extended
Handle Color
Red
Handle Front Plate Color
Yellow
Rotary Handle Padlocking
1 to 3 padlocks 0.16…0.31 in (4…8 mm)
Marking
0 - 1
Mechanical Durability
30000 cycles
Electrical Durability
30000 cycles AC-21;30000 cycles DC-1...5
IEC Terminal Connection
Power circuit screw clamp terminals 0.15 in² (95 mm²) solid;Power circuit screw clamp terminals 0.11 in² (70 mm²) flexible - with cable end
Tightening Torque
Power circuit 200.03 lbf.in (22.6 N.m) screw clamp terminals
Base Dimension
90 x 90 mm
Height
4.92 in (125 mm)
Width
3.54 in (90 mm)
Product Weight
2.91 lb(US) (1.32 kg)
Standards
IEC 60947-3
Product Certifications
CCC;UL;CSA;GL;UKCA
Degree of Protection
IP20 conforming to IEC 60529;IP65
Protective Treatment
TC
Mechanical Robustness
Vibrations 10...150 Hz 1 gn) IEC 60068-2-6;Shocks 11 ms 30 Gn) IEC 60068-2-27
Ambient Air Temperature for Operation
-4…122 °F (-20…50 °C)
Fire Resistance
1760 °F (960 °C) IEC 60695-2-1
Compatibility Code
Main switch disconnector
Category
21730-V VARIO SWITCH
Discount Schedule
CP1
GTIN
3389110804652
Returnability
Yes
Country of origin
CZ
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.94 in (10 cm)
Package 1 Width
4.53 in (11.5 cm)
Package 1 Length
11.81 in (30 cm)
Package 1 Weight
2.80 lb(US) (1.269 kg)
Unit Type of Package 2
S03
Number of Units in Package 2
4
Package 2 Height
11.81 in (30 cm)
Package 2 Width
11.81 in (30 cm)
Package 2 Length
15.75 in (40 cm)
Package 2 Weight
12.23 lb(US) (5.547 kg)
Unit Type of Package 3
P06
Number of Units in Package 3
32
Package 3 Height
30.31 in (77 cm)
Package 3 Width
31.50 in (80 cm)
Package 3 Length
23.62 in (60 cm)
Package 3 Weight
134.74 lb(US) (61.115 kg)
Warranty
18 months
