TeSys Vario emergency stop switch disconnector, 63 A, back of enclosure

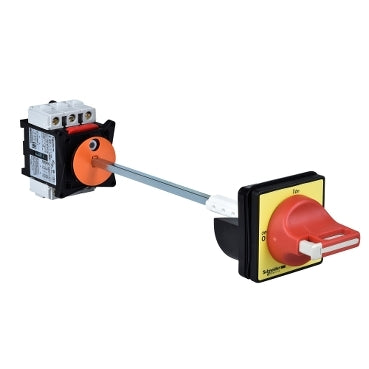

TeSys Vario, emergency stop switch disconnector, 63 A, back of enclosure VCCF3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 63A 690V, it is used for main and emergency stop switching in motor applications up to 22kW@400V AC-23. Composed of a V3 switch body, extension shaft, red padlockable handle, and a yellow 60x60mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Possible distance between back of enclosure and door 300-320mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).Specifications
- Range
- TeSys
- Product Name
- TeSys VARIO
- Device Short Name
- VCCF
- Product Type
- Emergency stop switch disconnector
- Device Composition
- Switch;Handle;Shaft extension
- Mounting Support
- Handle door;Switch symmetrical rail;Switch plate
- Mounting Method
- By 4 screws handle;By clips switch;By screws switch
- Performance Level
- High performance
- Number of Poles
- 3P
- Contact Type and Composition
- 3 NO
- [Ue] IEC Rated Operational Voltage
- 690 V AC 50/60 Hz
- IEC Rated Operational Power in W
- 11 kW 230...240 V AC-3);22 kW 500 V AC-3);22 kW 690 V AC-23A);30 kW 500 V AC-23A);18.5 kW 400...415 V AC-3);18.5 kW 690 V AC-3);15 kW 230...240 V AC-23A);22 kW 400...415 V AC-23A)
- [Ie] Rated Operational Current
- 41.5 A AC-23 Ue: 400 V
- [Ith] Conventional Free Air Thermal Current
- 63 A
- [Ithe] Conventional Enclosed Thermal Current
- 50 A
- Making Capacity ( I Rms)
- 630 A 400 V AC-21A;630 A 400 V AC-22A;630 A 400 V AC-23A
- Breaking Capacity
- 500 A 400 V AC-21A);500 A 400 V AC-22A);500 A 400 V AC-23A)
- Rated Conditional Short Circuit Current
- 10 kA 400 V 63 A aM;10 kA 400 V 63 A gG
- [Icm] Rated Short Circuit Making Capacity
- 2.1 kA 400 V at Ipeak
- [Icw] Rated Short Time Withstand Current
- 756 A 400 V 1 s
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Suitability for Isolation
- Yes
- Network Type
- DC;AC
- Intermittent Duty Class
- 30
- Control Type
- Rotary handle
- Rotary Handle Mounting Style
- Extended
- Handle Color
- Red
- Handle Front Plate Color
- Yellow
- Rotary Handle Padlocking
- 1 to 3 padlocks 0.16…0.31 in (4…8 mm)
- Marking
- 0 - 1
- Mechanical Durability
- 30000 cycles
- Electrical Durability
- 30000 cycles AC-21;30000 cycles DC-1...5
- IEC Terminal Connection
- Power circuit screw clamp terminals 0.04 in² (25 mm²) solid;Power circuit screw clamp terminals 0.02 in² (16 mm²) flexible - with cable end
- Tightening Torque
- Power circuit 35.40 lbf.in (4 N.m) screw clamp terminals
- Base Dimension
- 60 x 60 mm
- Height
- 3.27 in (83 mm)
- Width
- 2.36 in (60 mm)
- Product Weight
- 0.97 lb(US) (0.44 kg)
- Standards
- IEC 60947-3
- Product Certifications
- UL;CCC;GL;CSA;UKCA
- Degree of Protection
- IP20 conforming to IEC 60529;IP65
- Protective Treatment
- TC
- Mechanical Robustness
- Vibrations 10...150 Hz 1 gn) IEC 60068-2-6;Shocks 11 ms 30 Gn) IEC 60068-2-27
- Ambient Air Temperature for Operation
- -4…122 °F (-20…50 °C)
- Fire Resistance
- 1760 °F (960 °C) IEC 60695-2-1
- Compatibility Code
- Main switch disconnector
- Category
- 21730-V VARIO SWITCH
- Discount Schedule
- CP1
- GTIN
- 3389110194005
- Returnability
- Yes
- Country of origin
- CZ
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.61 in (29.500 cm)
- Package 1 Width
- 4.53 in (11.500 cm)
- Package 1 Length
- 3.82 in (9.700 cm)
- Package 1 Weight
- 20.11 oz (570.0 g)
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 55
- Package 2 Height
- 28.94 in (73.500 cm)
- Package 2 Width
- 31.50 in (80.000 cm)
- Package 2 Length
- 23.62 in (60.000 cm)
- Package 2 Weight
- 106.51 lb(US) (48.310 kg)
- Warranty
- 18 months
