9422A7 | Operating mechanism, flange mounted, variable depth, handle mechanism, 12 inch handle, NEMA 1, 3R, 4 sheet steel and 12 enclosure | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9422A7
Overview
Details for 9422A7

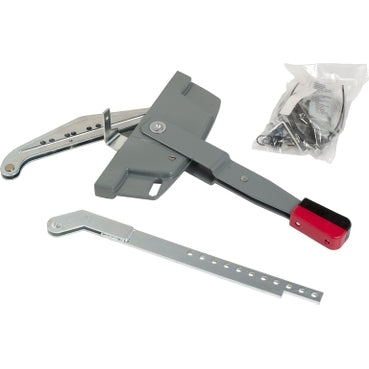

Operating mechanism, flange mounted, variable depth, handle mechanism, 12 inch handle, NEMA 1, 3R, 4 sheet steel and 12 enclosure
Handle mechanism kits are used with all disconnect switch and circuit breaker installations. The kits contain all parts necessary for mounting the handle to the flange of the enclosure. The 9422A7 handle mechanism is for use with 400A 9422TG1 or 9422TG2 operating mechanisms. The 9422A7 handle mechanism is suitable for right hand flange mounting only. Handle mechanism has a 12 inch handle. Handle mechanism is for use in enclosures rated NEMA 1, 3, 3R, 4 (sheet steel) and 12. Mechanism is UL Component Recognized and CSA certifiedSpecifications
- Product
- Handle Mechanism
- For Use With
- 9422TG2 disconnect switch;9422TG1 disconnect switch
- Product Type
- Variable depth
- product destination
- 9422TG1 disconnect switch;9422TG2 disconnect switch
- Enclosure Types
- NEMA 1/3/3R/4/12 enclosures
- Handle Length
- 12 in (304.80 mm)
- Category
- 21732-9422
- Discount Schedule
- CP1
- GTIN
- 785901624899
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.82 in (22.4 cm)
- Package 1 Width
- 11.18 in (28.4 cm)
- Package 1 Length
- 19.49 in (49.5 cm)
- Package 1 Weight
- 6.00 lb(US) (2.72 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 32
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 36.00 in (91.44 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 192.00 lb(US) (87.09 kg)
- Warranty
- 18 months
