VLS3P032R1 | TeSys VLS - Body switch disconnector, 3 poles, 32 A, on DIN rail | Square D by Schneider Electric

Brand: Square DSKU: VLS3P032R1

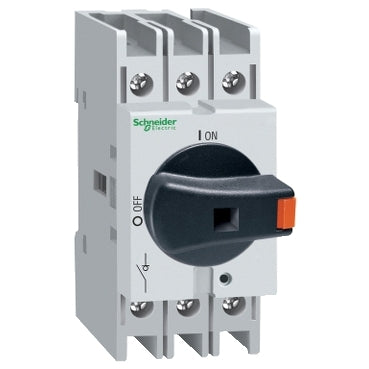

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VLS3P032R1

Jump to: Overview & Specifications Reviews

Overview Details for VLS3P032R1

TeSys VLS - Body switch disconnector, 3 poles, 32 A, on DIN rail

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 32A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10 HP rating at 200 to 208 VAC and 240 VAC, a 20 HP rating at 480 VAC and a 20 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 15 kW rating at 400 V, a 18.5 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.42 inches wide and 2.95 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is cULus Listed and meets IEC 60947-3 requirements.

Specifications

Range: TeSys
Product Name: TeSys VARIO LS
Device Short Name: VLS3P
Product Type: Switch body
Device Composition: Handle;Switch
Mounting Support: Back DIN rail
Mounting Method: By clips back
Performance Level: High performance
Number of Poles: 3P
Contact Type and Composition: 3 NO
Color: Gray
[Ue] UL Rated Operational Voltage: 600 V AC 50/60 Hz UL 508
[Ue] IEC Rated Operational Voltage: 690 V AC 50/60 Hz
UL Maxium Horsepower Ratings: 10 hp 200/208 V AC;10 hp 240 V AC;20 hp 480 V AC;20 hp 600 V AC;2 hp 120 V AC;5 hp 240 V AC
IEC Rated Operational Power in W: 15 kW 400 V AC-23A);18.5 kW 500 V AC-23A);22 kW 690 V AC-23A)
[Ie] Rated Operational Current: 32 A Ue: 600 V UL 508;32 A AC-21A Ue: 400 V;32 A AC-21A Ue: 500 V;32 A AC-21A Ue: 690 V;32 A AC-22A Ue: 400 V;32 A AC-22A Ue: 500 V;32 A AC-22A Ue: 690 V;32 A AC-23A Ue: 400 V;25 A AC-23A Ue: 500 V;25 A AC-23A Ue: 690 V
[Ith] Conventional Free Air Thermal Current: 32 A 131 °F (55 °C)
[Ithe] Conventional Enclosed Thermal Current: 32 A
Making Capacity ( I Rms): 48 A 690 V AC-21A;96 A 690 V AC-22A;320 A 690 V AC-23A
Breaking Capacity: 48 A 690 V AC-21A);96 A 690 V AC-22A);256 A 690 V AC-23A)
SCCR: Fuse RK5 45 A maximum: 5 kA at 600 V AC
Rated Conditional Short Circuit Current: 50 kA 400 V 32 A gG
[Icm] Rated Short Circuit Making Capacity: 1128 A 690 V
[Icw] Rated Short Time Withstand Current: 800 A 690 V 1 s
[Uimp] Rated Impulse Withstand Voltage: 8 kV
Suitability for Isolation: Yes
Network Type: AC
Network Frequency: 50/60 Hz
Intermittent Duty Class: Class 120 - 60 %
Control Type: Rotary handle
Rotary Handle Mounting Style: Direct
Handle Color: Black
Handle Front Plate Color: Grey
Rotary Handle Padlocking: 1 padlock 0.16 in (4 mm)
Marking: 0 - 1
Mechanical Durability: 100000 cycles
Electrical Durability: 100000 cycles AC-21A
UL Wire Size: AWG 18...AWG 6 copper
IEC Terminal Connection: Power circuit screw clamp terminals 0.02 in² (10 mm²) solid;Power circuit screw clamp terminals 0.02 in² (16 mm²) flexible - without cable end
Tightening Torque: Power circuit 15.93…17.70 lbf.in (1.8…2 N.m) screw clamp terminals
Height: 2.95 in (75 mm)
Width: 1.42 in (36 mm)
Depth: 3.07 in (78 mm)
Product Weight: 0.30 lb(US) (0.135 kg)
Standards: UL 508;CSA C22.2 No 14;IEC 60947-3
Product Certifications: cULus;GL
Degree of Protection: IP20 conforming to IEC 60529
Mechanical Robustness: Vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6;Shocks 11 ms Ea 15 gn) IEC 60068-2-27
Ambient Air Temperature for Operation: -13…131 °F (-25…55 °C)
Fire Resistance: 1760 °F (960 °C) IEC 60695-2-11
Compatibility Code: VLS
Category: 21734-TESYS VLS DISCONNECT SWITCHES
Discount Schedule: CP1
GTIN: 3606481156457
Returnability: Yes
Country of origin: IT
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.15 in (8.0 cm)
Package 1 Width: 3.35 in (8.5 cm)
Package 1 Length: 4.72 in (12.0 cm)
Package 1 Weight: 6.00 oz (170.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 27
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 11.13 lb(US) (5.05 kg)
