Documents: TM221M16R

Datasheet More Info

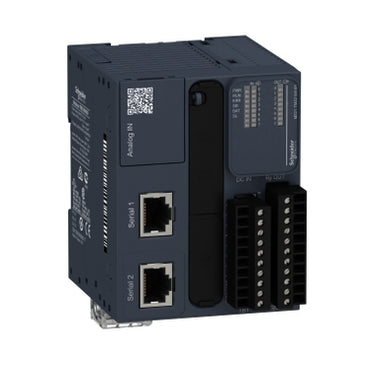

TM221M16R | Logic controller, Modicon M221, 16 IO relay | Square D by Schneider Electric

Brand: Square DSKU: TM221M16R

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TM221M16R

Jump to: Overview & Specifications Reviews

Overview Details for TM221M16R

Logic controller, Modicon M221, 16 IO relay

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete inputs and 8 relay outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 24V DC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.264kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Specifications

Range of Product: Modicon M221
Product or Component Type: Logic controller
[Us] rated supply voltage: 24 V DC
discrete input number: 8, discrete input IEC 61131-2 Type 1
analogue input number: 2 0...10 V
Discrete output type: Relay normally open
discrete output number: 8 relay
discrete output voltage: 5...125 V DC, 5...250 V AC
discrete output current: 2 A
Discrete I/O number: 16
maximum number of I/O expansion module: 7 relay output
Supply voltage limits: 20.4…28.8 V
Inrush current: 35 A
maximum power consumption in W: 22.5 W 24 V with max number of I/O expansion module), 3.6 W 24 V without I/O expansion module)
power supply output current: 0.52 A 5 V expansion bus, 0.46 A 24 V expansion bus
discrete input logic: Sink or source (positive/negative)
Discrete input voltage: 24 V
Discrete input voltage type: DC
Analogue input resolution: 10 bits
LSB value: 10 mV
conversion time: 1 ms per channel + 1 controller cycle time analog input
permitted overload on inputs: +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input
voltage state 1 guaranteed: >= 15 V input
voltage state 0 guaranteed: <= 5 V input
discrete input current: 7 mA discrete input, 5 mA fast input
input impedance: 100 kOhm analog input, 3.4 kOhm input, 4.9 kOhm fast input
response time: 35 µs turn-off, I2...I5 input, 10 ms turn-on output, 10 ms turn-off output, 5 µs turn-on, I0, I1, I6, I7 fast input, 35 µs turn-on, other terminals input, 5 µs turn-off, I0, I1, I6, I7 fast input, 100 µs turn-off, other terminals input
configurable filtering time: 0 ms input, 3 ms input, 12 ms input
output voltage limits: 125 V DC, 277 V AC
maximum current per output common: 7 A
absolute accuracy error: +/- 1 % of full scale analog input
electrical durability: 100000 cycles AC-12, 120 V, 240 VA, resistive, 100000 cycles AC-12, 240 V, 480 VA, resistive, 300000 cycles AC-12, 120 V, 80 VA, resistive, 300000 cycles AC-12, 240 V, 160 VA, resistive, 100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive, 100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive, 300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive, 300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive, 100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive, 100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive, 300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive, 300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive, 100000 cycles DC-12, 24 V, 48 W, resistive, 300000 cycles DC-12, 24 V, 16 W, resistive, 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms), 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
switching frequency: 20 switching operations/minute with maximum load
mechanical durability: 20000000 cycles relay output
minimum load: 1 mA 5 V DC relay output
protection type: Without protection 5 A
reset time: 1 s
memory capacity: 256 kB user application and data RAM 10000 instructions, 256 kB internal variables RAM
data backed up: 256 kB built-in flash memory backup of application and data
data storage equipment: 2 GB SD card optional)
battery type: BR2032 lithium non-rechargeable 4 year(s)
backup time: 1 year 77 °F (25 °C) by interruption of power supply)
execution time for 1 KInstruction: 0.3 ms event and periodic task, 0.7 ms other instruction
execution time per instruction: 0.2 µs Boolean
exct time for event task: 60 µs response time
Application structure: 1 configurable freewheeling/cyclic master task, 1 cyclic auxiliary task, 8 interrupt tasks
Maximum size of object areas: 255 %TM timers, 8000 %MW memory words, 255 %C counters, 512 %M memory bits, 512 %KW constant words
Realtime clock: With
clock drift: <= 30 s/month 77 °F (25 °C)
regulation loop: Adjustable PID regulator up to 14 simultaneous loops
counting input number: 4 fast input (HSC mode) 100 kHz 32 bits
counter function: Pulse/direction, A/B, Single phase
integrated connection type: USB port mini B USB 2.0, Non isolated serial link serial 1 RJ45 RS485, Non isolated serial link serial 2 RJ45 RS232/RS485
supply: Serial 1)serial link supply 5 V, <200 mA
transmission rate: 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232, 480 Mbit/s USB
communication port protocol: USB port USB - SoMachine-Network, Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Communication Service: Modbus slave, Modbus master
local signalling: for PWR 1 LED (green), for RUN 1 LED (green), for module error (ERR) 1 LED (red), for SD card access (SD) 1 LED (green), for BAT 1 LED (red), for SL1 1 LED (green), for SL2 1 LED (green), for I/O state 1 LED per channel (green)
electrical connection: terminal block, 3 for connecting the 24 V DC power supply, connector, 4 for analogue inputs, Mini B USB 2.0 connector for a programming terminal, removable screw terminal block, 10 for inputs, removable screw terminal block, 11 for outputs
maximum cable distance between devices: Shielded cable <32.81 ft (10 m) fast input, Unshielded cable <98.43 ft (30 m) output, Unshielded cable <98.43 ft (30 m) digital input, Unshielded cable <3.28 ft (1 m) analog input
insulation: Between input and internal logic 500 V AC, Between fast input and internal logic 500 V AC, Non-insulated between inputs, Between output and internal logic 500 V AC, Between output groups 500 V AC, Non-insulated between analogue input and internal logic, Non-insulated between analogue inputs
Marking: CE
mounting support: Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Height: 3.54 in (90 mm)
Depth: 2.76 in (70 mm)
Width: 2.76 in (70 mm)
Net Weight: 0.58 lb(US) (0.264 kg)
standards: EN/IEC 61131-2, EN/IEC 60664-1, EN/IEC 61010-2-201
Product Certifications: DNV-GL, ABS, LR, cULus, CSA, RCM, IACS E10, EAC
Environmental characteristic: Ordinary and hazardous location
resistance to electrostatic discharge: 8 kV in air EN/IEC 61000-4-2, 4 kV on contact EN/IEC 61000-4-2
resistance to electromagnetic fields: 9.14 V/m (10 V/m) 80 MHz...1 GHz EN/IEC 61000-4-3, 2.74 V/m (3 V/m) 1.4 GHz...2 GHz EN/IEC 61000-4-3, 0.91 V/m (1 V/m) 2...2.7 GHz EN/IEC 61000-4-3
resistance to magnetic fields: 98.43 A/m (30 A/m) 50/60 Hz EN/IEC 61000-4-8
resistance to fast transients: 2 kV EN/IEC 61000-4-4 power lines), 2 kV EN/IEC 61000-4-4 relay output), 1 kV EN/IEC 61000-4-4 I/O), 1 kV EN/IEC 61000-4-4 Ethernet line), 1 kV EN/IEC 61000-4-4 serial link)
surge withstand: 2 kV power lines (AC) common mode EN/IEC 61000-4-5, 2 kV relay output common mode EN/IEC 61000-4-5, 1 kV I/O common mode EN/IEC 61000-4-5, 1 kV shielded cable common mode EN/IEC 61000-4-5, 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5, 1 kV power lines (AC) differential mode EN/IEC 61000-4-5, 1 kV relay output differential mode EN/IEC 61000-4-5, 0.5 kV power lines (DC) common mode EN/IEC 61000-4-5
resistance to conducted disturbances: 10 V 0.15...80 MHz EN/IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
electromagnetic emission: Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15…0.5 MHz EN/IEC 55011, Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5…300 MHz EN/IEC 55011, Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz EN/IEC 55011, Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz EN/IEC 55011, Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz EN/IEC 55011, Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz EN/IEC 55011, Radiated emissions 47 dBμV/m QP class A 10 m)200…1000 MHz EN/IEC 55011
Immunity to microbreaks: 10 ms
ambient air temperature for operation: 14…131 °F (-10…55 °C) horizontal installation), 14…95 °F (-10…35 °C) vertical installation)
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
relative humidity: 10…95 %, without condensation in operation), 10…95 %, without condensation in storage)
IP degree of protection: IP20 with protective cover in place
Pollution degree: <= 2
Operating altitude: 0...6561.68 ft (0...2000 m)
Storage altitude: 0.00…9842.52 ft (0…3000 m)
vibration resistance: 3.5 mm 5…8.4 Hz symmetrical rail, 3.5 mm 5…8.4 Hz panel mounting, 1 gn 8.4…150 Hz symmetrical rail, 1 gn 8.4…150 Hz panel mounting
shock resistance: 98 m/s² 11 ms
Category: 22533-M2XX PLC & ACCESSORIES
Discount Schedule: MSX
GTIN: 3606480611254
Returnability: Yes
Country of origin: TW
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.95 in (10.041 cm)
Package 1 Width: 4.26 in (10.83 cm)
Package 1 Length: 5.04 in (12.81 cm)
Package 1 Weight: 15.52 oz (440.0 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 24
Package 2 Height: 11.46 in (29.1 cm)
Package 2 Width: 15.59 in (39.6 cm)
Package 2 Length: 22.76 in (57.8 cm)
Package 2 Weight: 25.71 lb(US) (11.66 kg)
