170ADI54050 | discrete input module Modicon Momentum - 16 Input 100..120 V AC | Square D by Schneider Electric

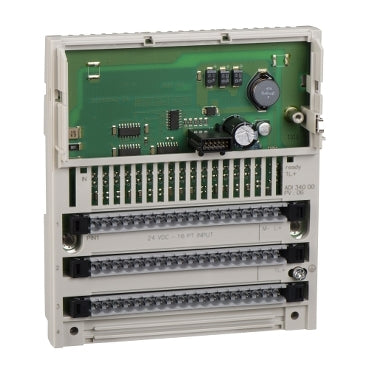

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 170ADI54050
Overview
Details for 170ADI54050
discrete input module Modicon Momentum - 16 Input 100..120 V AC
This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete input base AC module offers 2 groups of 8 inputs, conforming to IEC 1131-2 type 2 with positive discrete input logic. It is a module with discrete input voltage of 120V AC. There is an isolation between group, channels and bus at 1780V AC. It features 16 LEDs for channel status signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.284kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.Specifications
- Range of Product
- Modicon Momentum automation platform
- Product or Component Type
- Discrete inputs base AC
- Group of channels
- 2 groups of 8 inputs
- discrete input number
- 16 IEC 1131-2 Type 2
- discrete input voltage
- 120 V AC
- Protective treatment
- TC
- Discrete input logic
- Positive
- Input voltage limits
- 85...132 V
- Network Frequency
- 47...63 Hz
- Voltage range
- 0...132 V
- Voltage state 0 guaranteed
- <= 20 V
- Voltage state 1 guaranteed
- >= 74 V
- Current state 0 guaranteed
- <= 2 mA
- Current state 1 guaranteed
- >= 10 mA
- input resistance
- 7.5 kOhm 60 Hz, 9.5 kOhm 50 Hz
- response time
- 10 ms 60 Hz from state 0 to state 1, 35 ms 60 Hz from state 1 to state 0
- Isolation between group
- 1780 V AC
- Isolation between channels and bus
- 1780 V AC
- Terminals description PLC n°1
- (N)PW, (5)IN_DIS#5, (13)IN_DIS#13, (15)IN_DIS#15, (12)IN_DIS#12, (10)IN_DIS#10, (14)IN_DIS#14, (11)IN_DIS#11, (9)IN_DIS#9, (7)IN_DIS#7, (L1)PW, (1)IN_DIS#1, (8)IN_DIS#8, (2)IN_DIS#2, (6)IN_DIS#6, (16)IN_DIS#16, (3)IN_DIS#3, TB, (4)IN_DIS#4
- Marking
- CE
- local signalling
- for channel status 16 LEDs
- current consumption
- <= 125 mA 120 V AC
- Depth
- 1.87 in (47.5 mm)
- Height
- 5.57 in (141.5 mm)
- Width
- 4.92 in (125 mm)
- Net Weight
- 0.63 lb(US) (0.284 kg)
- Product Certifications
- UL, FM Class 1 Division 2, CSA
- resistance to electrostatic discharge
- 4 kV contact IEC 801-2, 8 kV on air IEC 801-2
- resistance to electromagnetic fields
- 9.14 V/m (10 V/m) 80...1000 MHz IEC 801-3
- Ambient Air Temperature for Operation
- 32…140 °F (0…60 °C)
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- Relative Humidity
- 95 % without condensation
- Operating altitude
- <= 16404.2 ft (5000 m)
- Category
- 18206-MOMENTUM PROCESSORS,I/O BASES,CONN.
- Discount Schedule
- PC31
- GTIN
- 3595861147522
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.54 in (9.0 cm)
- Package 1 Width
- 7.09 in (18.0 cm)
- Package 1 Length
- 10.24 in (26.0 cm)
- Package 1 Weight
- 17.67 oz (501.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 6
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 6.63 lb(US) (3.006 kg)
- Warranty
- 18 months
