TM241CE40R | Logic controller, Modicon M241, 40 IO relay Ethernet | Square D by Schneider Electric

Brand: Square DSKU: TM241CE40R

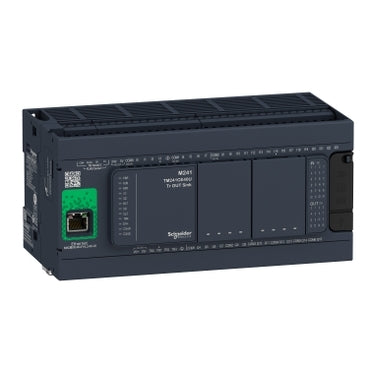

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TM241CE40R

Jump to: Overview & Specifications Reviews

Overview Details for TM241CE40R

Logic controller, Modicon M241, 40 IO relay Ethernet

This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 24 discrete, 8 fast inputs, 12 relay, 4 transistor, 4 fast outputs with transistor, ethernet relay output. It has a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC or 5V to 250V AC for relay, 24V DC for transistor and an output current of 2A for relay, 0.1A for fast output, 0.5A for transistor. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link 1 with RJ45 connector and RS232/RS485 interface and non isolated serial link 2 with removable screw terminal block connector and RS485 interface. It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 190mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.62kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.

Specifications

Range of Product: Modicon M241
Product or Component Type: Logic controller
[Us] rated supply voltage: 100...240 V AC
discrete input number: 24;discrete input 8 fast input IEC 61131-2 Type 1
discrete output type: Relay;Transistor
discrete output number: 4 transistor 4 fast output;12 relay
discrete output voltage: 5...125 V DC relay output;5...250 V AC relay output;24 V DC transistor output
discrete output current: 0.1 A fast output (PTO mode) TR0...TR3);2 A relay output Q4...Q15);0.5 A transistor output TR0...TR3)
discrete I/O number: 40
maximum number of I/O expansion module: 7 (local I/O-Architecture);14 (remote I/O-Architecture)
supply voltage limits: 85…264 V
Network Frequency: 50/60 Hz
discrete input logic: Sink or source
discrete input voltage: 24 V
discrete input voltage type: DC
voltage state 1 guaranteed: >= 15 V input
voltage state 0 guaranteed: <= 5 V input
discrete input current: 7 mA input
input impedance: 4.7 kOhm input
response time: 50 µs turn-on;I0...I15 input
configurable filtering time: 1 µs fast input
discrete output logic: Positive logic (source)
output voltage limits: 125 V DC relay output;30 V DC transistor output;277 V AC relay output
maximum output frequency: 1 kHz transistor output;20 kHz fast output (PWM mode);100 kHz fast output (PLS mode)
accuracy: +/- 0.1 % 0.02…0.1 kHz fast output;+/- 1 % 0.1…1 kHz fast output
protection type: Short-circuit protection transistor output;Short-circuit and overload protection with automatic reset transistor output;Reverse polarity protection transistor output;Without protection relay output
reset time: 10 ms automatic reset output;12 s automatic reset fast output
memory capacity: 8 MB program;64 MB system memory RAM
data backed up: 128 MB built-in flash memory backup of user programs
data storage equipment: <= 16 GB SD card optional)
battery type: BR2032 lithium non-rechargeable 4 year(s)
backup time: 2 years 77 °F (25 °C)
execution time for 1 KInstruction: 0.3 ms event and periodic task;0.7 ms other instruction
application structure: 4 cyclic master tasks;8 event tasks;8 external event tasks;3 cyclic master tasks + 1 freewheeling task
realtime clock: With
clock drift: <= 60 s/month 77 °F (25 °C)
positioning functions: PTO 4 100 kHz)
counting input number: 4 fast input (HSC mode) 200 kHz;14 standard input 1 kHz
control signal type: A/B 100 kHz fast input (HSC mode);Pulse/direction 200 kHz fast input (HSC mode);Single phase 200 kHz fast input (HSC mode)
integrated connection type: Non isolated serial link serial 1 RJ45 RS232/RS485;Non isolated serial link serial 2 removable screw terminal block RS485;USB port mini B USB 2.0;Ethernet RJ45
supply: Serial 1)serial link supply 5 V;<200 mA
transmission rate: 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485;1.2...115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232;480 Mbit/s 9.84 ft (3 m) USB;10/100 Mbit/s Ethernet
communication port protocol: Non isolated serial link Modbus master/slave
port Ethernet: 10BASE-T/100BASE-TX - 1 copper cable
ethernet services: FDR;DHCP server via TM4 Ethernet switch network module;DHCP client embedded Ethernet port;SMS notifications;Updating firmware;SNMP client/server;Programming;NGVL;Monitoring;IEC VAR ACCESS;FTP client/server;Downloading;SQL client;Modbus TCP client I/O scanner;Ethernet/IP originator I/O scanner embedded Ethernet port;Ethernet/IP target;Modbus TCP server and Modbus TCP slave;Send and receive email from the controller based on TCP/UDP library;Web server (WebVisu & XWeb system);OPC UA server;DNS client
local signalling: for PWR 1 LED (green);for RUN 1 LED (green);for module error (ERR) 1 LED (red);for I/O error (I/O) 1 LED (red);for SD card access (SD) 1 LED (green);for BAT 1 LED (red);for SL1 1 LED (green);for SL2 1 LED (green);for bus fault on TM4 (TM4) 1 LED (red);for I/O state 1 LED per channel (green);for Ethernet port activity 1 LED (green)
electrical connection: removable screw terminal block for inputs and outputs pitch 5.08 mm);removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
maximum cable distance between devices: Unshielded cable <164.04 ft (50 m) input;Shielded cable <32.81 ft (10 m) fast input;Unshielded cable <164.04 ft (50 m) output;Shielded cable <9.84 ft (3 m) fast output
insulation: Between supply and internal logic 500 V AC;Non-insulated between supply and ground
Marking: CE
sensor power supply: 24 V DC 400 mA supplied by the controller
surge withstand: 2 kV power lines (AC) common mode EN/IEC 61000-4-5;2 kV relay output common mode EN/IEC 61000-4-5;1 kV shielded cable common mode EN/IEC 61000-4-5;1 kV power lines (AC) differential mode EN/IEC 61000-4-5;1 kV relay output differential mode EN/IEC 61000-4-5;1 kV input common mode EN/IEC 61000-4-5;1 kV transistor output common mode EN/IEC 61000-4-5
web services: Web server
maximum number of connections: 8 Modbus server;8 SoMachine protocol;10 web server;4 FTP server;16 Ethernet/IP target;8 Modbus client
number of slave: 64 Modbus TCP;16 EtherNet/IP
cycle time: 10 ms 16 EtherNet/IP;64 ms 64 Modbus TCP
mounting support: Top hat type TH35-15 rail IEC 60715;Top hat type TH35-7.5 rail IEC 60715;plate or panel with fixing kit
Height: 3.54 in (90 mm)
Depth: 3.74 in (95 mm)
Width: 7.48 in (190 mm)
Net Weight: 1.37 lb(US) (0.62 kg)
Standards: ANSI/ISA 12-12-01;CSA C22.2 No 142;CSA C22.2 No 213;EN/IEC 61131-2:2007;Marine specification (LR;ABS;DNV;GL);UL 1604;UL 508
Product Certifications: RCM;CSA;cULus;IACS E10
resistance to electrostatic discharge: 8 kV in air EN/IEC 61000-4-2;4 kV on contact EN/IEC 61000-4-2
resistance to electromagnetic fields: 9.14 V/m (10 V/m) 80 MHz...1 GHz EN/IEC 61000-4-3;2.74 V/m (3 V/m) 1.4 GHz...2 GHz EN/IEC 61000-4-3;0.91 V/m (1 V/m) 2 GHz...3 GHz EN/IEC 61000-4-3
resistance to fast transients: 2 kV EN/IEC 61000-4-4 power lines);2 kV EN/IEC 61000-4-4 relay output);1 kV EN/IEC 61000-4-4 Ethernet line);1 kV EN/IEC 61000-4-4 serial link);1 kV EN/IEC 61000-4-4 input);1 kV EN/IEC 61000-4-4 transistor output)
resistance to conducted disturbances: 10 V 0.15...80 MHz EN/IEC 61000-4-6;3 V 0.1...80 MHz Marine specification (LR;ABS;DNV;GL);10 V spot frequency (2;3;4;6.2;8.2;12.6;16.5;18.8;22;25 MHz) Marine specification (LR;ABS;DNV;GL)
electromagnetic emission: Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz EN/IEC 55011;Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz EN/IEC 55011;Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines)0.15…0.5 MHz EN/IEC 55011;Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines)0.5…300 MHz EN/IEC 55011;Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz EN/IEC 55011;Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz EN/IEC 55011;Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz EN/IEC 55011
immunity to microbreaks: 10 ms
ambient air temperature for operation: 14…122 °F (-10…50 °C) vertical installation);14…131 °F (-10…55 °C) horizontal installation)
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
relative humidity: 10…95 %;without condensation in operation);10…95 %;without condensation in storage)
IP degree of protection: IP20 with protective cover in place
pollution degree: 2
Operating altitude: 0...6561.68 ft (0...2000 m)
Storage altitude: 0.00…9842.52 ft (0…3000 m)
vibration resistance: 3.5 mm 5…8.4 Hz symmetrical rail;3 gn 8.4…150 Hz symmetrical rail;3.5 mm 5…8.4 Hz panel mounting;3 gn 8.4…150 Hz panel mounting
shock resistance: 15 gn 11 ms
Category: 22533-M2XX PLC & ACCESSORIES
Discount Schedule: MSX
GTIN: 3606480648847
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.04 in (12.8 cm)
Package 1 Width: 8.90 in (22.6 cm)
Package 1 Length: 4.53 in (11.5 cm)
Package 1 Weight: 32.91 oz (933.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 6
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 12.85 lb(US) (5.827 kg)
