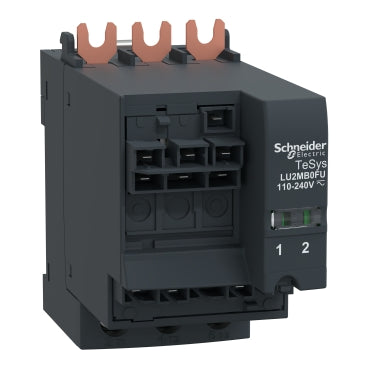

LU2MB0FU | Reverser block for vertical mounting, TeSys Ultra, 38A/690V, coil 110-240VAC/DC | Square D by Schneider Electric

Brand: Square DSKU: LU2MB0FU

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LU2MB0FU

Jump to: Overview & Specifications Reviews

Overview Details for LU2MB0FU

Reverser block for vertical mounting, TeSys Ultra, 38A/690V, coil 110-240VAC/DC

TeSys U reversing module for vertical mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 110-240V AC / 110-220V DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*FU type. To be associated with an assembling connector LU9MR1C and a control terminal block LU9M1 to complete the vertical mounting. Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Device short name: LU2MB
Product or Component Type: Reverser block
Device mounting: Direct mounting
Device Application: Motor control
[Ie] rated operational current: 38 A
[Uc] control circuit voltage: 110...240 V AC 50/60 Hz, 110...220 V DC
current consumption: 1000 mA 110...220 V DC I maximum while closing, 1000 mA 110...240 V AC I maximum while closing
[Ue] rated operational voltage: 690 V AC power circuit
network frequency: 40...60 Hz
inrush restraint duration: 25 ms AC, 15 ms DC
operating time: 150 ms with change of direction, 75 ms without change of direction
standards: EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier
Product Certifications: CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
[Ui] rated insulation voltage: 690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kVIEC 60947-6-2
fixing mode: Plug-in
connections - terminals: Control circuit screw clamp terminals 1 0.00…0.00 in² (0.34…1.5 mm²) 0.12 in (3 mm)) flexible with cable end, Control circuit screw clamp terminals 1 0.00…0.00 in² (0.75…1.5 mm²) 0.12 in (3 mm)) flexible without cable end, Control circuit screw clamp terminals 1 0.00…0.00 in² (0.75…1.5 mm²) 0.12 in (3 mm)) rigid, Control circuit screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²) 0.12 in (3 mm)) flexible with cable end, Control circuit screw clamp terminals 2 0.00…0.00 in² (0.75…1.5 mm²) 0.12 in (3 mm)) flexible without cable end, Control circuit screw clamp terminals 2 0.00…0.00 in² (0.75…1.5 mm²) 0.12 in (3 mm)) rigid, Power circuit screw clamp terminals 1 0.00…0.02 in² (1…10 mm²) 0.16 in (4 mm)) rigid, Power circuit screw clamp terminals 1 0.00…0.01 in² (1…6 mm²) 0.16 in (4 mm)) flexible with cable end, Power circuit screw clamp terminals 1 0.00…0.02 in² (2.5…10 mm²) 0.16 in (4 mm)) flexible without cable end, Power circuit screw clamp terminals 2 0.00…0.01 in² (1…6 mm²) 0.16 in (4 mm)) flexible with cable end, Power circuit screw clamp terminals 2 0.00…0.01 in² (1…6 mm²) 0.16 in (4 mm)) rigid, Power circuit screw clamp terminals 2 0.00…0.01 in² (1.5…6 mm²) 0.16 in (4 mm)) flexible without cable end
tightening torque: Control circuit 7.08…10.62 lbf.in (0.8…1.2 N.m) flat 0.20 in (5 mm), Control circuit 7.08…10.62 lbf.in (0.8…1.2 N.m) Philips No 2 0.20 in (5 mm), Power circuit 16.82…22.13 lbf.in (1.9…2.5 N.m) flat 0.24 in (6 mm), Power circuit 16.82…22.13 lbf.in (1.9…2.5 N.m) Philips No 2 0.24 in (6 mm)
Width: 1.77 in (45 mm)
Height: 3.15 in (80 mm)
Depth: 4.13 in (105 mm)
Net Weight: 0.88 lb(US) (0.4 kg)
Compatibility code: LU2MB
IP degree of protection: IP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces), IP40 IEC 60947-1 front panel outside connection zone)
protective treatment: TH IEC 60068
ambient air temperature for operation: -13…140 °F (-25…60 °C) with LUCM, -13…158 °F (-25…70 °C) with LUCA, LUCB, LUCC, LUCD
ambient air temperature for storage: -40…185 °F (-40…85 °C)
fire resistance: 1760 °F (960 °C) parts supporting live components IEC 60695-2-12, 1202 °F (650 °C) IEC 60695-2-12
operating altitude: 6561.68 ft (2000 m)
shock resistance: 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27
vibration resistance: 2 gn 5…300 Hz) power poles open IEC 60068-2-27, 4 gn 5…300 Hz) power poles closed IEC 60068-2-27
resistance to electrostatic discharge: 8 kV level 3, in open air IEC 61000-4-2, 8 kV level 4, on contact IEC 61000-4-2
resistance to radiated fields: 9.14 V/m (10 V/m) level 3 IEC 61000-4-3
resistance to fast transients: 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
non-dissipating shock wave: 1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2
immunity to radioelectric fields: 10 V IEC 61000-4-6
Category: 22399-TESYS U, ACCESSORIES
Discount Schedule: I11
GTIN: 3389110363807
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.24 in (5.7 cm)
Package 1 Width: 3.74 in (9.5 cm)
Package 1 Length: 5.12 in (13.0 cm)
Package 1 Weight: 13.97 oz (396.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 12
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 11.13 lb(US) (5.048 kg)
Warranty: 18 months
