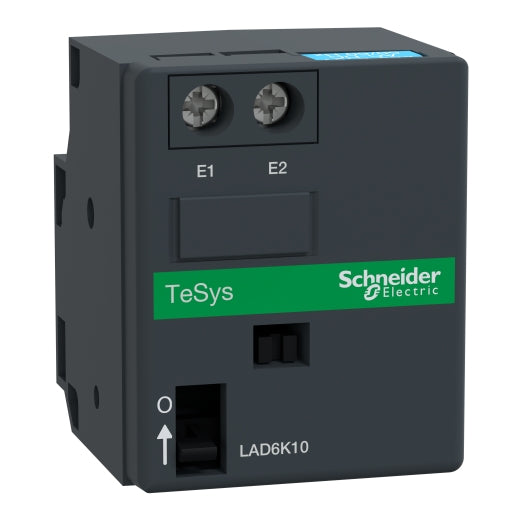

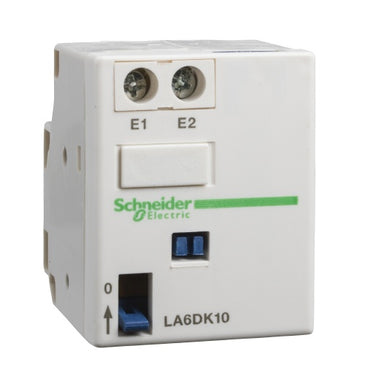

CONTACTOR MECH. LATCH CONTACT BLOCK IEC

TeSys Deca mechanical latch block, for LC1D09-D38, LC1DT20...DT40, LC1D40A...D80A 3P, LC1DT60A...DT80A 4P contactors. Electrical latching and unlatching is performed applying a 110-127V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Product or component type: Mechanical latch block
Product compatibility: LC1D09...D38 AC/DC
LC1DT20...DT40 AC/DC
LC1D40A...D80A 3 phases AC/DC
LC1DT60A 3 phases + neutral AC/DC
LC1DT80A 3 phases + neutral AC/DC
[Uc] control circuit voltage: 110/127 V AC 50/60 Hz
110/127 V DC
Mounting location: Front side
Tripping control: Manual
Electrical
[Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1
Power required in VA: 25 for AC circuit
Power required in W: 30 W for DC circuit
Mechanical durability: 500000 cycles
Maximum operating rate: 1200 cyc/h
On-load factor: 10 %
Net weight: 0.07 kg
product certifications: UL
CSA
IP degree of protection: IP2X conforming to VDE 0106
Protective treatment: TH conforming to IEC 60068
Ambient air temperature for operation: -25…55 °C
Ambient air temperature for storage: -40…80 °C
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.3 cm
Package 1 Width: 6.6 cm
Package 1 Length: 4.8 cm
Package 1 Weight: 99.0 g
Unit Type of Package 2: S01
Number of Units in Package 2: 32
Package 2 Height: 15.0 cm
Package 2 Width: 15.0 cm
Package 2 Length: 40.0 cm
Package 2 Weight: 3.369 kg
Warranty: 18 months
