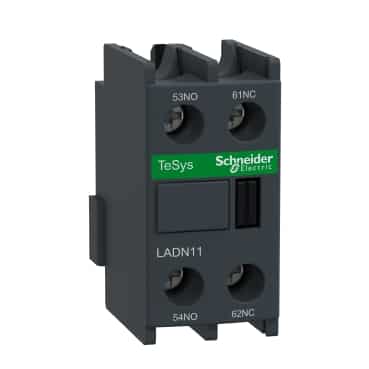

LADN11 | TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors | Square D by Schneider Electric

Brand: Square DSKU: LADN11

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LADN11

Jump to: Overview & Specifications Reviews

Overview Details for LADN11

TeSys Deca, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp terminals, for LC1D09 to LC1D150 contactors

TeSys D contactors have a variety of auxiliary contacts. This auxiliary contact mounts on the top of a contactor with rating from 9 amp to 150 amp. The one NO and one NC contacts can be used in the control circuit. TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for any type of application. TeSys D contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.

Specifications

Range: TeSys, TeSys Deca
Product name: TeSys D, TeSys Deca
Product or Component Type: Auxiliary contact block
Device short name: LADN
range compatibility: TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
Mounting Location: Front
Pole contact composition: 1 NO + 1 NC
Contacts operation: Instantaneous
[Ue] rated operational voltage: 690 V AC 25...400 Hz
[Ie] rated operational current: 6 A120 V AC-15, 1.04 A690 V AC-15, 0.55 A125 V DC-13, 0.1 A600 V DC-13
[Ui] rated insulation voltage: 690 V IEC 60947-5-1, 600 V UL, 600 V CSA
[Ith] conventional free air thermal current: 10 A 140 °F (60 °C)
standards: EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5
Product Certifications: CB, UL, CSA, CCC, EAC, UKCA
Irms rated making capacity: 140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1
permissible short-time rating: 100 A 140 °F (60 °C) 1 s, 120 A 140 °F (60 °C) 500 ms, 140 A 140 °F (60 °C) 100 ms
protection type: GG fuse 10 A
Mechanical durability: 30 Mcycles
minimum switching current: 5 mA
minimum switching voltage: 17 V
non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
insulation resistance: > 10 MOhm
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end, screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end, screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end, screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end, screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)rigid without cable end, screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)rigid without cable end
tightening torque: 15.05 lbf.in (1.7 N.m) flat Ø 6 mm, 15.05 lbf.in (1.7 N.m) Philips No 2, 15.05 lbf.in (1.7 N.m) pozidriv No 2
Height: 1.89 in (48 mm)
Width: 1.02 in (26 mm)
Depth: 1.65 in (42 mm)
color: Dark grey
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
protective treatment: TH IEC 60068
Ambient Air Temperature for Storage: -76…176 °F (-60…80 °C)
Ambient Air Temperature for Operation: 23…140 °F (-5…60 °C)
operating altitude: 9842.52 ft (3000 m)
Category: 22341-CONTACTOR,D,K,&F ACCESS
Discount Schedule: I12
GTIN: 3389110383836
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.18 in (3.000 cm)
Package 1 Width: 1.65 in (4.200 cm)
Package 1 Length: 2.09 in (5.300 cm)
Package 1 Weight: 1.20 oz (34.000 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 1.18 in (3.000 cm)
Package 2 Width: 3.46 in (8.800 cm)
Package 2 Length: 10.08 in (25.600 cm)
Package 2 Weight: 12.28 oz (348.000 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 320
Package 3 Height: 11.81 in (30.000 cm)
Package 3 Width: 11.81 in (30.000 cm)
Package 3 Length: 15.75 in (40.000 cm)
Package 3 Weight: 25.32 lb(US) (11.486 kg)
Warranty: 18 months
