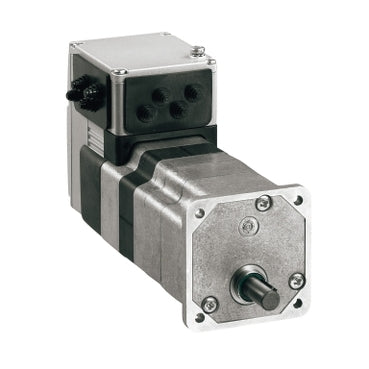

ILE2K661PC1A0 | brushless DC motor, Lexium ILA ILE ILS, 24..48V- EtherNet/IP interface, L = 122mm- w/o gearbox | Square D by Schneider Electric

Brand: Square DSKU: ILE2K661PC1A0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ILE2K661PC1A0

Jump to: Overview & Specifications Reviews

Overview Details for ILE2K661PC1A0

brushless DC motor, Lexium ILA ILE ILS, 24..48V- EtherNet/IP interface, L = 122mm- w/o gearbox

Specifications

Range of Product: Lexium integrated drive
Product or Component Type: Motion integrated drive
Device short name: ILE
Motor Type: Brushless DC motor
Number of motor poles: 6
Phase: Single phase
[Us] rated supply voltage: 24 V, 48 V
Network type: DC
communication interface: Ethernet/IP, Integrated
Length: 4.80 in (122 mm)
Winding type: Medium speed of rotation and medium torque
Electrical Connection: Industrial connector
Holding brake: Without
Gear box type: Without
Reduction ratio: 1:1
nominal speed: 4800 rpm 24 V, 6000 rpm 48 V
nominal torque: 2.30 lbf.in (0.26 N.m) 24 V, 2.30 lbf.in (0.26 N.m) 48 V
Transmission Rate: 125, 250, 500 kbauds
Mounting Support: Flange
Motor flange size: 2.60 in (66 mm)
Number of motor stacks: 1
Centring collar diameter: 1.57 in (40 mm)
Centring collar depth: 0.08 in (2 mm)
Number of mounting holes: 4
Mounting holes diameter: 0.17 in (4.4 mm)
Circle diameter of the mounting holes: 2.90 in (73.54 mm)
Feedback type: BLDC encoder
Shaft end: Untapped
Second shaft: Without second shaft end
Shaft diameter: 0.31 in (8 mm)
Shaft length: 0.98 in (25 mm)
Supply voltage limits: 18…55.2 V
current consumption: 7000 mA peak, 5500 mA maximum continuous
Associated fuse rating: 16 A
commissioning interface: RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Input/output type: 4 signals (each be used as input or output)
Voltage state 0 guaranteed: -3...4.5 V
Voltage state 1 guaranteed: 15...30 V
discrete input current: 10 mA at 24 V on/STO_A safety input, 3 mA at 24 V on/STO_B safety input, 2 mA at 24 V 24 V signal interface
Discrete output voltage: 23...25 V
maximum switching current: 100 mA per output, 200 mA total
Protection Type: Safe torque off, Overload of output voltage, Short circuit of the output voltage
maximum supply current: 0.1 A power stage disabled), 6.8 A 24 V, 3.8 A 48 V
nominal output power: 131 W 24 V, 163 W 48 V
peak stall torque: 3.81 lbf.in (0.43 N.m) 24 V, 3.81 lbf.in (0.43 N.m) 48 V
Continuous stall torque: 2.48 lbf.in (0.28 N.m)
Detent torque: 0.71 lbf.in (0.08 N.m)
speed feedback resolution: 12 points/turn
Accuracy error: +/- 0.5 °
Rotor inertia: 0.17 kg.cm²
Maximum mechanical speed: 7000 rpm, 6500 rpm
maximum radial force Fr: 80 N
maximum axial force Fa: 30 N force pressure), 30 N tensile force)
service life in hours: 20000 h bearing
Marking: CE
Type of cooling: Natural convection
Net Weight: 3.09 lb(US) (1.4 kg)
standards: EN 61800-3 : 2001-02, EN/IEC 50178, EN 61800-3:2001, second environment, IEC 60072-1, IEC 61800-3, Ed 2, EN/IEC 61800-3, EN 50347
Product Certifications: cUL, UL, TÜV
ambient air temperature for operation: 104…131 °F (40…55 °C) with power derating of 2 % per °C), 32…104 °F (0…40 °C) without derating)
permissible ambient air temperature around the device: 221 °F (105 °C) power amplifier, 230 °F (110 °C) motor
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
operating altitude: <= 3280.84 ft (1000 m) without derating
relative humidity: 15…85 % without condensation
vibration resistance: 20 m/s² 10…500 Hz) 10 cycles EN/IEC 60068-2-6
shock resistance: 150 m/s² 1000 shocks EN/IEC 60068-2-29
IP degree of protection: Shaft bushing IP41 EN/IEC 60034-5, Total except shaft bushing IP54 EN/IEC 60034-5
Category: 18288-LEXIUM INTEGRATED DRIVES II
Discount Schedule: PC56
GTIN: 3606485204765
Returnability: No
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.15 in (8.0 cm)
Package 1 Width: 7.28 in (18.5 cm)
Package 1 Length: 14.37 in (36.5 cm)
Package 1 Weight: 3.75 lb(US) (1.7 kg)
Warranty: 18 months
