Documents: BMH2051P11A2A

Datasheet More Info

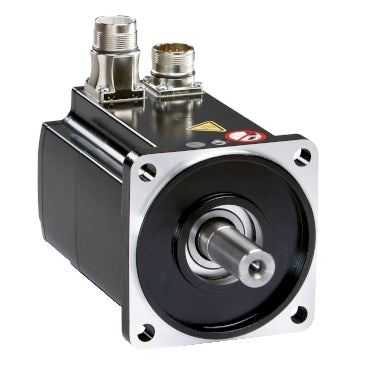

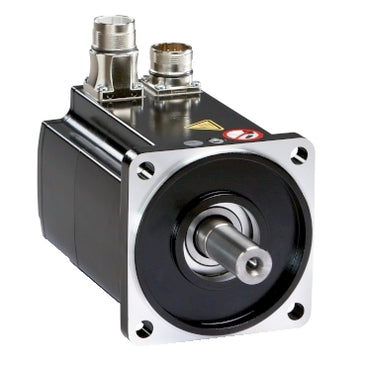

BMH2051P11A2A | servo motor BMH - 34.4 Nm - 3800 rpm - keyed shaft - without brake - IP54 | Square D by Schneider Electric

Brand: Square DSKU: BMH2051P11A2A

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMH2051P11A2A

Jump to: Overview & Specifications Reviews

Overview Details for BMH2051P11A2A

servo motor BMH - 34.4 Nm - 3800 rpm - keyed shaft - without brake - IP54

Specifications

Product or Component Type: Servo motor
Device short name: BMH
Maximum mechanical speed: 3800 rpm
continuous stall torque: 304.47 lbf.in (34.4 N.m) LXM32.D72N4 24 A, 400 V, three phase, 304.47 lbf.in (34.4 N.m) LXM32.D72N4 24 A, 480 V, three phase
peak stall torque: 915.17 lbf.in (103.4 N.m) LXM32.D72N4 24 A, 400 V, three phase, 915.17 lbf.in (103.4 N.m) LXM32.D72N4 24 A, 480 V, three phase
nominal output power: 5400 W LXM32.D72N4 24 A, 400 V, three phase, 5400 W LXM32.D72N4 24 A, 480 V, three phase
nominal torque: 228.35 lbf.in (25.8 N.m) LXM32.D72N4 24 A, 400 V, three phase, 228.35 lbf.in (25.8 N.m) LXM32.D72N4 24 A, 480 V, three phase
nominal speed: 2000 rpm LXM32.D72N4 24 A, 400 V, three phase, 2000 rpm LXM32.D72N4 24 A, 480 V, three phase
product compatibility: LXM32.D72N4 400...480 V three phase
Shaft end: Keyed
IP Degree of Protection: IP54 standard
Speed feedback resolution: 131072 points/turn
Holding brake: Without
Mounting Support: International standard flange
Electrical Connection: Rotatable right-angled connectors
Range Compatibility: Lexium 32
[Us] rated supply voltage: 480 V
Phase: Three phase
Continuous stall current: 21.5 A
Continuous power: 6.8 W
maximum current Irms: 72 A LXM32.D72N4
Maximum permanent current: 78.1 A
Second shaft: Without second shaft end
Shaft diameter: 1.50 in (38 mm)
Shaft length: 3.15 in (80 mm)
Key width: 2.76 in (70 mm)
Feedback type: Single turn SinCos Hiperface
Motor flange size: 8.07 in (205 mm)
Number of motor stacks: 1
back emf constant: 104 V/krpm 248 °F (120 °C)
Number of motor poles: 10
Rotor inertia: 71.4 kg.cm²
stator resistance: 0.3 Ohm 68 °F (20 °C)
stator inductance: 5.9 mH 68 °F (20 °C)
stator electrical time constant: 19.7 ms 68 °F (20 °C)
maximum radial force Fr: 3730 N 1000 rpm, 2960 N 2000 rpm, 2580 N 3000 rpm
Maximum axial force Fa: 0.2 x Fr
Type of cooling: Natural convection
Length: 12.64 in (321 mm)
Centring collar diameter: 7.09 in (180 mm)
Centring collar depth: 0.16 in (4 mm)
Number of mounting holes: 4
Mounting holes diameter: 0.55 in (14 mm)
Circle diameter of the mounting holes: 8.46 in (215 mm)
Net Weight: 72.75 lb(US) (33 kg)
Category: 18282-LEXIUM 32 MOTORS
Discount Schedule: PC53
GTIN: 3606485201696
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 14.17 in (36.0 cm)
Package 1 Width: 12.20 in (31.0 cm)
Package 1 Length: 22.83 in (58.0 cm)
Package 1 Weight: 85.98 lb(US) (39.0 kg)
Warranty: 18 months
