BMH1003P16A2A | servo motor BMH - 8.4 Nm - 6000 rpm - keyed shaft - without brake - IP54 | Square D by Schneider Electric

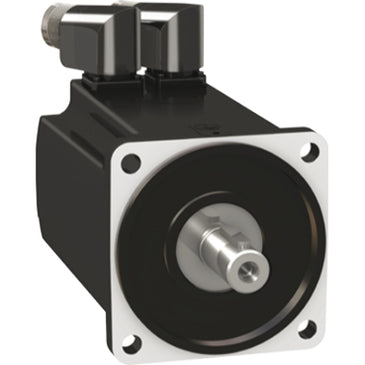

Square D | BMH1003P16A2A
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BMH1003P16A2A

Documents and manuals

Square D BMH1003P16A2A Documents

Overview

Details for BMH1003P16A2A

servo motor BMH - 8.4 Nm - 6000 rpm - keyed shaft - without brake - IP54

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 6000RPM and parallel keyed shaft without holding brake. It is equipped with a SinCos Hiperface® encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 7.69A and a continuous power of 3.3W. The shaft dimensions are 19mm (Diameter) x 40mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP54 rated product. Its dimensions are 192.6mm (Length) x 100mm (Width), centring collar dimensions are 3.5mm (Depth) x 95mm (Diameter) with 115mm circle diameter of the mounting hole. It weighs 6.5kg. This product is compatible with Lexium 32 servo drives. It supports international standard 100mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.

Specifications

Product or Component Type
Servo motor
Device short name
BMH
Maximum mechanical speed
6000 rpm
continuous stall torque
74.35 lbf.in (8.4 N.m) LXM32.D30N4 10 A, 400 V, three phase, 74.35 lbf.in (8.4 N.m) LXM32.D30N4 10 A, 480 V, three phase
peak stall torque
222.15 lbf.in (25.1 N.m) LXM32.D30N4 10 A, 400 V, three phase, 222.15 lbf.in (25.1 N.m) LXM32.D30N4 10 A, 480 V, three phase
nominal output power
2700 W LXM32.D30N4 10 A, 400 V, three phase, 2700 W LXM32.D30N4 10 A, 480 V, three phase
nominal torque
54.87 lbf.in (6.2 N.m) LXM32.D30N4 10 A, 400 V, three phase, 54.87 lbf.in (6.2 N.m) LXM32.D30N4 10 A, 480 V, three phase
nominal speed
4000 rpm LXM32.D30N4 10 A, 400 V, three phase, 4000 rpm LXM32.D30N4 10 A, 480 V, three phase
product compatibility
LXM32.D30N4 400...480 V three phase
Shaft end
Keyed
IP Degree of Protection
IP54 standard
Speed feedback resolution
32768 points/turn
Holding brake
Without
Mounting Support
International standard flange
Electrical Connection
Rotatable right-angled connectors
Range Compatibility
Lexium 32
[Us] rated supply voltage
480 V
Phase
Three phase
Continuous stall current
7.69 A
Continuous power
3.3 W
maximum current Irms
29.1 A LXM32.D30N4
Maximum permanent current
29.1 A
Second shaft
Without second shaft end
Shaft diameter
0.75 in (19 mm)
Shaft length
1.57 in (40 mm)
Key width
1.18 in (30 mm)
Feedback type
Single turn SinCos Hiperface
Motor flange size
3.94 in (100 mm)
Number of motor stacks
3
torque constant
1 N.m/A 248 °F (120 °C)
back emf constant
63.5 V/krpm 248 °F (120 °C)
Number of motor poles
10
Rotor inertia
9.37 kg.cm²
stator resistance
0.63 Ohm 68 °F (20 °C)
stator inductance
4 mH 68 °F (20 °C)
stator electrical time constant
6.3 ms 68 °F (20 °C)
maximum radial force Fr
1050 N 1000 rpm, 830 N 2000 rpm, 730 N 3000 rpm, 660 N 4000 rpm, 610 N 5000 rpm
Maximum axial force Fa
0.2 x Fr
Type of cooling
Natural convection
Length
7.58 in (192.6 mm)
Centring collar diameter
3.74 in (95 mm)
Centring collar depth
0.14 in (3.5 mm)
Number of mounting holes
4
Mounting holes diameter
0.35 in (9 mm)
Circle diameter of the mounting holes
4.53 in (115 mm)
Net Weight
14.33 lb(US) (6.5 kg)
Category
18282-LEXIUM 32 MOTORS
Discount Schedule
PC53
GTIN
3606485196596
Returnability
No
Country of origin
DE
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.68 in (19.5 cm)
Package 1 Width
8.46 in (21.5 cm)
Package 1 Length
15.94 in (40.5 cm)
Package 1 Weight
16.97 lb(US) (7.698 kg)
Unit Type of Package 2
P06
Number of Units in Package 2
12
Package 2 Height
29.53 in (75.0 cm)
Package 2 Width
23.62 in (60.0 cm)
Package 2 Length
31.50 in (80.0 cm)
Package 2 Weight
222.39 lb(US) (100.876 kg)
Warranty
18 months
