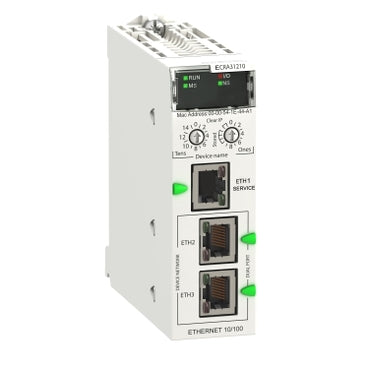

BMECRA31210C | EIO drop adapter, Modicon X80, with Ethernet backplane, coated | Square D by Schneider Electric

Brand: Square DSKU: BMECRA31210C

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMECRA31210C

Jump to: Overview & Specifications Reviews

Overview Details for BMECRA31210C

EIO drop adapter, Modicon X80, with Ethernet backplane, coated

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 3 ports with Ethernet backplane coated. Integrated connections are EtherNet/IP for device network and EtherNet/IP for service port. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with multifunction input module BMXERT, Ethernet module BMXNOM, counter module BMXEHC, 0 to 1024 discrete channels, 0 to 256 analogue channels, HART module BMEAH and weighing module PMESWT. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Range of Product: Modicon X80
Range Compatibility: Modicon M580
Product or Component Type: I/O expansion module
Device Application: X80 Ethernet RIO drop adaptor
Product Specific Application: For remote I/O modules
bus type: Bus X across the remote backplane, Ethernet across the remote backplane
Number of port: 3
integrated connection type: 1 port service or distributed equipment, 2 port Ethernet RIO Network (RSTP)
Communication Network Type: IPv4 (internet protocol)
communication port protocol: EtherNet/IP
Communication Service: Ethernet/IP adapter, RSTP (Ring topology support), Ethernet RIO network, Quality of Service (QoS), CIP Explicit messaging (server), Modbus TCP server for module diagnostics, DHCP client, TFTP client, FTP client, FDR client, NTP client, SNTP client, SNMP agent
Cybersecurity: Enable/disable communication ports, Syslog protocol support
Connector Type: 3 RJ45
Exchange mode: Half duplex, full duplex, autonegotiation, auto MDIX
Transmission Rate: 10/100 Mbit/s
Port Ethernet: 10/100BASE-TX
Function Available: CCOTF (configuration change on the fly), Input data is collected and published to the remote I/O head adaptor, Output modules are updated with the data received from remote I/O head adaptor, Diagnostics for remote I/O devices (Device DDT), Port mirroring, System time stamping, Non-interfering type 1, I/O extension rack
Data recording: 10 ms time stamps
Topology: Ring
local signalling: for module active (RUN) 1 LED (green), for module error (ERR) 1 LED (red), for module status (Mod Status) 1 LED (green/red), for network communication status (Net Status) 1 LED (green/red), for Ethernet link diagnostics (STS) 1 LED (green)
Current Consumption: 1800 mA
input voltage: 3.3 V DC
product compatibility: 0…1024 discrete channel, 0…256 analog channel, counter module, time-stamping module, SSI encoder interface module, motion control module, frequency input module, AS-Interface module, serial link module, fiber converter modules, HART module, weighing module, CANopen master module (standalone CPU only), PROFIBUS module (standalone CPU only), Ethernet switch module
Module format: Standard
Net Weight: 0.50 lb(US) (0.225 kg)
Maximum altitude transport: 9842.52 ft (3000 m)
Relative Humidity: 95 % without condensation
Fixing Mode: By screws
Mounting Mode: Rack-mounted
Width: 1.26 in (32 mm)
Height: 3.94 in (100 mm)
Depth: 3.44 in (87.5 mm)
Protective treatment: Conformal coating
Directives: 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
product certifications: CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22, Hazardous location class 1, division 2
standards: EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0, UL 121201, CSA C22.2 No 213
environmental characteristic: Gas resistant class Gx ISA S71.04, Gas resistant class 3C4 IEC 60721-3-3, Dust resistant class 3S4 IEC 60721-3-3, Sand resistant class 3S4 IEC 60721-3-3, Salt resistant level 2 IEC 68252, Mold growth resistant class 3B2 IEC 60721-3-3, Fungal spore resistant class 3B2 IEC 60721-3-3
IP Degree of Protection: IP20
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
operating altitude: <= 6561.68 ft (2000 m)
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3595864174020
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.17 in (5.5 cm)
Package 1 Width: 4.33 in (11.0 cm)
Package 1 Length: 4.53 in (11.5 cm)
Package 1 Weight: 9.52 oz (270.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 15
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 9.62 lb(US) (4.362 kg)
