9999SC22 | NEMA Motor Starter and contactor, Type S, on/off selector switch kit, NEMA 1 | Square D by Schneider Electric

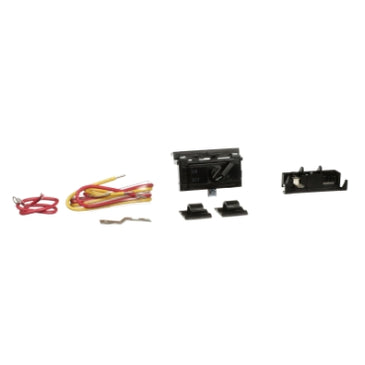

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9999SC22

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D 9999SC22 Documents

Datasheet More Info

Overview

Details for 9999SC22

NEMA Motor Starter and contactor, Type S, on/off selector switch kit, NEMA 1

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This On Off selector switch kit is for NEMA size 00 through 3 Type S contactors and starters or 8903SM or 8903SP lighting contactors in NEMA 1 enclosure. The selector switch is mounted into the knockout in the enclosure cover. This selector switch kit is UL listed and CSA certified.

Specifications

Product Range: Type S
Component type: Selector switch
Used with: contactor, starter
NEMA size: 00, 0, 2, 1, 3
Marking: ON-OFF
Mounting Mode: Panel-mounted
rated breaking capacity: 3 A 120 V AC inductive control circuit UL 508, 1.5 A 240 V AC inductive control circuit UL 508, 0.6 A 600 V AC inductive control circuit UL 508, 5 A 600 V AC resistive control circuit UL 508
NEMA Degree of Protection: NEMA 1
Product Certifications: UL Listed, CSA, UL Recognized
Category: 21761-9999 DISCOUNT CP1
Discount Schedule: CP1
GTIN: 785901783022
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.09 in (5.3 cm)
Package 1 Width: 3.90 in (9.9 cm)
Package 1 Length: 5.91 in (15.0 cm)
Package 1 Weight: 8.16 oz (231.3 g)
Warranty: 18 months
