SLASXXX | SmartX Temperature Sensor, Resistive 10K Type 3 Thermistor, Blank, with Matte White Cover | Schneider Electric

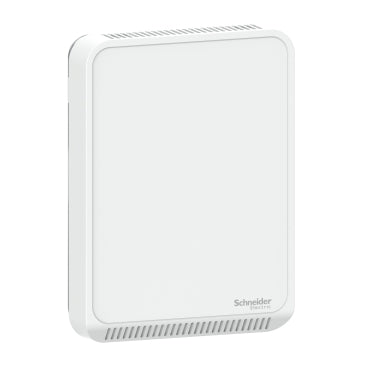

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLASXXX

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric SLASXXX Documents

Datasheet

Overview

Details for SLASXXX

SmartX Temperature Sensor, Resistive 10K Type 3 Thermistor, Blank, with Matte White Cover

SLA Series Living Space Resistive Temperature Sensors offer a reliable 10K Type 3 thermistor and the same look and feel as communicating SmartX sensors. The SLA Series sensors provide a low cost option for measuring temperature in a living space application.

Specifications

Product or Component Type: Sensor
Type of Measurement: Temperature
Device Application: HVAC;Temperature control
Flame Retardance: UL94-V0
IP Degree of Protection: IP20
Location: Living Space
Depth: 0.94 in (24 mm)
Height: 4.53 in (115 mm)
Width: 3.35 in (85 mm)
Standards: UL 916;FCC Part 15 class B
Color: White
Ambient Air Temperature for Operation: 32…122 °F (0…50 °C)
Relative Humidity: 0…95 %
Sensor Type: 10 kOhm T3 thermistor
product name: SmartX Living Space Sensor
Surface Finish: Matte
range: SpaceLogic
device presentation: Complete product
connections - terminals: Screw - 2 AWG 24...AWG 18)
range compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Material: ABS (acrylonitrile butadiene-styrene)
display type: Without Display
communication port protocol: - - 2 wires
measurement range: 0...50 °C temperature
product certifications: CE EN 61000-6-3;RCM;EAC;ICES-003
GTIN: 3606481817952
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.89 in (4.8 cm)
Package 1 Width: 3.82 in (9.7 cm)
Package 1 Length: 5.59 in (14.2 cm)
Package 1 Weight: 4.87 oz (138 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 20
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 6.08 lb(US) (2.76 kg)
