M323A01 | SmartX, Ball Valve Actuator, Proportional, Spring Return Close, 24 VAC, 10FT Plenum Cable, NEMA 2 | Schneider Electric

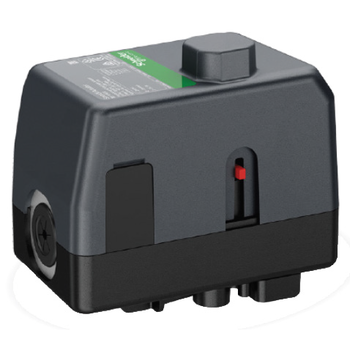

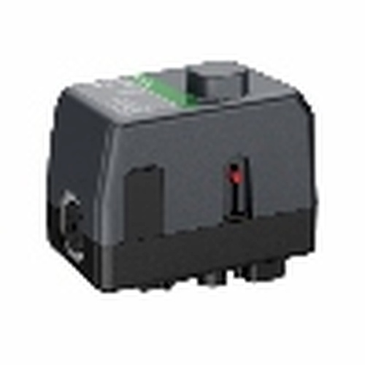

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to M323A01

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric M323A01 Documents

More Info

Overview

Details for M323A01

SmartX, Ball Valve Actuator, Proportional, Spring Return Close, 24 VAC, 10FT Plenum Cable, NEMA 2

Actuator: (M323A01):

Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC
Loss of Power Type: Spring Return
Power Input Voltage: 24 VAC
Leads and Connections: 10 ft Plenum
Mechanical Movement: Rotary
Protection Rating: NEMA 2
Product Line: Schneider Electric
Product Range: SmartX Actuator
Product Series: M323
Actuator Use: Ball Valves

The VBB and VBS Series valves with SmartX Actuators are 2-Way or 3-Way, 1/2" or 3/4", characterized ball valves. The M3 and M2 SmartX Actuators are direct coupled to the VBB/VBS Series valves and accept two-position, floating or proportional control signals from a DDC system, controller, or thermostat for control of hot or chilled water, or solutions of up to 60% glycol. Typical applications include VAV reheat, fan coil units, hot and chilled water coils in air handling units, heat pumps and unit ventilators.
