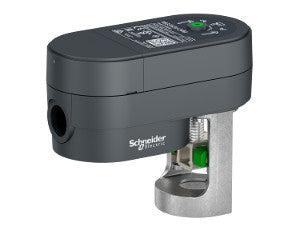

MG350V-24M | SmartX, Globe Valve Actuator, proportional, non-spring return, 24 Vac/Vdc, 78 lbf, LED status indicator, NEMA 2 | Schneider Electric

SmartX, Globe Valve Actuator, proportional, non-spring return, 24 Vac/Vdc, 78 lbf, LED status indicator, NEMA 2

Actuator: (MG350V-24M):

• Actuator Type: Electric
• Control Signal: Modulating
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC
• Loss of Power Type: Non-Spring Return
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Force: 78 lbf
• Mechanical Movement: Linear
• Additional Features: LED Status Indicator
• Protection Rating: NEMA 2
• Product Line: Schneider Electric
• Product Range: SmartX Actuator
• Product Series: MG350V
• Actuator Use: Globe Valves

Product Alert: Field selectable. The 2 to 10 VDC output signal range also includes an alarm signal. MG350V globe valve actuators are non-spring return electromechanical actuators for the control of two-way and three-way globe valves for fan coils, unit ventilators, reheat, cooling units, perimeter heating, and other applications. Proportional, Floating, and Pulse Width Modulated (PWM) models are available for direct mounting on 1/2" … 2" VB-7000 globe valves. The MG350V actuators are also compatible with older field-installed 1/2" … 1-1/4" VB-9000 globe valves as well as other valves (with the addition of AV-800 Globe Valve Adapters).
