VSUS-631C-556D-L-14 | VB: 4 in, 3W Mix/Div, BFV, FLG, Under, FE, 841 cv, 50 PSI; Act (2x MS41-7153-502): Elec, Prop, SR, NO, 24 VAC/22-30 VDC, App, 133 in-lb, SPDT | Schneider Electric

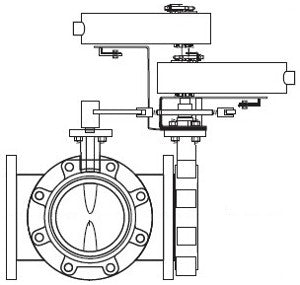

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VSUS-631C-556D-L-14
Overview
Details for VSUS-631C-556D-L-14
VB: 4 in, 3W Mix/Div, BFV, FLG, Under, FE, 841 cv, 50 PSI; Act (2x MS41-7153-502): Elec, Prop, SR, NO, 24 VAC/22-30 VDC, App, 133 in-lb, SPDT
Valve Assembly:- Body Size: 4 in
- Configuration: 3-Way Mixing/Diverting
- Type: Butterfly
- Connection: Flanged
- Body Style: Lug
- Disc Shape: Undercut
- Material Disc: Ductile Iron - Nylon 11 Coated
- Flow Coefficient: 841 cv
- Close-Off Pressure: 50 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally open
- Power Input Voltage: 24 VAC or 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Torque: 133 in-lb
- Mechanical Movement: Rotary
- Auxiliary Switch: 2 SPDT
- Additional Features: Dual actuator
- Protection Rating: NEMA 1, NEMA 2
- Valve Body: VBU-6307-0-L-14
- Valve Linkage: Included with assembly
- Actuator: MS41-7153+MS41-7153-502
- Actuator Range: SmartX Actuator
- Actuator Comment: NEMA 1 (IEC IP30). NEMA 2 (IEC IP54) with conduit connector in the down position.
Product Alert: Not for use with steam.
Specifications
Item Number | VSUS-631C-556D-L-14 |
Brand | Schneider Electric |
