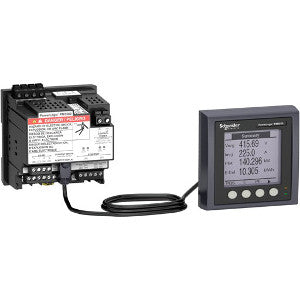

PM5563 powermeter w 1mod2eth - upto 63th H - 1,1M 4DI/2DO 52alarms - w r display

The PowerLogic PM5000 series power meters are the new benchmark in affordable, precision metering. It is the ideal fit for high-end cost management applications, providing the measurement capabilities needed to allocate energy. The PM5563 provides basic metering with class 0.2S accuracy + 4DI/2DO + data logging + multi tariff + dual Ethernet & serial comms Modbus & BACnet/IP+ 4th CT input + gateway + internal web server - DIN rail meter, no display usage, perform tenant metering and sub-billing, pin-point energy savings, optimize equipment efficiency and utilization, and perform a high level assessment of the power quality in an electrical network. This device is a DIN-mount energy meter with an additional 96mm by 96mm backlit LCD remote display. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 63rd Harmonic. Include 1.1 MegaBytes of memory for up to 14 selectable parameters with configurable interval and duration. This meter also feature the direct monitoring of neutral current. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 480 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20 to 690 VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 45 to 65 Hz. Communication protocol are Modbus RTU and ASCII 2 wires with RS485 port support plus Modbus TCP/IP, Ethernet/IP and BACnet/IP based on 10/100 Mbit/s, daisy chain Ethernet with RJ45 port support. The embedded communication capabilities allow the support of the DNP 3.0 protocol, the access to an onboard web server and a Serial to Ethernet gateway. The meter also has four digital inputs with WAGES support and two digital outputs. There are 52 configurable alarms and it supports eight tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 3.03 inches (77 millimetres), height 3.78 inches (96 millimetres) and product weight 15.9 onces (450 g).

Specifications

range
PowerLogic
product name
PowerLogic PM5000
device short name
PM5563
Product or Component Type
Power meter
power quality analysis
up to the 63rd harmonic
metering type
Measured neutral current;Calculated ground current
Device Application
Gateway;Power monitoring;WAGES metering;Multi-tariff
type of measurement
Current;Voltage;Frequency;Power factor;Energy;Active and reactive power
supply voltage
100...300 V DC;90...528 V AC 45...65 Hz
Network Frequency
50 Hz;60 Hz
Line Rated Current
1 A;5 A
type of network
1P + N;3P;3P + N
maximum power consumption in VA
16 VA 480 V
ride-through time
35 ms 120 V AC typical;129 ms 230 V AC typical;50 ms 125 V DC typical
Display Type
Remote LCD display
Display Resolution
128 x 128 pixels
sampling rate
128 samples/cycle
measurement current
50…10000 mA
analogue input type
voltage 5 MOhm);current <= 0.3 mOhm)
measurement voltage
20…400 V AC 45...65 Hz between phase and neutral;20…828 V AC 45...65 Hz between phases
frequency measurement range
45…65 Hz
number of inputs
4 digital
measurement accuracy
Apparent power +/- 0.5 %;Frequency +/- 0.05 %;Active energy +/- 0.2 %;Reactive energy +/- 1 %;Active power +/- 0.2 %;Voltage +/- 0.1 %;Power factor +/- 0.005;Current +/- 0.15 %;Reactive power +/- 1 %
accuracy class
Class 0.2S active energy IEC 62053-22
Number of Outputs
2 digital
information displayed
Tariff 8)
communication port protocol
Modbus RTU and ASCII 9.6;19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V;JBUS;Modbus TCP/IP 10/100 Mbit/s 2500 V;Ethernet Modbus TCP/IP daisy chain;BACnet IP;DNP3 over ethernet
communication port support
RS485;ETHERNET
communication gateway
Ethernet/serial
data recording
Time stamping;Data logs;Maintenance logs;Event logs;Alarm logs;Min/max of instantaneous values
memory capacity
1.1 MB
web services
Diagnostic via predefined web pages;Real time viewing of data;Web server;Alarm notification by e-mail
Ethernet service
SNTP client;SNMP-Traps
connections - terminals
Voltage circuit screw terminal block4;Control circuit screw terminal block2;Current transformer screw terminal block6;RS485 link screw terminal block4;Digital input screw terminal block8;Digital output screw terminal block4;Ethernet network RJ45 connector2
Mounting Mode
Clip-on
mounting support
DIN rail
Standards
EN 50470-3;EN 50470-1;IEC 62053-22;IEC 60529;UL 61010-1;IEC 62053-24;IEC 61557-12;ANSI C12.20
product certifications
CE IEC 61010-1;CULus UL 61010-1;BTL
Width
3.78 in (96 mm)
depth
2.83 in (72 mm)
Height
3.78 in (96 mm)
Net Weight
15.87 oz (450 g)
electromagnetic compatibility
Limits for harmonic current emissionsclass A IEC 61000-3-2;Conducted RF disturbanceslevel 3 IEC 61000-4-6;Magnetic field at power frequencylevel 4 IEC 61000-4-8;Conducted and radiated emissionsclass B EN 55022;Limitation of voltage changes;voltage fluctuations and flicker in low-voltage IEC 61000-3-3;Electrostatic discharge 8 kVlevel 4 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test IEC 61000-4-3;Electrical fast transient/burst immunity testlevel 4 IEC 61000-4-4;Surge immunity testlevel 4 IEC 61000-4-5;Voltage dips and interruptions immunity test IEC 61000-4-11
IP degree of protection
Display IP54 IEC 60529;Rear IP30 IEC 60529
relative humidity
5…95 % 122 °F (50 °C) non-condensing
pollution degree
2
ambient air temperature for operation
-13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
operating altitude
<= 9842.52 ft (3000 m)
Category
09777-POWERLOGIC PM5000 HARDWARE
Discount Schedule
PL1
GTIN
3606480761416
Returnability
Yes
Country of origin
IN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.98 in (15.2 cm)
Package 1 Width
4.84 in (12.3 cm)
Package 1 Length
6.77 in (17.2 cm)
Package 1 Weight
35.13 oz (996.0 g)
