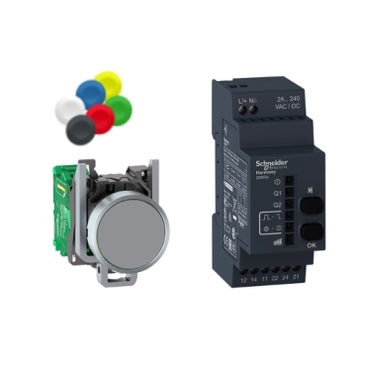

XB4RFA02 | Wireless push button and configurable receiver with 10 colored caps, metal, Dia22, 24...240 V AC/DC | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XB4RFA02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D XB4RFA02 Documents

Datasheet

Overview

Details for XB4RFA02

Wireless push button and configurable receiver with 10 colored caps, metal, Dia22, 24...240 V AC/DC

This Harmony XB4 flush wireless and batteryless push button and receiver unit set is supplied with a set of 10 colored caps and uses a 24V to 240V AC input. It has a metal bezel. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes. The button is easily installed into standard 22mm diameter panel cut-outs, while the receiver is DIN rail mountable.

Specifications

Range of Product: Harmony XB4R
Product or Component Type: Wireless and batteryless package
device short name: XB4R
head material: Metal
frequency: 2405 MHz transmitter;2405 MHz receiver
emission class: 5M00G7W
antenna type: Omnidirectional
control type: Wireless and batteryless push-button Ø 22 mm assembled on fixing collar
type of receiver: Programmable receiver 2 relays)
[Us] Rated Supply Voltage: 24...240 V AC/DC 50/60 Hz
kit composition: 1 0.87 in (22 mm);1 push-button head 0.87 in (22 mm);1 receiver;1 set of caps;1 fixing collars;1 transmitter
status LED: 1 LED Green power ON;2 LEDs Green relay ON;2 LEDs Green function mode;1 LED green and yellow reception signal
communication port protocol: Zigbee IEEE 802.15.4
max power consumption in W: 1 mW
Number of Channels: 1
Modulation technique: O-QPSK
bandwidth: 5 MHz
antenna gain: 0 dBi
customizable: No
compatibility code: XB4R
[Us] rated supply voltage: 24...240 V
Product Certifications: GOST;CCC;CSA;UL;C-tick
Marking: CE
Standards: EN/IEC 60947-1;EN/IEC 60947-5-1;CSA C22.2 No 14;UL 508
radio agreement: ANATEL;FCC;RSS;ARIB T66;ICASA;SRRC
Category: 22470-XB5R WIRELESS PUSH BUTTON
Discount Schedule: I
GTIN: 3606480436031
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.62 in (9.2 cm)
Package 1 Width: 4.13 in (10.5 cm)
Package 1 Length: 4.25 in (10.8 cm)
Package 1 Weight: 9.31 oz (264 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 16
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 10.37 lb(US) (4.702 kg)
Warranty: 18 months
