LADR2 | TeSys D Time Delay Auxiliary Contact Block, 1 NO + 1 NC, Screw Clamp Terminals, 690V AC 25-400 Hz | Square D
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LADR2
Overview
Details for LADR2

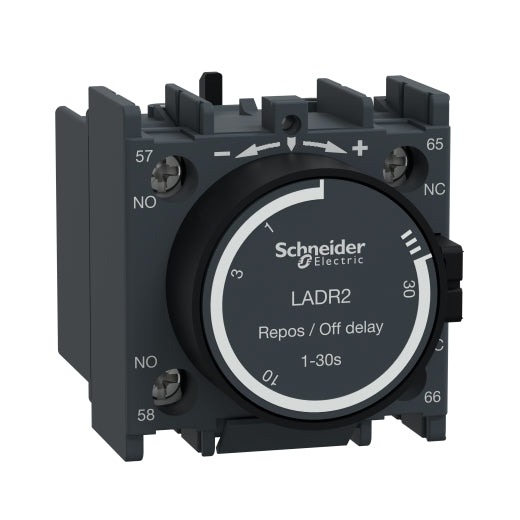

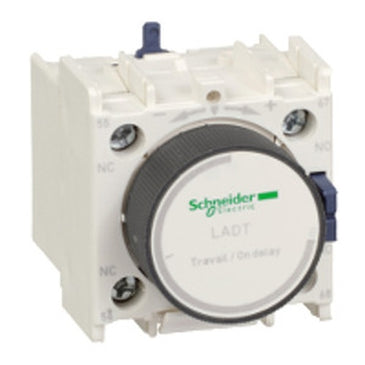

TeSys D Time Delay Auxiliary Contact Block, 1 NO + 1 NC, Screw Clamp Terminals, 690V AC 25-400 Hz
TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 1-30s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).Specifications
- Range
- TeSys
TeSys Deca - Product name
- TeSys Deca
- Product or component type
- Time delay auxiliary contact block
- Range compatibility
- TeSys Deca CAD
TeSys Deca LC1D
TeSys F LC1F
TeSys F CR1F - Mounting location
- Front
- Pole contact composition
- 1 NO + 1 NC
- Contacts operation
- Time delay
- Timer type
- Off delay
- Time delay range
- 1...30 s
- [Ue] rated operational voltage
- 690 V AC 25...400 Hz
- [Ie] rated operational current
- 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13 - [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
600 V conforming to UL 60947-5-1
600 V conforming to CSA C22.2 No 60947-5-1 - [Ith] conventional free air thermal current
- 10 A (at 60 °C)
- Standards
- CSA C22.2 No 60947-5-1
GB/T 14048.5
EN/IEC 60947-5-1 - product certifications
- IECEE CB Scheme
UL
CSA
CCC
EAC
UKCA - Irms rated making capacity
- 140 A at <= 690 V AC conforming to IEC 60947-5-1
250 A at <= 690 V DC conforming to IEC 60947-5-1 - Permissible short-time rating
- 100 A 60 °C 1 s
120 A 60 °C 500 ms
140 A 60 °C 100 ms - Protection type
- GG fuse 10 A
- Mechanical durability
- 5 Mcycles
- Minimum switching current
- 5 mA
- Minimum switching voltage
- 17 V
- Non-overlap time
- 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact - Insulation resistance
- > 10 MOhm
- Connections - terminals
- Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…2.5 mm²rigid
Screw clamp terminals 2 cable(s) 1…2.5 mm²rigid
Screw clamp terminals - Tightening torque
- 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2 - Height
- 48 mm
- Width
- 44 mm
- Depth
- 61 mm
- Colour
- Dark grey
- Environmental characteristic
- Normal environment
- IP degree of protection
- IP20 conforming to IEC 60529
- Protective treatment
- TH conforming to IEC 60068
- Ambient air temperature for storage
- -60…80 °C
- Ambient air temperature for operation
- -40…70 °C
- Operating altitude
- 3000 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.200 cm
- Package 1 Width
- 6.500 cm
- Package 1 Length
- 5.000 cm
- Package 1 Weight
- 74.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 5.200 cm
- Package 2 Width
- 13.000 cm
- Package 2 Length
- 24.000 cm
- Package 2 Weight
- 756.000 g
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 140
- Package 3 Height
- 30.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 11.121 kg
