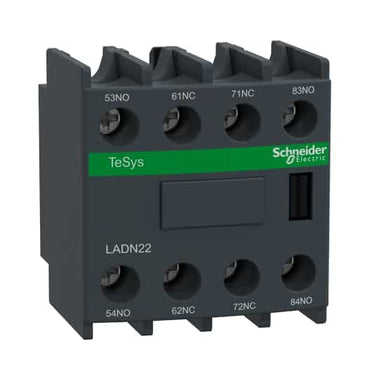

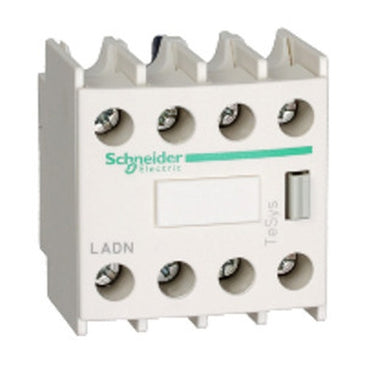

Standard, Instantaneous Auxiliary Contact Block: 4 contacts, 2 N.O, 2 N.C., Snap-On Mounting, For use with TySys D & F Contactor
TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).Specifications
- Range
- TeSys
TeSys Deca - Product name
- TeSys Deca
- Product or component type
- Auxiliary contact block
- device short name
- LADN
- Range compatibility
- TeSys D CAD
TeSys D LC1D
TeSys F LC1F
TeSys F CR1F
TeSys Deca CAD
TeSys Deca LC1D - Mounting location
- Front
- Pole contact composition
- 2 NO + 2 NC
- Contacts operation
- Instantaneous
- [Ue] rated operational voltage
- 690 V AC 25...400 Hz
- [Ie] rated operational current
- 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13 - [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA - [Ith] conventional free air thermal current
- 10 A (at 60 °C)
- Standards
- EN/IEC 60947-5-1
GB/T 14048.5 - product certifications
- CB
UL
CSA
CCC
UKCA - Irms rated making capacity
- 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1 - Permissible short-time rating
- 100 A 60 °C 1 s
120 A 60 °C 500 ms
140 A 60 °C 100 ms - Protection type
- GG fuse 10 A
- Mechanical durability
- 30 Mcycles
- Minimum switching current
- 5 mA
- Minimum switching voltage
- 17 V
- Non-overlap time
- 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact - Insulation resistance
- > 10 MOhm
- Connections - terminals
- Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end - Tightening torque
- 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2 - Height
- 48 mm
- Width
- 44 mm
- Depth
- 42 mm
- Net weight
- 0.05 kg
- Colour
- Dark grey
- Environmental characteristic
- Normal environment
- IP degree of protection
- IP20 conforming to IEC 60529
- Protective treatment
- TH conforming to IEC 60068
- Ambient air temperature for storage
- -60…80 °C
- Ambient air temperature for operation
- -5…60 °C
- Operating altitude
- 3000 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 5.000 cm
- Package 1 Length
- 4.400 cm
- Package 1 Weight
- 62.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 160
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 10.470 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 1280
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 91.760 kg
